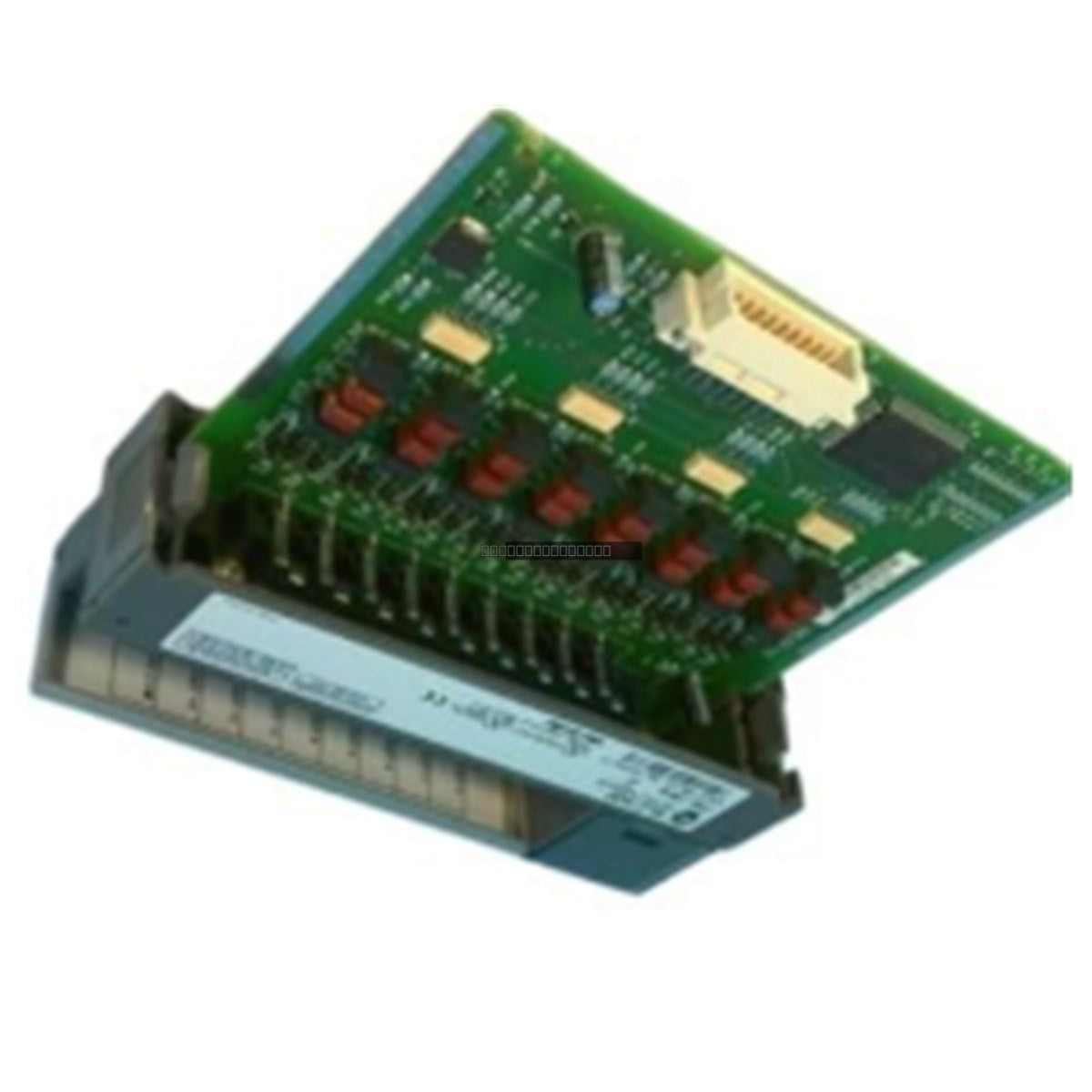

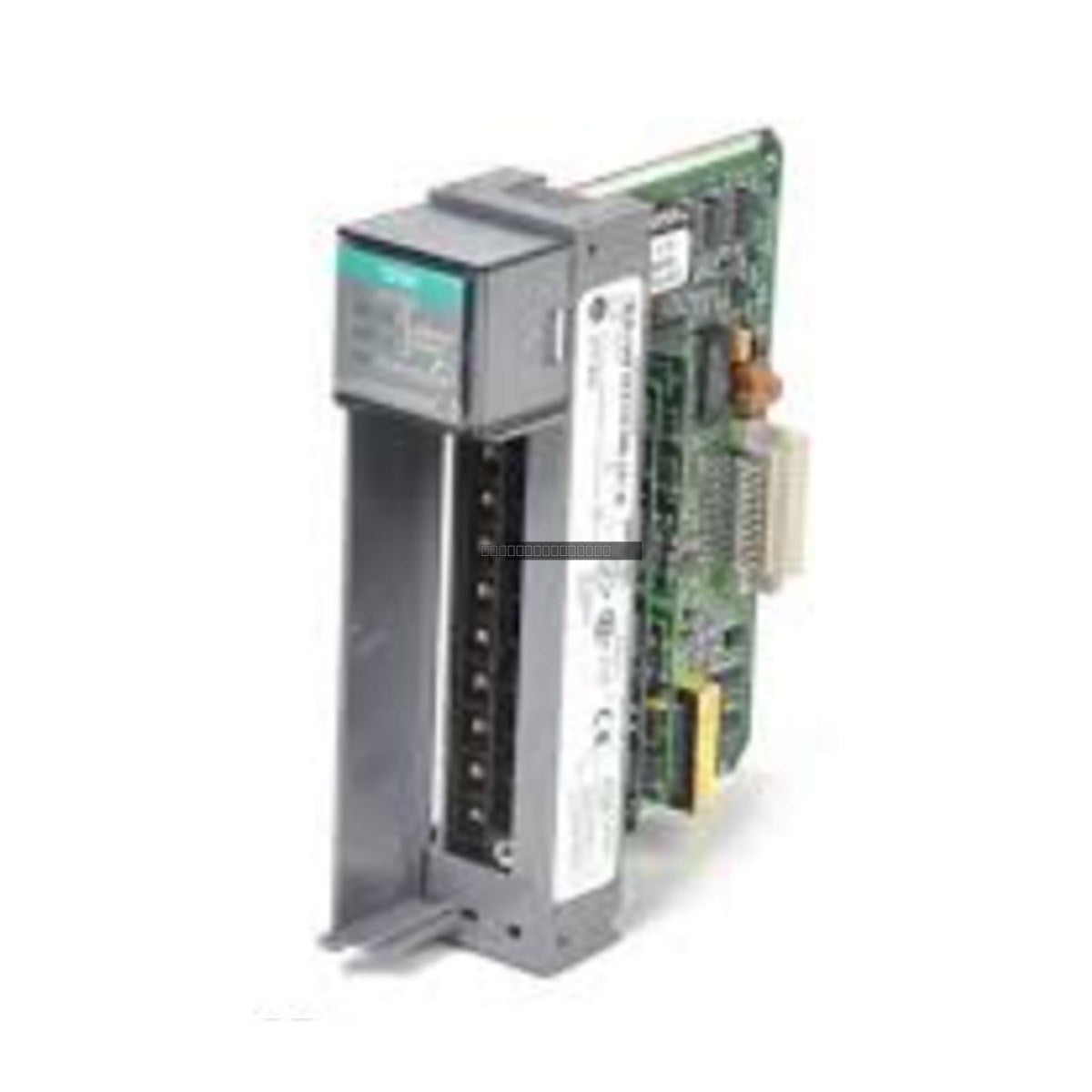

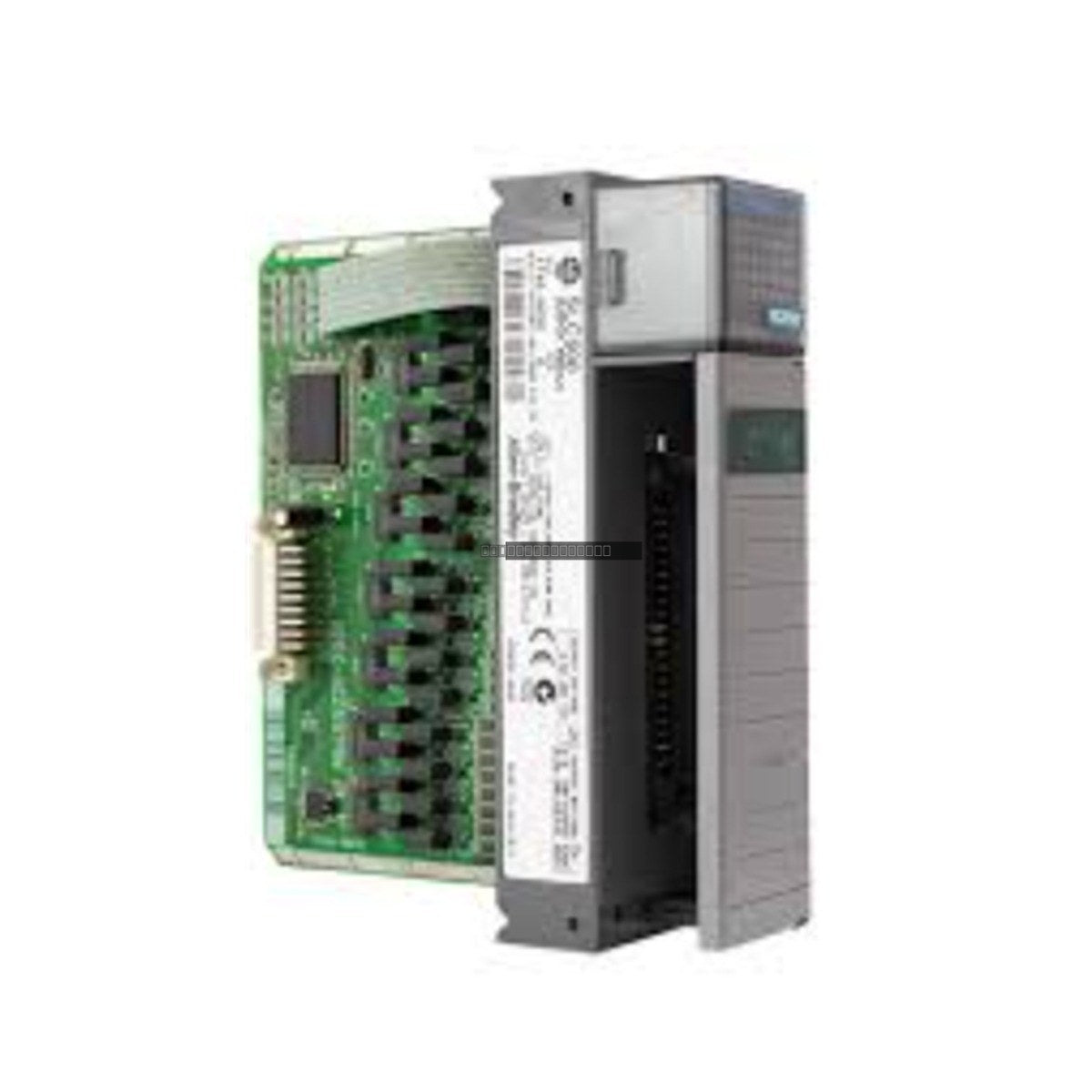

The Allen-Bradley 1746-NI4 is a high-performance analog input module designed for the SLC 500 programmable logic controller system. This module provides four differential input channels, allowing for precise monitoring of analog signals in industrial automation environments. It is engineered to integrate seamlessly into the SLC 500 rack system, providing reliable data acquisition for various process control applications.
Features
Four differential analog input channels for noise immunity and signal integrity.
Designed specifically for the Allen-Bradley SLC 500 platform.
Rack-mounted design for efficient panel space utilization.
Supports standard analog signal ranges for industrial instrumentation.
Applications
The 1746-NI4 is commonly utilized in industrial control systems for monitoring process variables such as temperature, pressure, flow, and level. It is suitable for applications requiring high-resolution analog-to-digital conversion within manufacturing, water treatment, and energy management sectors.
Technical Specifications
Product Model
1746-NI4
Module Type
Analog Input Module
Channel Count
4 Differential Inputs
System Compatibility
SLC 500
Mounting
SLC 500 Rack
Manufacturer
Allen-Bradley
Installation Guidelines
Ensure the SLC 500 rack power is disconnected before installing or removing the module to prevent electrical damage.
Slide the module into the designated slot in the SLC 500 chassis and secure it using the integrated locking tabs.
Use shielded twisted-pair cabling for analog signal inputs to minimize electromagnetic interference (EMI).
Ensure proper grounding of the cable shields at the signal source or the module end, following standard industrial grounding practices.
Keep signal wiring separated from high-voltage power lines to prevent signal noise and crosstalk.
Verify that the module is firmly seated in the backplane connector before applying power.
FAQ
What is the primary function of the 1746-NI4?
The 1746-NI4 is an analog input module that converts analog signals from field devices into digital data that the SLC 500 processor can interpret for control logic.
Is this module compatible with all SLC 500 chassis?
Yes, the 1746-NI4 is designed to be compatible with standard SLC 500 I/O chassis. Always verify your specific chassis power supply capacity before adding modules.
