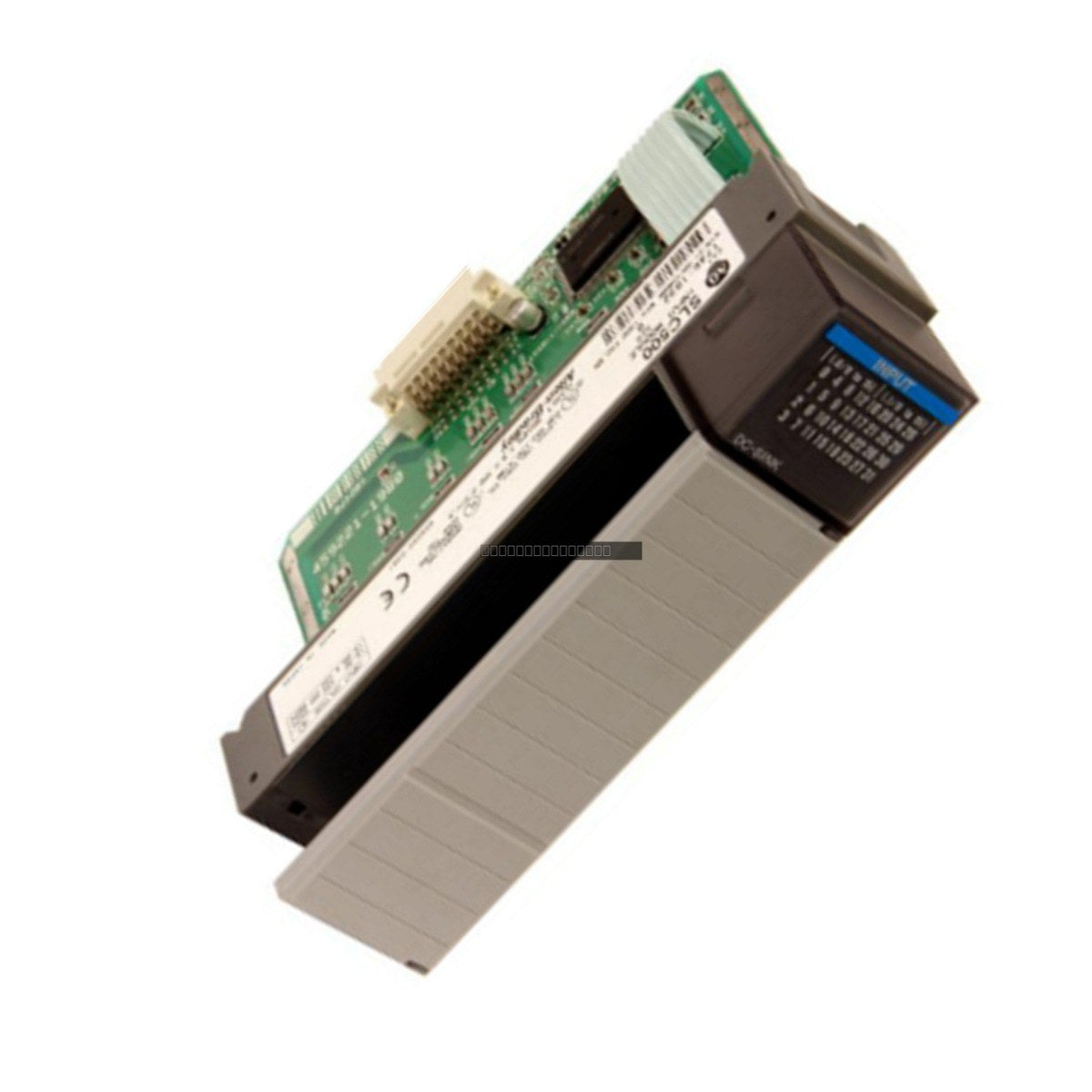

The Allen-Bradley 1746-IC16 is a 16-point digital input module designed for use within the SLC 500 programmable logic controller system. This module provides a reliable interface for monitoring 48V AC/DC digital signals from field devices, such as limit switches, pushbuttons, and proximity sensors, converting them into logic-level signals for the processor.
Features
16 discrete input points for high-density signal monitoring.
Compatible with the Allen-Bradley SLC 500 I/O chassis.
Designed for 48V AC/DC input signal voltage levels.
Status indicators for each input channel to facilitate quick troubleshooting and diagnostic monitoring.
Robust industrial design suitable for standard control cabinet environments.
Applications
This module is commonly utilized in industrial automation applications requiring the integration of 48V signal levels into an SLC 500 control architecture. It is suitable for manufacturing, material handling, and process control systems where discrete signal acquisition is required.
Technical Specifications
Product Model
1746-IC16
Manufacturer
Allen-Bradley
System Compatibility
SLC 500
Input Points
16
Input Voltage
48V AC/DC
Weight
0.4 kg
Installation Guidelines
Ensure the SLC 500 chassis power is disconnected before installing or removing the module to prevent electrical damage.
Slide the module into the designated slot in the SLC 500 chassis and secure it using the top and bottom retaining screws.
Use appropriate shielded wiring for signal inputs to minimize electromagnetic interference (EMI) in high-noise environments.
Verify that the input voltage matches the 48V rating of the module to avoid hardware failure.
Maintain adequate clearance around the chassis to ensure proper ventilation and cooling for the electronics.
FAQ
Is the 1746-IC16 still available from the manufacturer?
No, the 1746-IC16 has been discontinued by Allen-Bradley. It is primarily available through secondary market channels for maintenance and system support.
What voltage does this module support?
The 1746-IC16 is designed specifically for 48V AC/DC input signals.
