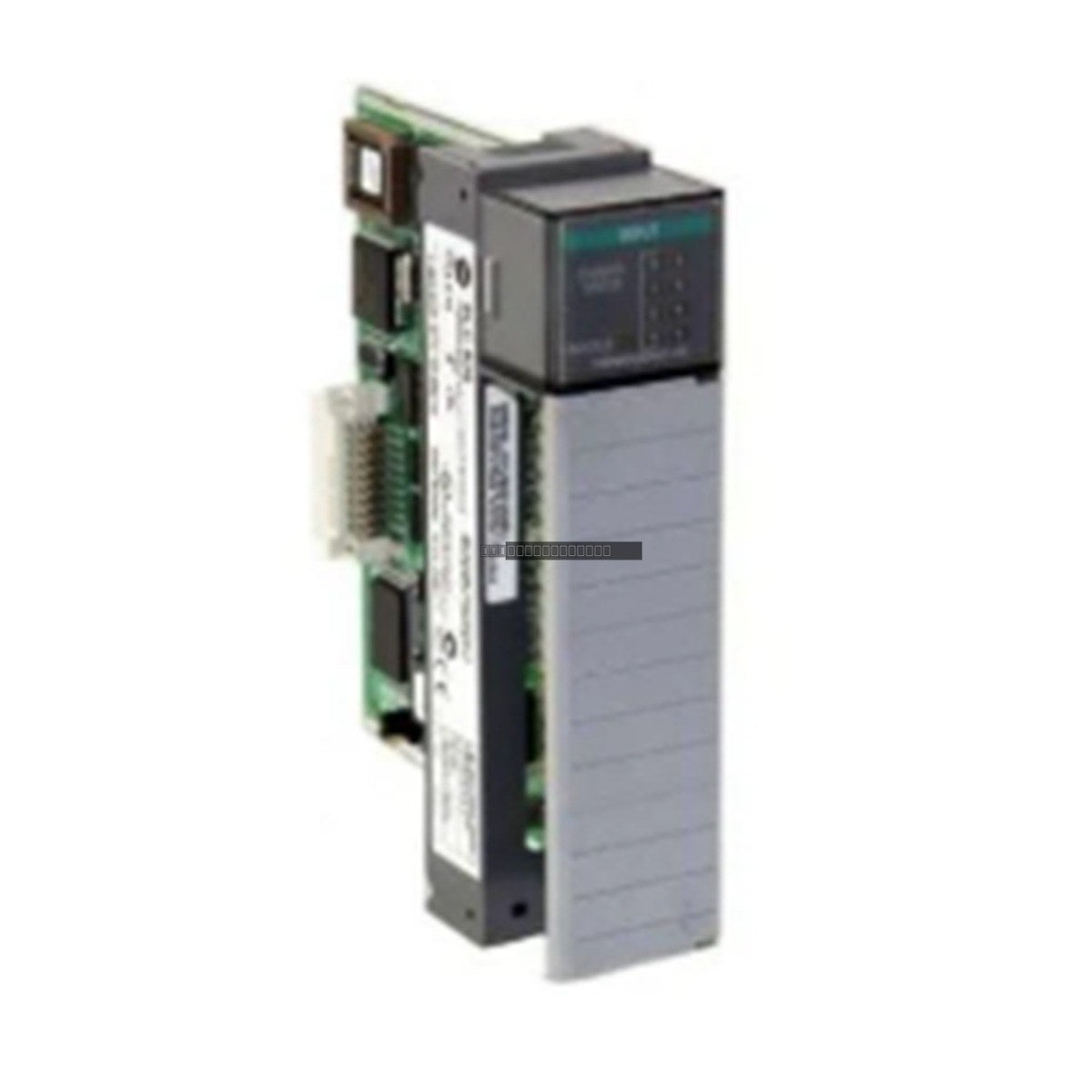

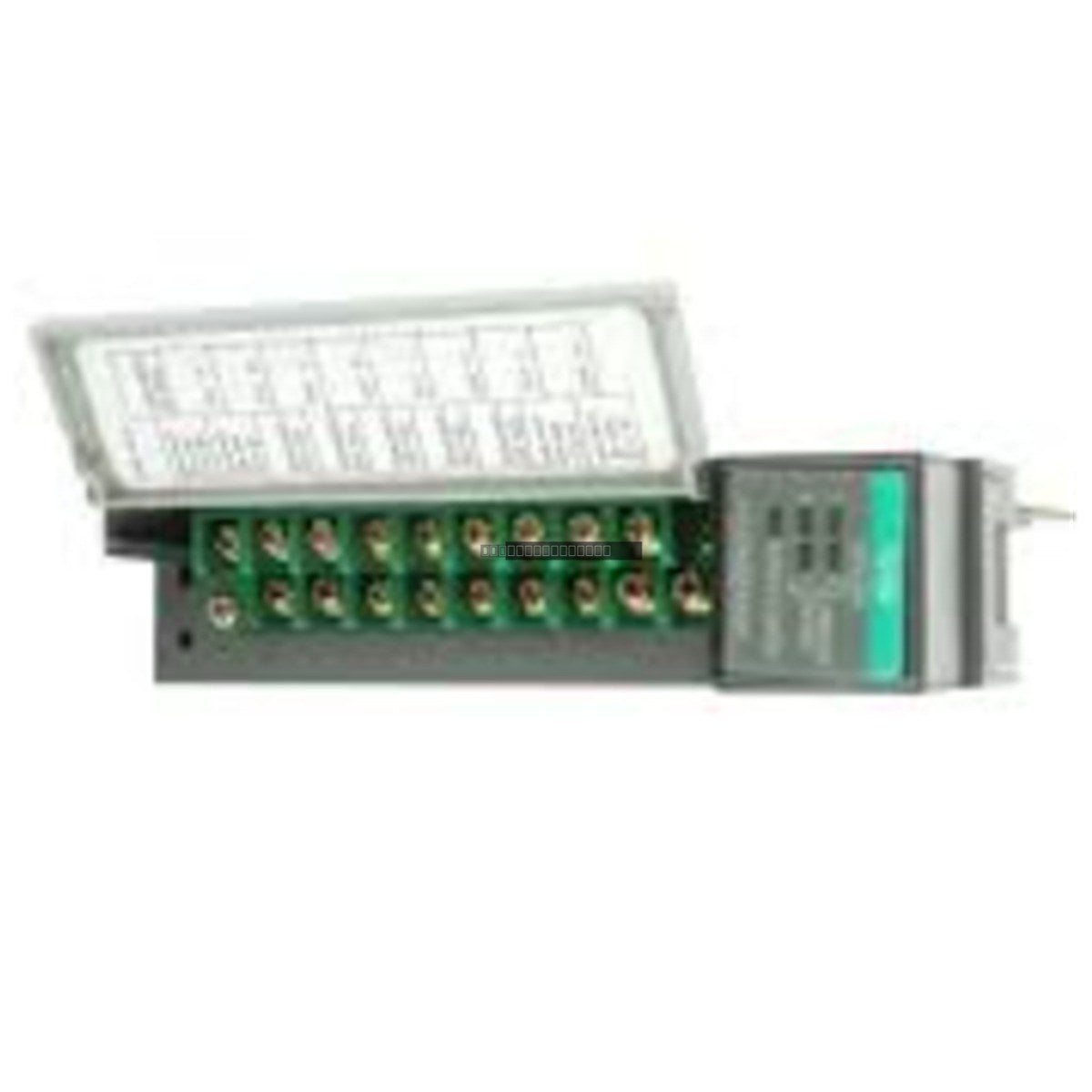

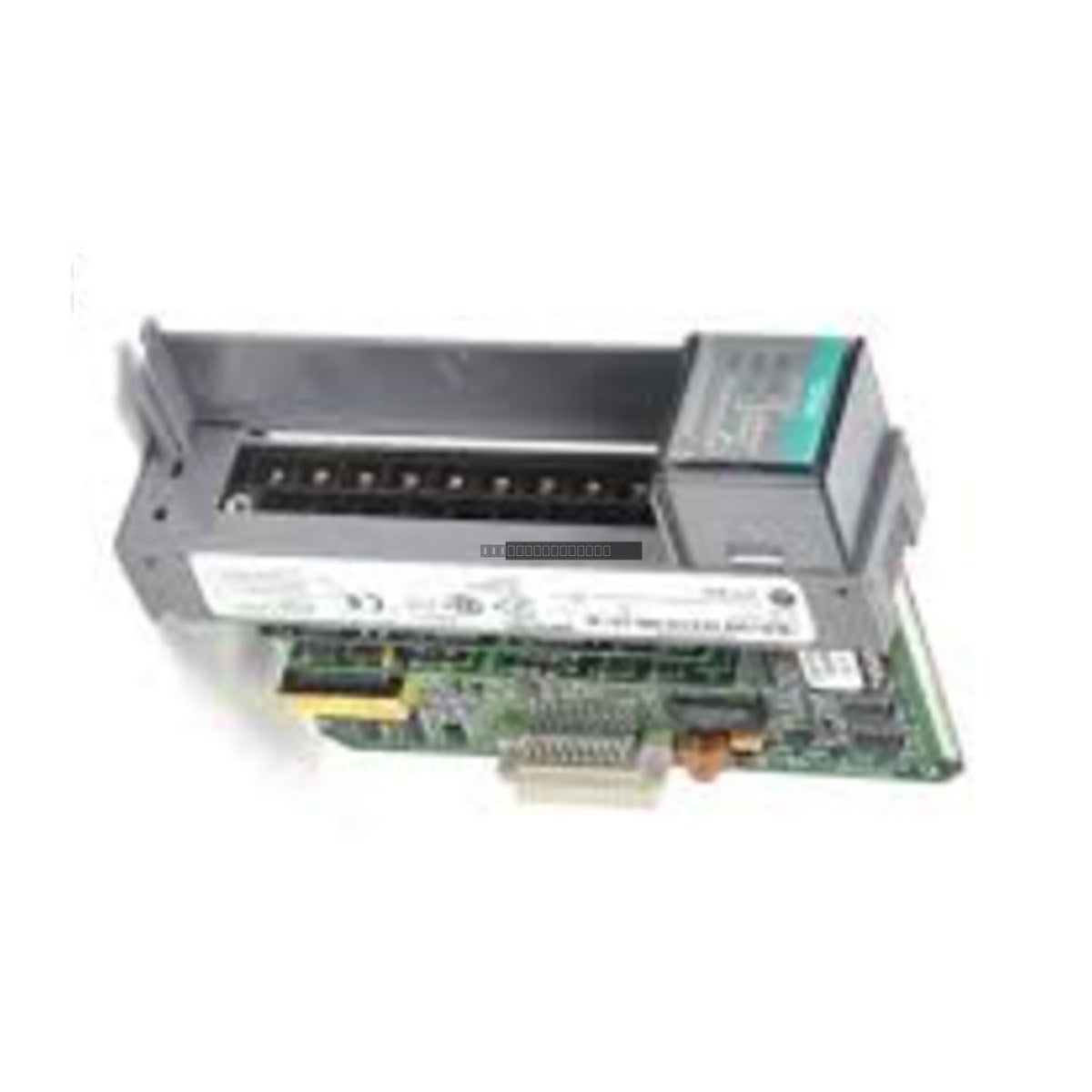

The Allen-Bradley 1746-HSCE is a high-speed counter module designed for the SLC 500 programmable logic controller system. This module provides high-speed counting and encoder input capabilities, allowing for precise monitoring of fast-moving processes in industrial automation environments. It is engineered to interface directly with the SLC 500 backplane, providing seamless integration for motion control, flow measurement, and high-speed positioning applications.
Features
High-speed counter and encoder input functionality.
Multi-channel architecture for versatile signal processing.
Integrated I/O configuration with 4 inputs and 4 outputs.
Designed for direct compatibility with the Allen-Bradley SLC 500 chassis.
Current consumption: 320 mA.
Applications
This module is typically utilized in industrial control systems requiring high-speed pulse counting, such as conveyor belt speed monitoring, flow meter interfacing, rotary encoder feedback for motor control, and high-speed batch counting.
Technical Specifications
Product Model
1746-HSCE
Module Type
High Speed Counter
Compatibility
SLC 500 Series
Inputs
4
Outputs
4
Current Consumption
320 mA
Weight
0.3 kg
Installation Guidelines
Ensure the SLC 500 system power is disconnected before installing or removing the module from the chassis.
The module should be inserted into an available slot in the SLC 500 rack; ensure it is fully seated and the retaining screws are tightened to provide a secure ground connection.
Use shielded cables for high-speed signal inputs to minimize electromagnetic interference (EMI).
Route signal wiring away from high-voltage power lines and AC motor drive cables.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
FAQ
What is the primary function of the 1746-HSCE?
The 1746-HSCE is a specialized I/O module for the SLC 500 platform that processes high-speed pulse inputs from encoders or proximity sensors, which standard digital input modules cannot capture due to scan time limitations.
Is this module compatible with all SLC 500 processors?
The 1746-HSCE is designed for the SLC 500 family. Please verify your specific processor firmware and rack configuration to ensure compatibility with the module's I/O mapping requirements.
