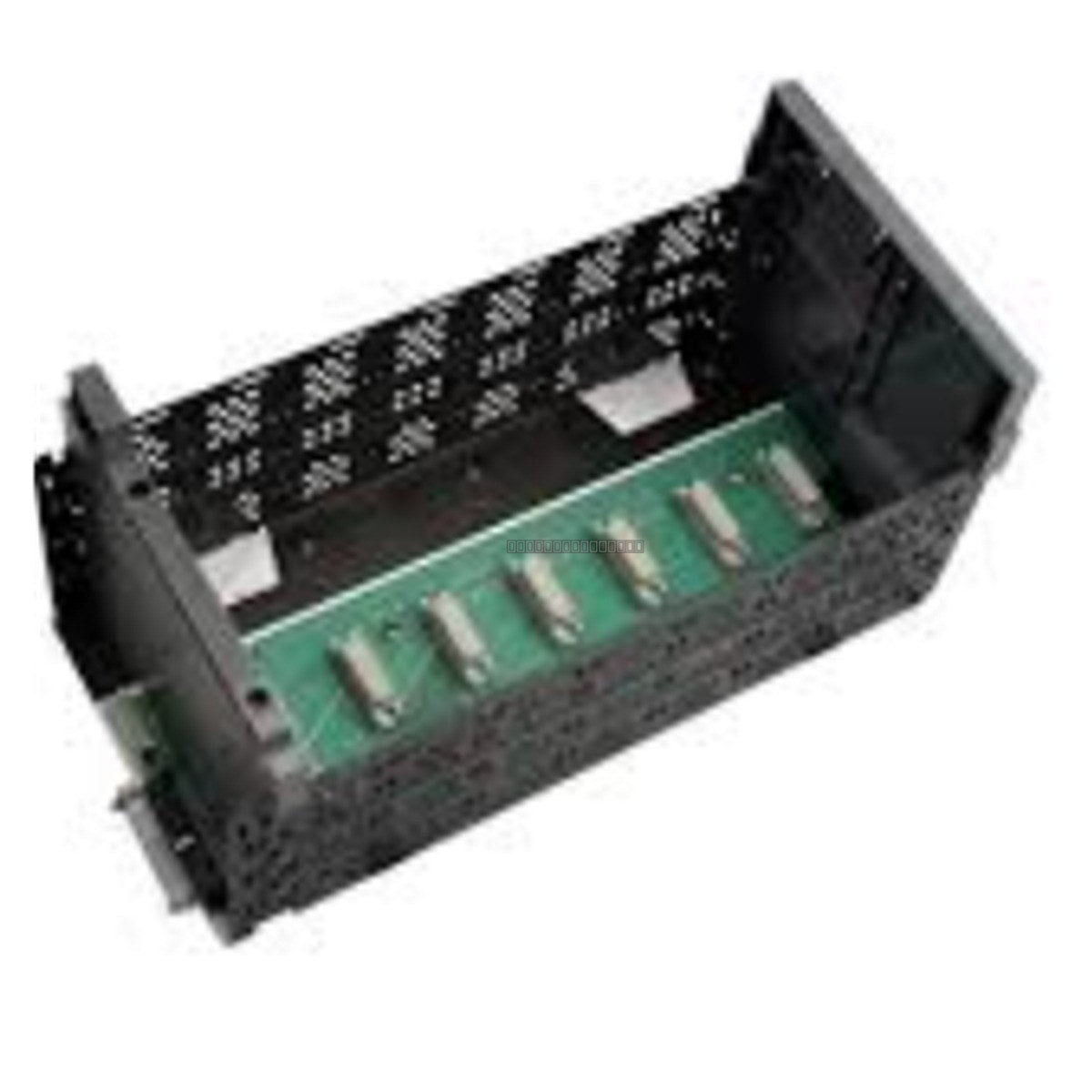

Allen-Bradley 1746-A7 SLC 500 7-Slot Modular Chassis

Description

The Allen-Bradley 1746-A7 is a 7-slot modular chassis engineered for the SLC 500 programmable controller system. This chassis provides a robust mounting platform for processors, I/O modules, and specialty communication cards. Designed for mid-sized automation applications, it offers a compact footprint while maintaining the flexibility required for system expansion. In standard configurations, Slot 0 is reserved for the SLC 500 processor or a remote I/O adapter, providing six additional slots for I/O and specialty modules.

Features

• Seven-slot capacity for SLC 500 series modules.
• Supports multi-chassis configurations, allowing for up to three racks in a single local system via 1746-C series interconnect cables.
• Rugged backplane design supporting high-speed communication between the processor and I/O modules.
• Panel-mount design with four integrated mounting tabs for secure installation in industrial enclosures.
• Optimized for heat dissipation and electrical stability within the SLC 500 architecture.

Applications

The 1746-A7 chassis is widely used in manufacturing, process control, and machine automation environments where SLC 500 controllers are deployed. It is suitable for applications requiring moderate I/O density, such as conveyor control, packaging machinery, and small-to-medium scale process monitoring.

Technical Specifications

Installation Guidelines

• Ensure the chassis is mounted on a flat, rigid surface using all four mounting tabs to prevent mechanical stress.
• Use SEM screws or Phillips screws with star washers to ensure proper chassis grounding to the enclosure backplane.
• Maintain adequate clearance around the chassis to facilitate airflow and heat dissipation; do not obstruct ventilation slots.
• Always power down the system before inserting or removing modules from the chassis to prevent electrical damage.
• When using multiple chassis, ensure the 1746-C interconnect cables are fully seated and secured to maintain backplane signal integrity.
• Keep the chassis away from high-EMI sources, such as large motor starters or high-voltage power lines, to minimize signal interference.

FAQ

Can I use this chassis with any SLC 500 processor?

Yes, the 1746-A7 is compatible with standard SLC 500 processors that fit into the 1746 modular chassis architecture. Ensure your specific processor model supports the backplane current requirements of your total module configuration.

How do I expand my system using this chassis?

You can connect up to two additional 1746 chassis to the primary rack using 1746-C series interconnect cables. This allows for a maximum of three chassis in a single local I/O system.
