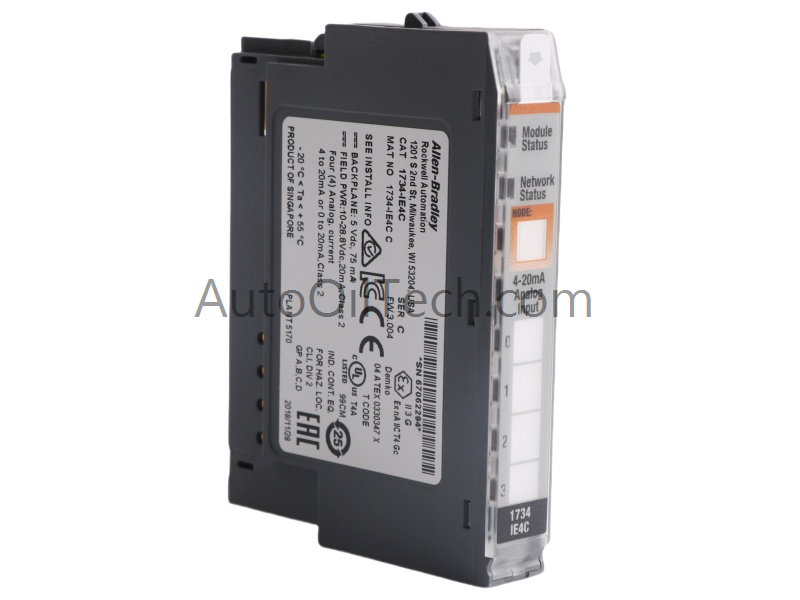

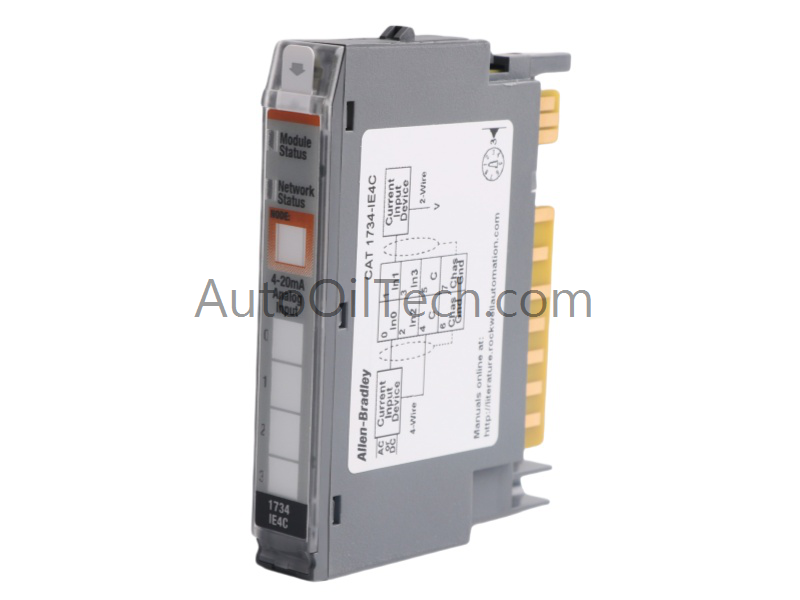

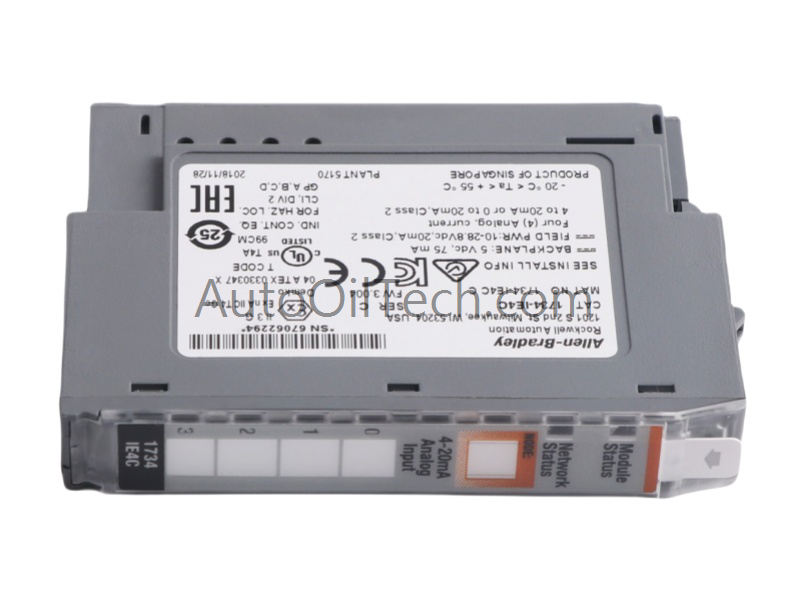

The Allen-Bradley 1734-IE4C POINT I/O Analog Input Module is a compact, high-density solution for acquiring multiple analog signals in space-constrained industrial environments. With four isolated current input channels and 16-bit resolution, it ensures precise measurement and reliable integration into process control systems. Designed for the POINT I/O platform, the 1734-IE4C offers modular flexibility, robust construction, and seamless compatibility with Studio 5000 and RSLogix programming environments.
Technical Specifications
Parameter
Value
Model Number
1734-IE4C
Manufacturer
Allen-Bradley (Rockwell Automation)
Module Type
POINT I/O Analog Input Module
Input Channels
4 isolated current inputs
Signal Ranges
0–20mA, 4–20mA
Resolution
16-bit
Mounting
DIN rail, open-style
Terminal Blocks
Removable for easy wiring
Status Indicators
Channel activity and fault LEDs
Versions Available
Standard and conformal-coated (1734-IE4CK)
Certifications
Class 1 Division 2 (hazardous locations)
Operating Temperature
Wide industrial range
Vibration Resistance
Industrial-grade durability
Dimensions
1.1 × 5.5 × 7.7 cm
Weight
0.04 kg
System
PLC integration (POINT I/O platform)
Origin
USA
HS Code
8537101190
Condition
Brand New
Discontinued
June 30, 2016
Functional Highlights
Four-channel analog input with high-density design for space efficiency.
16-bit resolution ensures precise measurement for process control.
Individual channel isolation prevents ground loops and enhances accuracy.
Removable terminal blocks simplify wiring and maintenance.
Status indicators provide immediate visual feedback for diagnostics.
Conformal-coated version (1734-IE4CK) available for harsh environments.
Certified for hazardous locations (Class 1 Div 2), expanding industrial applicability.
