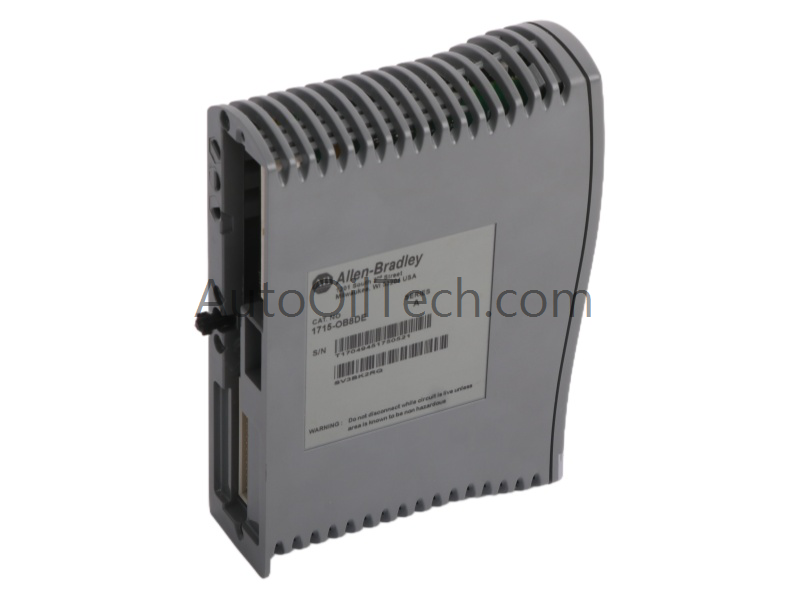

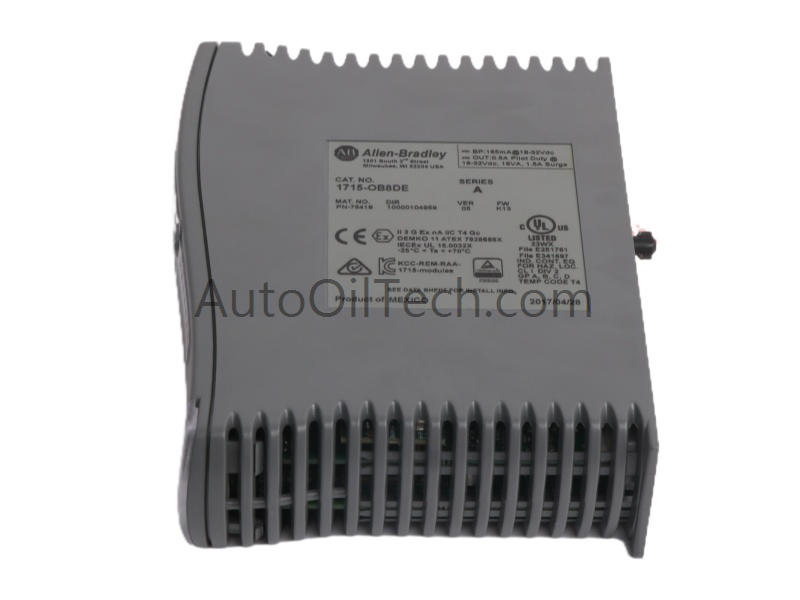

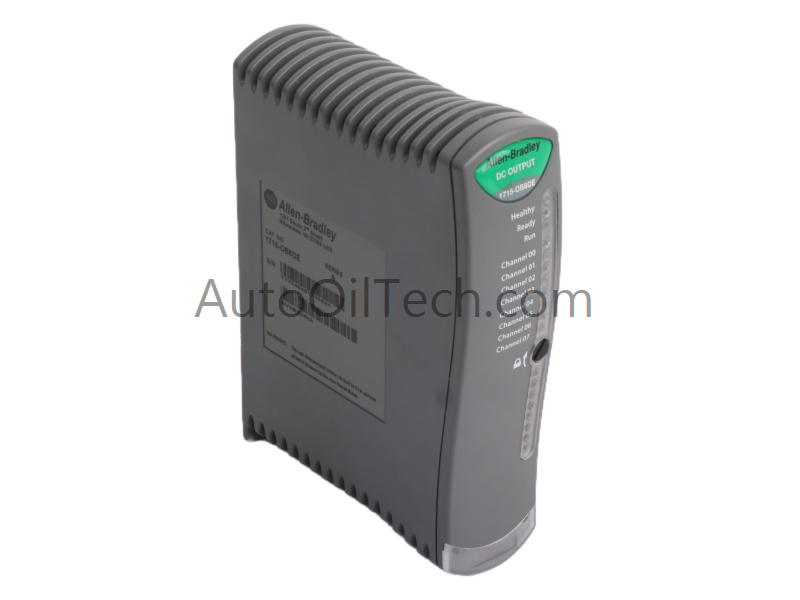

The Allen-Bradley 1715-OB8DE Digital Output Module is an 8-point DC output solution engineered for redundant I/O systems. It delivers up to 1A per point within a voltage range of 18–32V DC, ensuring reliable control in demanding automation environments. Compact and durable, the module integrates diagnostic features and surge immunity for stable operation across industrial applications.
Technical Specifications
Parameter
Value
Model Number
1715-OB8DE
Manufacturer
Allen-Bradley (Rockwell Automation)
Module Type
Digital Output Module
Output Points
8
Voltage Range
18–32V DC
Output Current
1A per point
System Power Dissipation
3.0 W
Field Loop Dissipation
0.17 W
Mounting
DIN rail, open-style enclosure
Protection Class
IP20
Diagnostics
Health and status display
Output Type
Current sourcing
Dimensions
166 × 42 × 118 mm
Weight
290 g
Wiring
18–16 AWG copper, rated 85°C+
Vibration Resistance
Up to 2 g
Shock Resistance
Up to 50 g (uninstalled)
Operating Temperature
-25°C to +70°C
Origin
USA
HS Code
8537101190
Condition
Brand New
Discontinued
June 30, 2016
Functional Highlights
The Allen-Bradley 1715-OB8DE supports redundant I/O systems for fault-tolerant automation.
Built-in diagnostics provide real-time health and status monitoring.
Surge transient immunity ensures stable operation under fluctuating industrial conditions.
Compact design with IP20 protection allows easy DIN rail installation.
Wide operating temperature range enhances versatility in harsh environments.
