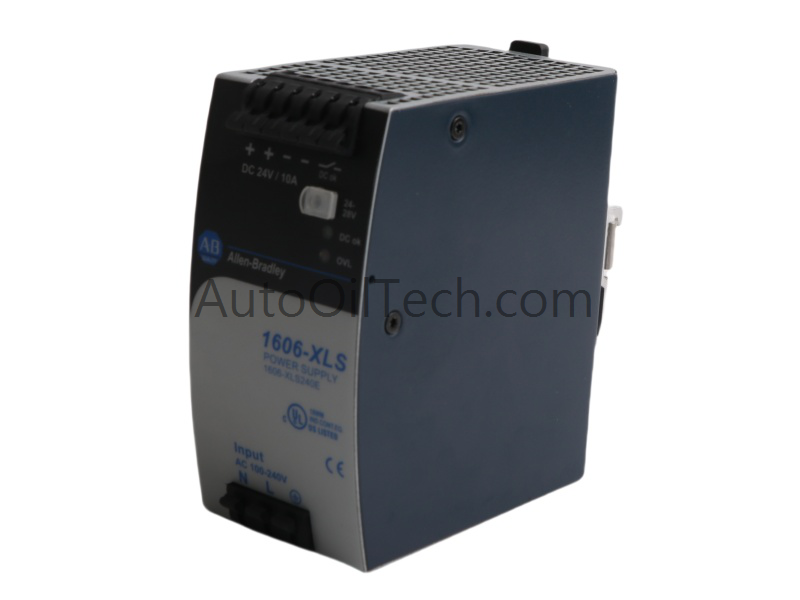

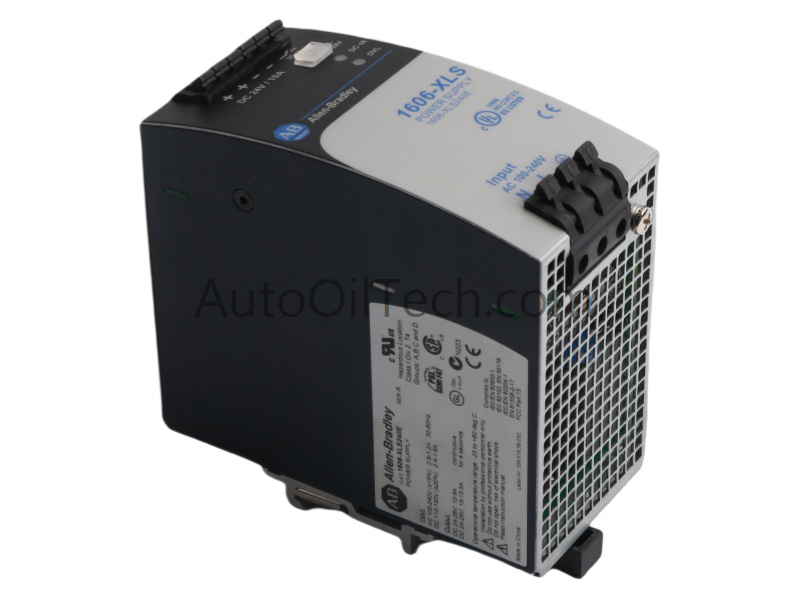

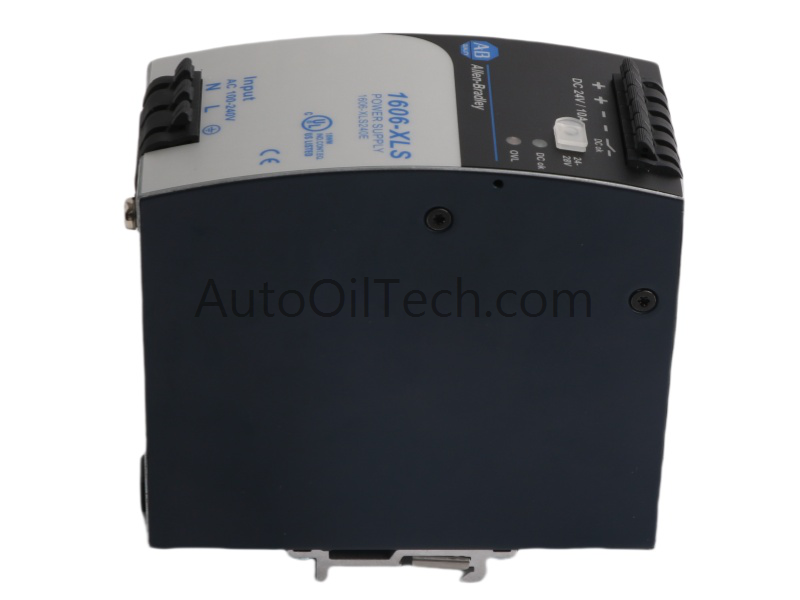

The 1606-XLS240E Performance Power Supply by Allen-Bradley is a high-efficiency DIN-rail mounted unit engineered for industrial control systems. Delivering 24V DC at 10A, it features advanced synchronous rectification technology, enabling 95% efficiency and a compact footprint ideal for space-constrained panels.
Technical Specifications
Parameter
Value
Manufacturer
Allen-Bradley
Model Number
1606-XLS240E
Module Type
Performance Power Supply
Product Range
1606-XLS Series / ControlLogix
Output Voltage
24V DC
Output Current
10A
Peak Power Capability
150% short-term boost
Efficiency
Up to 95%
Input Voltage Range
Wide-range AC input
Inrush Current
Negligible
Cooling Method
Natural convection
Diagnostics
DC-ok contact, status LEDs
EMI Performance
Low emissions
Mounting Type
DIN rail
Terminal Type
Spring-clamp quick-connect
Dimensions (W×H×D)
6 × 12.3 × 13 cm
Weight
0.9 kg
HS Code
8537101190
Certifications
International (CE, UL, etc.)
System Compatibility
PLC / ControlLogix
Product Origin
USA
Lifecycle Status
Active
Minimum Order Quantity
1
Lead Time
In Stock
Features
95% energy efficiency reduces heat and power loss.
150% peak power supports motor starting and capacitor charging.
Oversized output capacitors absorb reverse energy surges.
Wide input voltage range and low EMI ensure stable operation in harsh environments.
Compact DIN-rail design saves panel space.
Built-in diagnostics simplify maintenance and troubleshooting.
