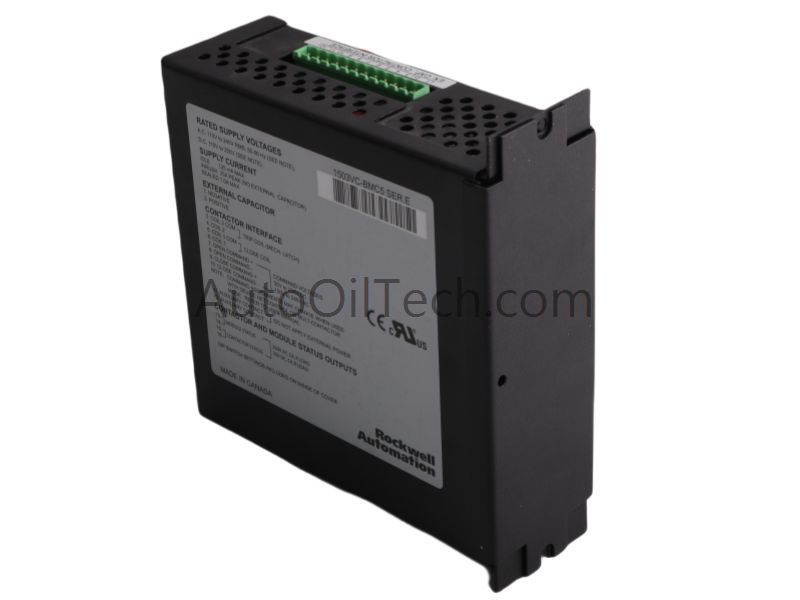

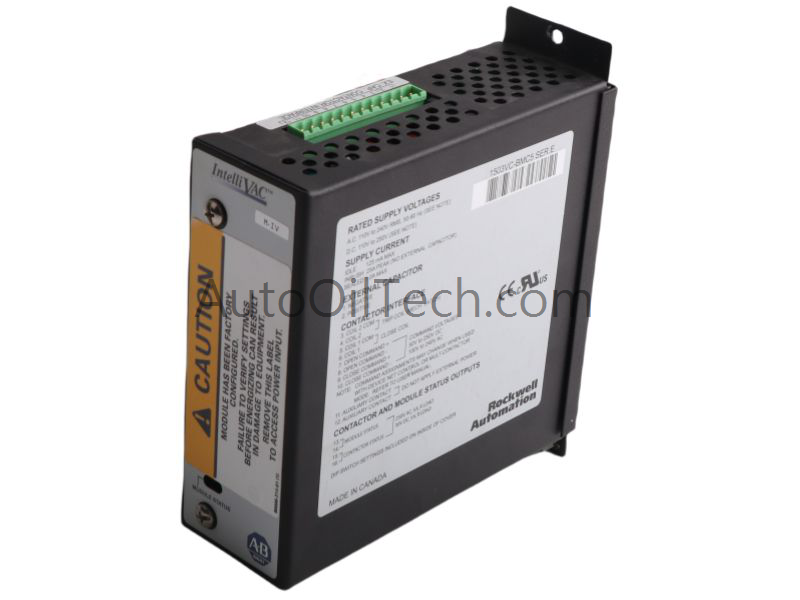

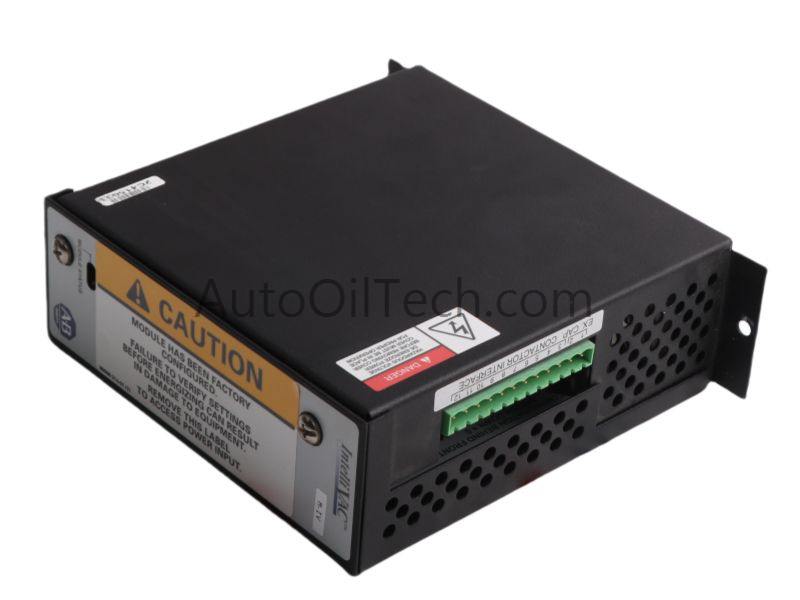

The Allen-Bradley 1503VC-BMC5 IntelliVAC Module is a high-performance control solution designed to enhance the operation and protection of Bulletin 1502 vacuum contactors. Supporting both electrically held and mechanically latched contactors, it provides comprehensive motor protection against overload, phase loss, and short circuits. Compact and efficient, the 1503VC-BMC5 ensures reliable motor management in demanding industrial environments.
Technical Specifications
Parameter
Value
Model Number
1503VC-BMC5
Manufacturer
Allen-Bradley (Rockwell Automation)
Module Type
IntelliVAC Control Module
Compatible Contactors
Bulletin 1502, 400 & 800 Amp
Input Voltage Range
110–240V AC
Frequency Support
50Hz / 60Hz
Protection Features
Overload, phase loss, short circuit
Control Capability
Electrically held & mechanically latched contactors
Dimensions
6 × 16.7 × 18.5 cm
Weight
1.2 kg
System
PLC integration
Origin
USA
HS Code
8537101190
Condition
Brand New
Discontinued
June 30, 2016
Functional Highlights
Provides advanced motor protection for Bulletin 1502 vacuum contactors.
Supports both electrically held and mechanically latched contactors for flexible deployment.
Protects motors against overload, phase loss, and short circuits.
Compact design with intuitive interface for easy installation.
Enhances motor control efficiency and system reliability.
