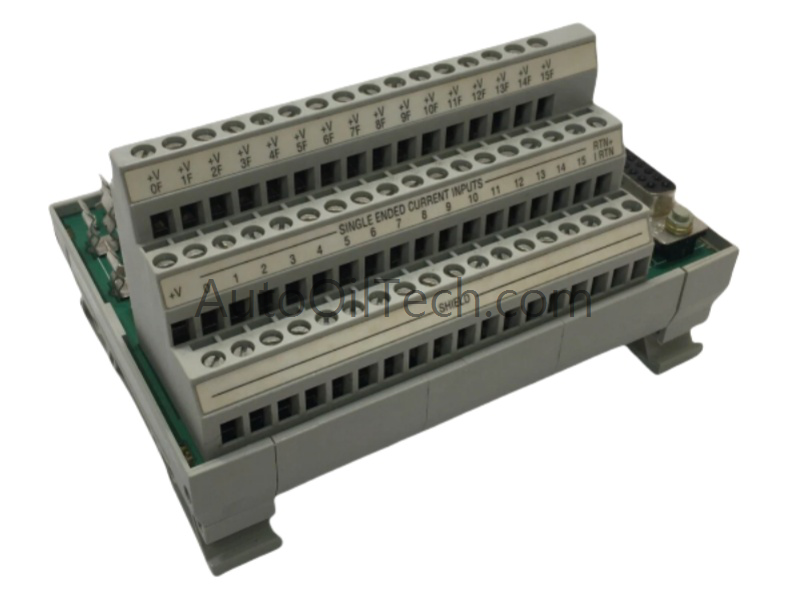

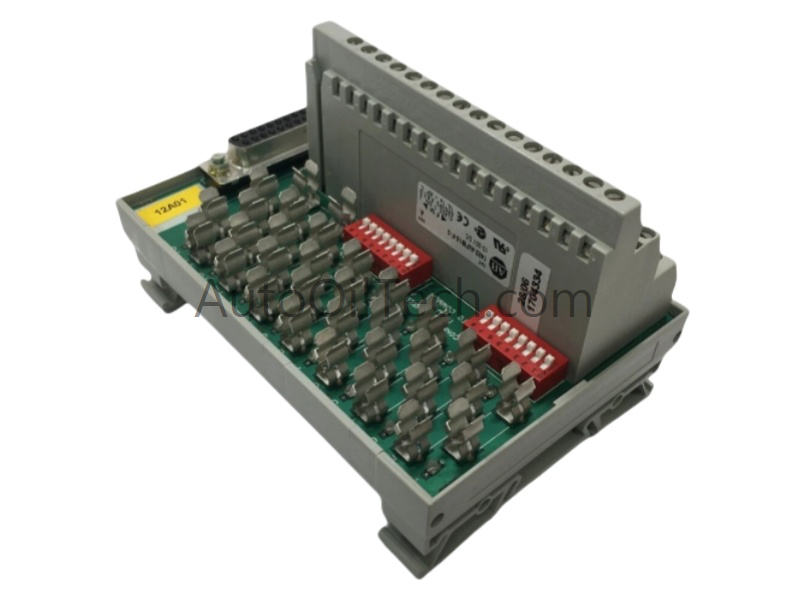

The Allen-Bradley 1492-AIFM16-F-3 Analog Input Fuse Module is a high-performance interface solution designed for industrial automation systems. Featuring 16 analog input channels with fusible protection and blown fuse indicators, it ensures safe, reliable signal acquisition and simplifies troubleshooting. Compact and lightweight, the 1492-AIFM16-F-3 integrates seamlessly into Allen-Bradley PLC architectures, making it ideal for process control and machine monitoring applications.
Technical Specifications
Parameter
Value
Model Number
1492-AIFM16-F-3
Manufacturer
Allen-Bradley (Rockwell Automation)
Module Type
Analog Input Fuse Module
Input Channels
16
Input Voltage Range
10–30V DC
Fuse Indicators
24V DC blown fuse LEDs per channel
Terminals per Channel
3 (flexible wiring configurations)
Cable Support
D-Shell connections
Mounting Options
DIN rail
Dimensions
11 × 8.2 × 5.8 cm
Weight
0.3 kg
Protection Features
Fusible design, overcurrent protection
System
PLC integration
Origin
USA
HS Code
8537101190
Condition
Brand New
Discontinued
June 30, 2016
Functional Highlights
16-channel analog input module with fusible protection for each channel.
Blown fuse indicators provide immediate visual feedback, reducing diagnostic time.
Supports flexible wiring with three terminals per channel.

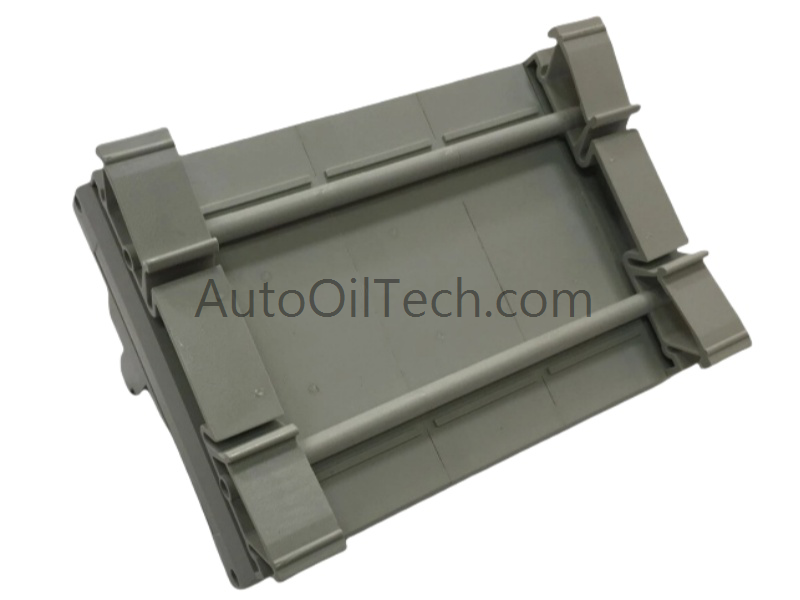

Compact DIN-rail mount design for space-constrained control panels.
Durable fixed terminal blocks ensure secure signal transmission.
Seamless compatibility with Allen-Bradley control systems.
