AEA4D-06 | Yokogawa | Terminal Board

Description

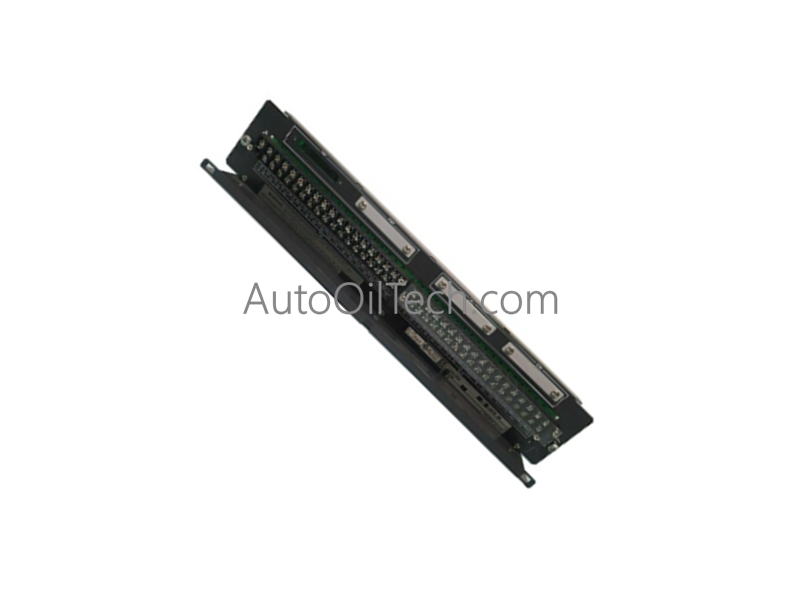

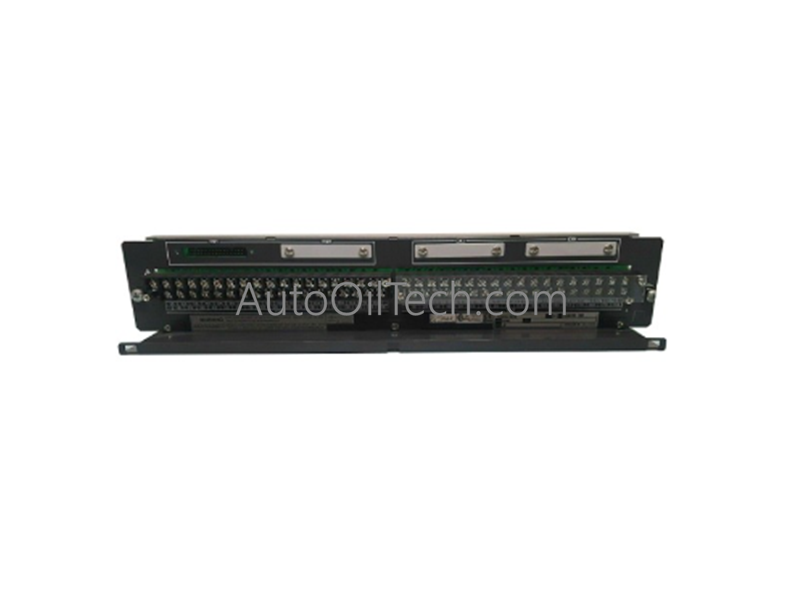

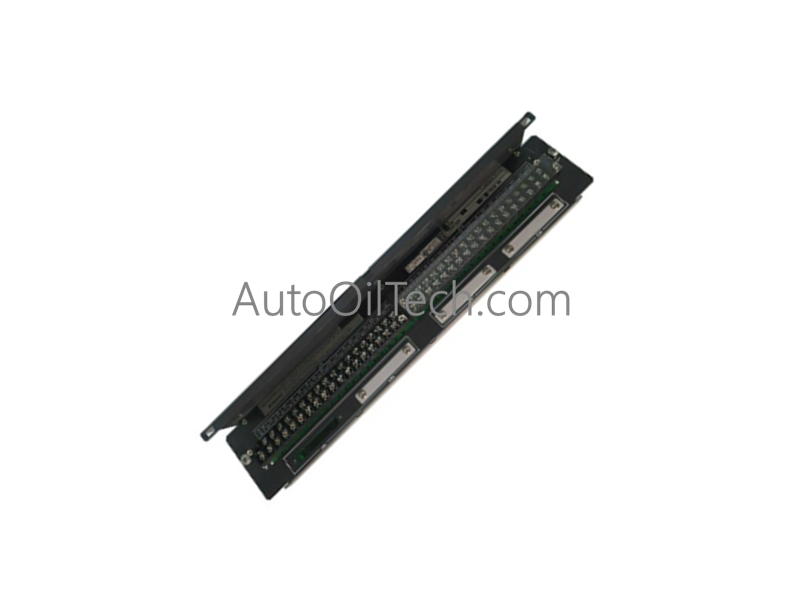

The Yokogawa AEA4D-06 Terminal Board operates as a dedicated high-reliability signal marshaling component engineered to route analog input and output lines within Yokogawa CENTUM CS and CENTUM VP Distributed Control Systems (DCS). Serving as the direct functional and physical product replacement for the legacy AEA4D-01 terminal board, it provides robust interfacing for up to 16 analog channels.

Hardware Specifications

Analog Signal Marshaling and Redundancy

The AEA4D-06 acts as the physical terminal layer that aggregates up to 16 channels of analog field telemetry (such as 4-20 mA current loops or 1-5 VDC process variables) and routes them to the DCS I/O modules via specialized KS1 multi-conductor cable sets. The card supports both standalone single-cable setups and dual-redundant I/O module pairs to eliminate single-point hardware failures. All physical circuit track configurations and impedance matching characteristics are designed to pass raw analog loops cleanly without inducing signal attenuation or propagation drops across the system backplane interface.

Suffix Breakdown & Model Matrix

• AEA4D: Base designator for the 16-channel analog field terminal board platform.
• First Suffix Code (-0): Indicates the assembly is configured without onboard surge absorber modules, matching standard protected cabinet deployment parameters.
• Second Suffix Code (6): Specifies the integration of an ISA Standard G3 compliant conformal coating layer to resist severe chemical atmospheric decay, configured for environments that do not require specific hazardous area explosion protection ratings.

Frequently Asked Questions

Q: Can the AEA4D-06 directly replace an existing AEA4D-01 terminal board in a marshalling panel? A: Yes. The AEA4D-06 is the direct lifecycle product replacement for the legacy AEA4D-01 variant. It retains identical physical mounting footprints and terminal block geometry, allowing a direct field swap using existing wiring.

Q: What environmental protection is gained with the Suffix Code 6 classification? A: Suffix 6 applies an advanced conformal coating matrix that fulfills ISA Standard G3 severe corrosion parameters. This formulation guards surface-mount joints against chemical attack from volatile industrial airborne gases like hydrogen sulfide ($H_2S$) and sulfur dioxide ($SO_2$).

Q: How is I/O module redundancy achieved through this terminal board interface? A: The board features physical trace splitting and dual connector sockets designed to receive two individual KS1 cables simultaneously. This allows a single field sensor loop to land on the terminals and safely mirror its analog signal to both a primary and a backup I/O module module.

Field Installation Guidelines

• Redundant KS1 Cable Seat Verification: When mapping dual-redundant setups, ensure both primary and secondary KS1 signal cables are locked into their matching multi-pin sockets via the integrated retention mechanisms. A loose or skewed connector will trigger circuit open diagnostics on the corresponding module rack.
• Electrostatic Discharge (ESD) Protection: While the terminal board functions as a robust interface layer, the circuit traces bridge directly to sensitive downstream DCS microchip arrays. Field personnel must wear a verified, grounded ESD wrist strap throughout the replacement and unboxing sequence.
• Conformal Surface Integrity Check: Because this board features the G3 protection profile, visually inspect the contact pins before mating the KS1 cables. Ensure that no accidental overspray or residual coating substance covers the electrical interfaces, as this will introduce loop resistance.
• Shield Ground Tracking Rules: Ensure the drain wires of the shielded analog field pairs are landed cleanly on the designated terminal grounding strip. Maintain low-impedance connection paths between the board assembly base plate and the main cabinet safety ground bus to block external electromagnetic noise from disrupting the 16 analog paths.
