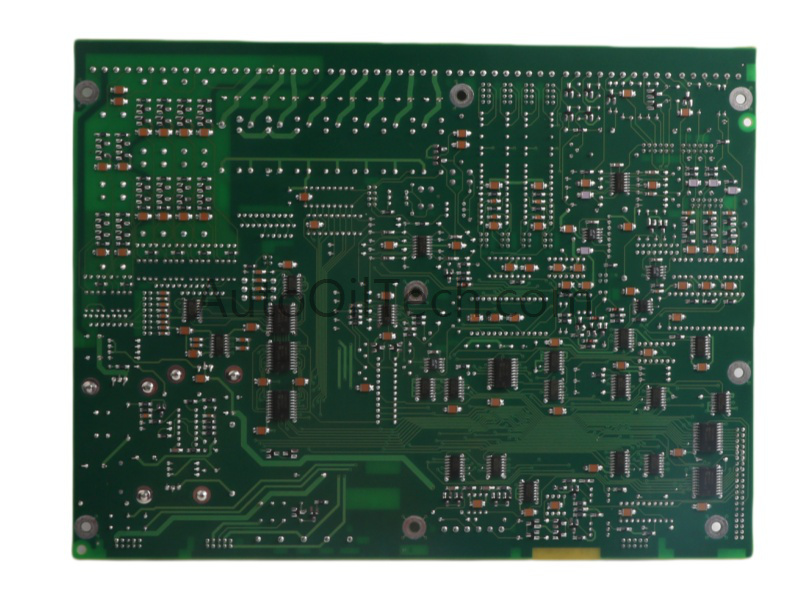

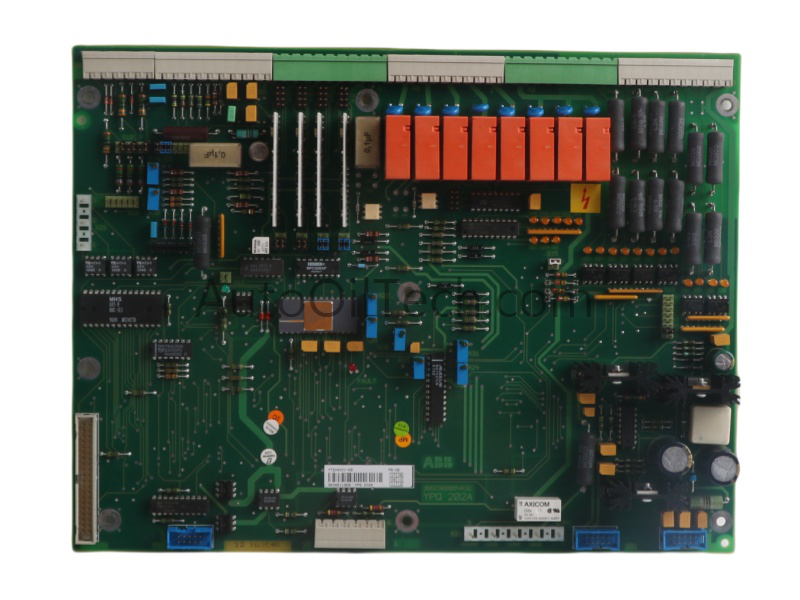

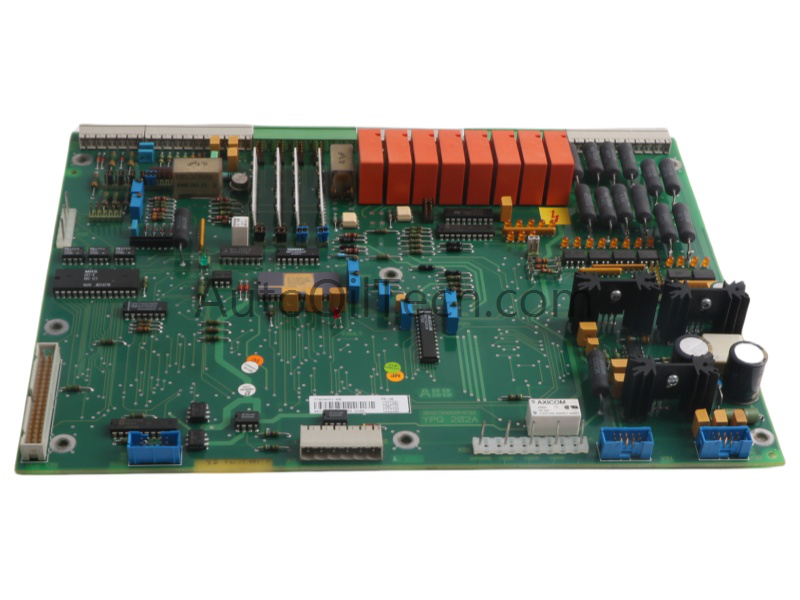

The ABB YPQ202A YT204001-KB I/O Board is a versatile analog output module engineered for critical industrial automation systems. Supporting multiple current loop ranges (4–20 mA and 20–320 mA) and voltage outputs (0–10 V, 0–20 mA, 0–5 V), it ensures precise control with ±0.1% accuracy.
Its robust design incorporatestriple modular redundancy (TMR) and a SIL 3 HART filter, guaranteeing high safety, availability, and secure communication in demanding environments.
Technical Specifications
Parameter
Value
Model Number
YPQ202A YT204001-KB
Module Type
I/O Board
Manufacturer
ABB
Product Range
ABB
Dimensions
30.5 × 23 × 3 cm (datasheet) / 4.4 × 16.9 × 22 cm (alt. config)
Weight
0.64 kg (datasheet) / 2–5 kg (alt. config)
Input Signals
4–20 mA, 20–320 mA
Output Signals
0–10 V, 0–20 mA, 0–5 V
Output Configurations
6-way or 2-way simple
Output Precision
±0.1%
Isolation
Robust I/O isolation & channel separation
Power Supply
24 V DC or 110/230 V AC
Operating Temperature
0°C to +60°C
Storage Temperature
-40°C to +85°C
Safety Standards
IEC 62443, SIL 3 compliant
Technology
Triple Modular Redundancy (TMR)
Diagnostics
Built-in self-diagnostics, fault detection
Communication Service
Ethernet router
HS Code
8537101190
Origin
Sweden
Condition
Brand New
MOQ
1
Lifecycle Status
Active
Functional Highlights
High precision control with ±0.1% accuracy across multiple signal ranges.
Triple Modular Redundancy (TMR) ensures maximum safety and availability.
SIL 3 HART filter enhances secure communication in field conditions.
Flexible power integration with both DC and AC input options.
Self-diagnostic functions provide fault detection and alarms, minimizing downtime.
Robust isolation protects against electrical interference, ensuring reliable operation.
Applications and Compatibility
The ABB YPQ202A YT204001-KB I/O Board is suitable for mission-critical automation across industries including:
