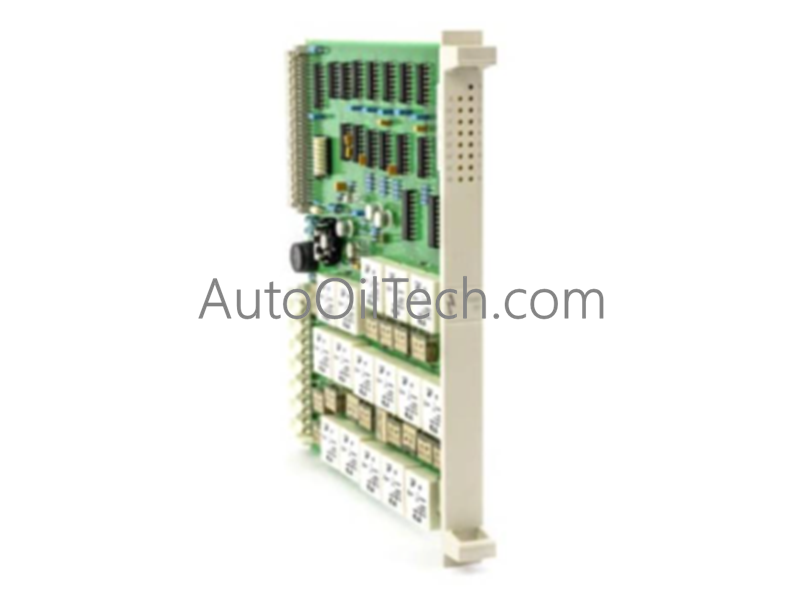

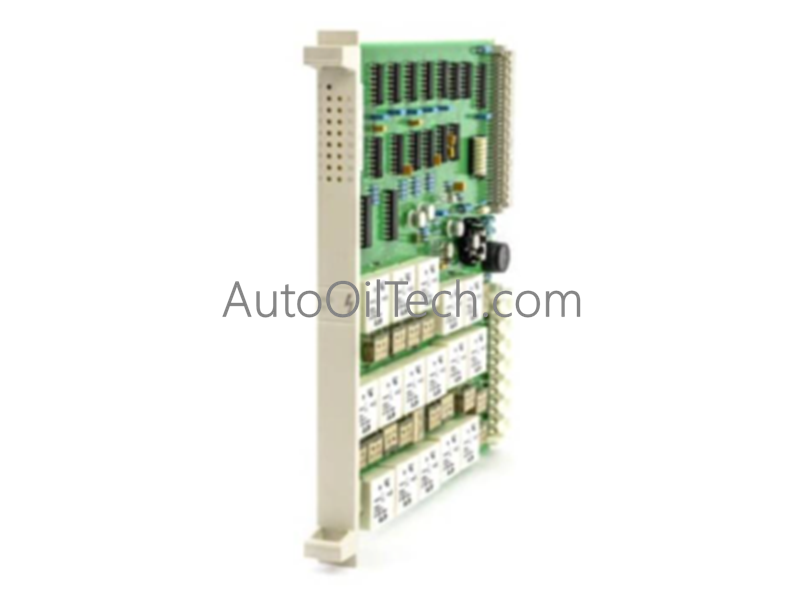

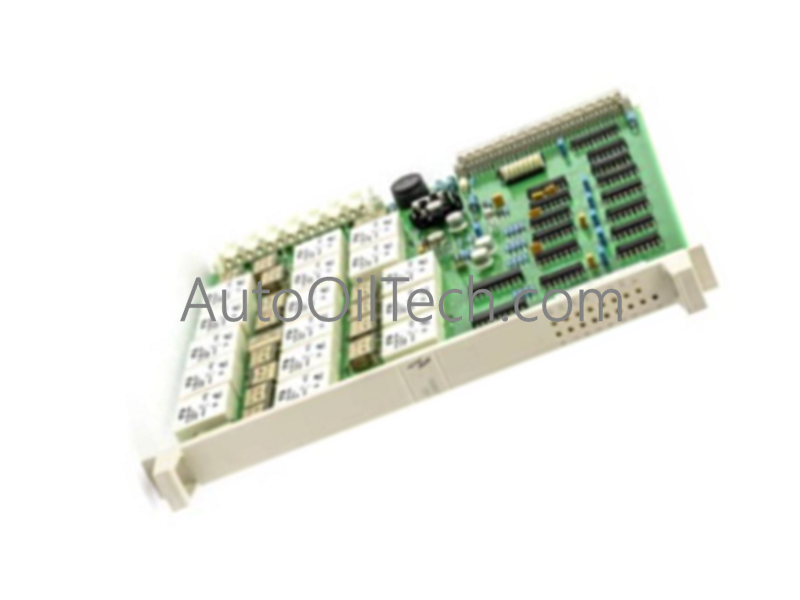

The ABB UNC4674BV1, also cataloged as the UNC4674BV1 Interface Module, operates as a dedicated hardware component for stable communication and signal coupling within distributed control system platforms.
Hardware Specifications
Parameter
Specification
Model
UNC4674BV1
Brand
ABB
Part Number
HIEE305089R1
Origin
Switzerland
Product Type
Interface Modules
Host System Compatibility
ABB Advant and matching DCS architectures
Nominal Operating Voltage
24 V DC
Operational Channel Protection
Electrical isolation against EMI, surges, and ground potential offsets
Physical Form Factor
Compact rack-mounted design
Weight
1.43 kg
Operating Temperature
0 to 55 deg C
Storage Temperature Range
-20 to 70 deg C
Relative Humidity Limits
5% to 95% non-condensing
Compliance Frameworks
Industrial-grade, IEC standards
Profinet / EtherNet/IP Deterministic Networks and Driver Integration
The interface station provides physical loop isolation and electrical decoupling between central processing racks and remote industrial subsystems. This network arrangement prevents high-frequency ground loop currents from destabilizing central processing logic, optimizing backplane bus communication velocity across the internal rack framework. The electrical interface bridges discrete bus segments seamlessly over Profinet or EtherNet/IP deterministic networks, ensuring real-time status packet routing without processing latency. Full firmware flash compatibility with legacy ABB Advant control software permits high I/O density scaling routines, enabling stable connection tracking across multi-node automation architectures.
Frequently Asked Questions
Q: How does the electrical isolation layer on the HIEE305089R1 defend the control rack?
A: The module introduces a physical galvanic isolation barrier on all active signal links. This configuration stops high-voltage switching surges, localized electromagnetic interference, and floating ground potential differences from reaching the main internal processing bus.
Q: Is this modular interface device hot-swappable under live rack power states?
A: No. To eliminate the risk of voltage arc transients across the backplane pin assembly, the cabinet power distribution circuit must be isolated before removing or inserting the interface card into the rack.
