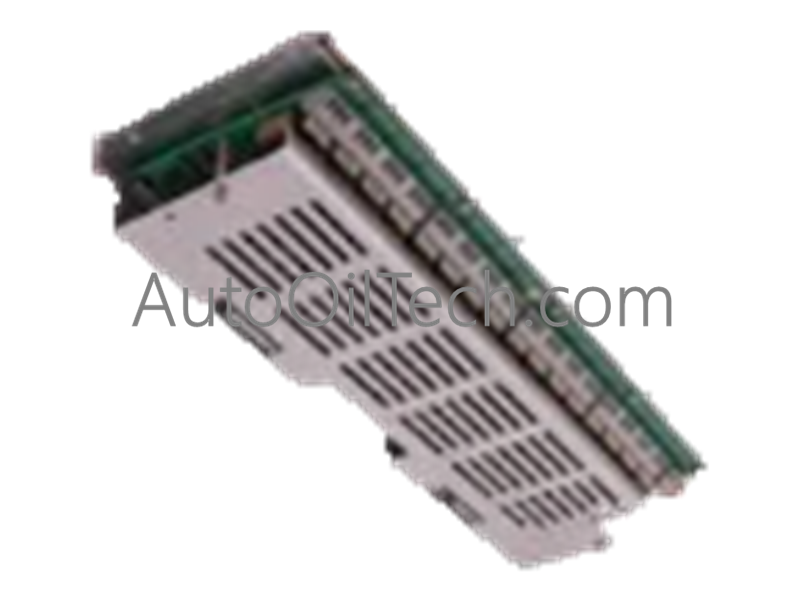

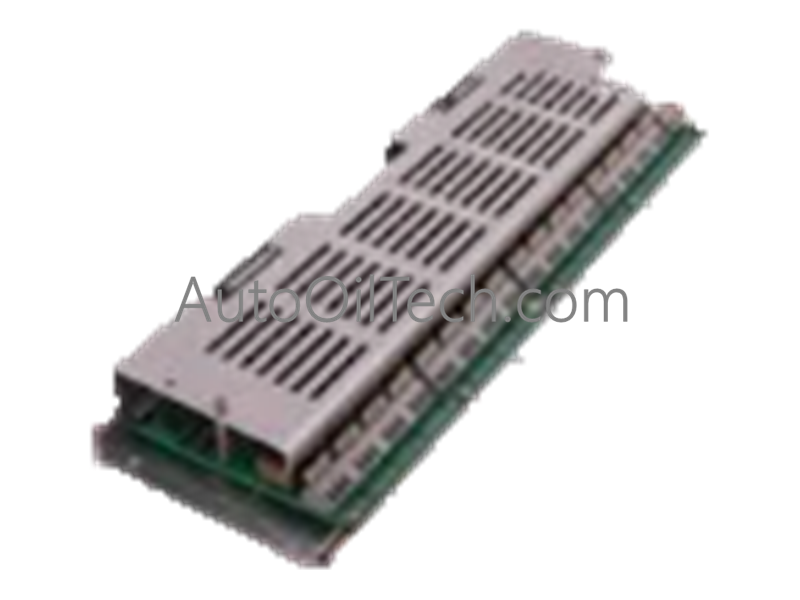

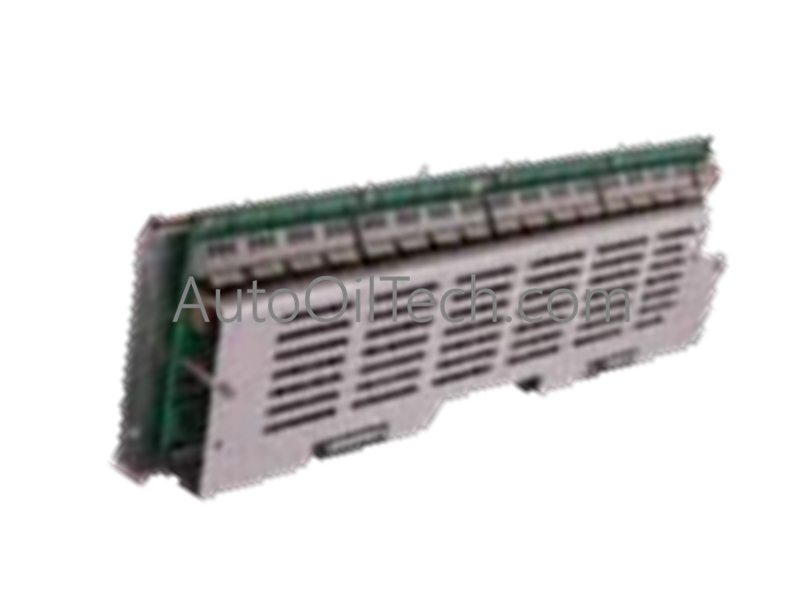

The ABB UAC096AE01, also cataloged under manufacturing part number HIEE300794R0001, operates as a dedicated hardware component for multi-channel analog signal conditioning, data conversion, and bi-directional field device interfacing within ABB modular control architectures.
Hardware Specifications
Parameter
Specification
Model
UAC096AE01
Brand
ABB
Origin
Switzerland / Germany
Weight
1.2 kg
Dimensions
381 mm x 128 mm x 49 mm
Operating Temp
-20 to +50 deg C
Power Consumption
Factory standard low-voltage logic bus draw
Part Number
HIEE300794R0001
Product Type
Analog I/O Interface Board
Enclosure Protection Class
IP20
Industrial Control and Drives Backplane Communication Velocity
The UAC096AE01 acts as a continuous data-acquisition interface, transforming analog voltage and current inputs from physical plant transducers into digitized variables while concurrently outputting precise control signals to field actuators. To manage concurrent multi-channel conversion tasks without loop latency, the module links directly to the internal assembly registers to maximize backplane bus communication velocity. This rapid throughput optimization supports complex, real-time PID loops and distributed processing profiles without timing degradation. The hardware's high-density layout provides extensive I/O density scaling options across expanded DCS racks, while full firmware flash compatibility allows internal noise-filtering constants and individual channel gain coefficients to be flashed directly over the shared configuration bus.
