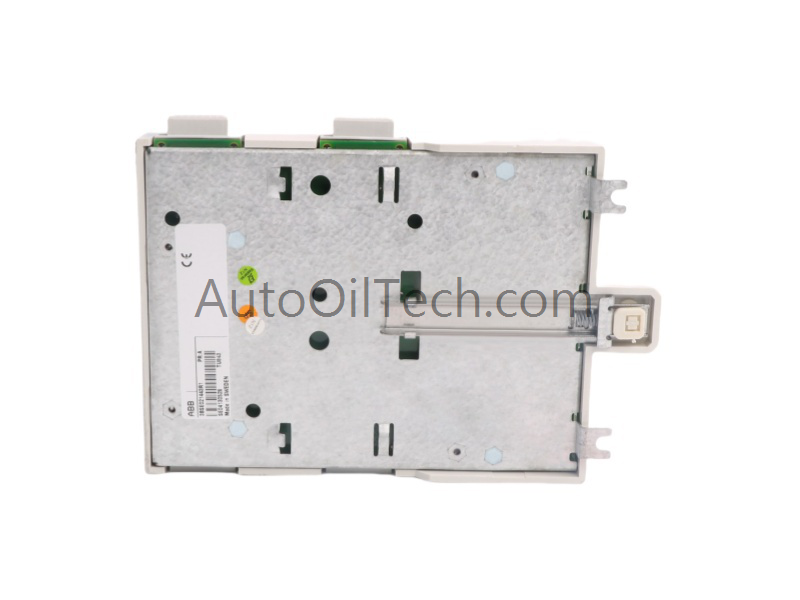

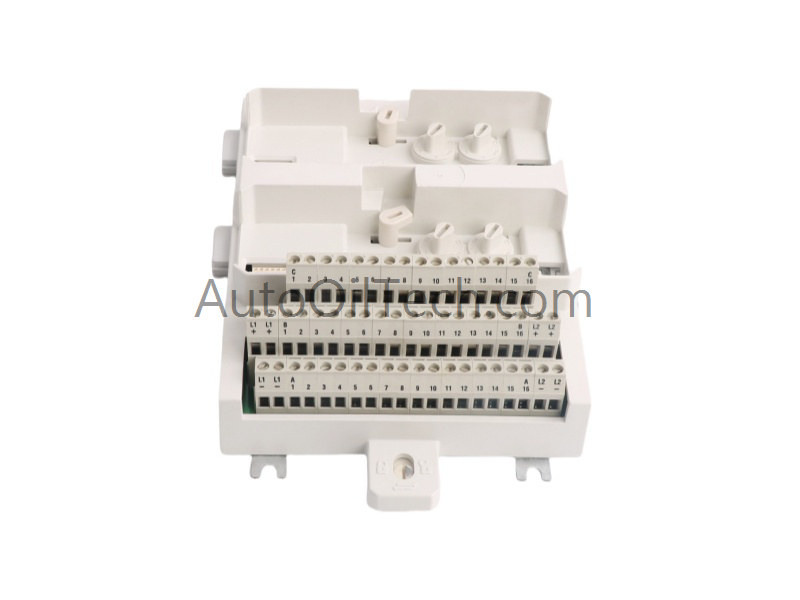

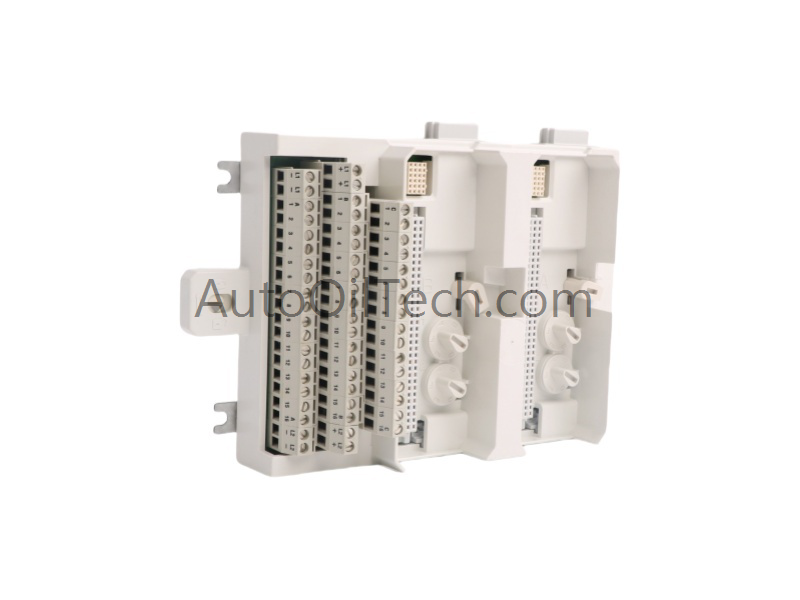

The ABB TU843 3BSE021443R1 Module Termination Unit is engineered for high-performance signal interfacing in S800 I/O systems. Supporting up to 16 I/O channels and 2+2 process voltage connections, it ensures reliable data routing and flexible configuration in distributed control environments.
Each channel includes dual I/O and one ZP connection, with mechanical keying to prevent incorrect module pairing. The TU843 3BSE021443R1 distributes two ModuleBuses and shifts position signals for accurate module addressing, enhancing system scalability and communication integrity.
Technical Specifications
Parameter
Value
Model Number
TU843 3BSE021443R1
Manufacturer
ABB
Product Type
Compact Product Suite Termination Unit
System
S800 I/O DCS
Channels Supported
16
Process Voltage Connections
2 + 2
Max Voltage
50 V
Max Current per Channel
3 A
Mechanical Key Positions
36 (4 keys total)
Mounting Type
DIN Rail
Grounding
Mechanical Latch
Dimensions (L×W×H)
18.5 × 13 × 6.5 cm
Weight
0.62 kg
HS Code
8537101190
Origin
Sweden
Condition
Brand New
Availability
In Stock
MOQ
1 Unit
Applications & Compatibility
The ABB TU843 3BSE021443R1 is ideal for industrial automation systems requiring high-density signal termination and reliable module addressing. It supports 3-wire field connections and integrates seamlessly with ABB S800 I/O modules.
