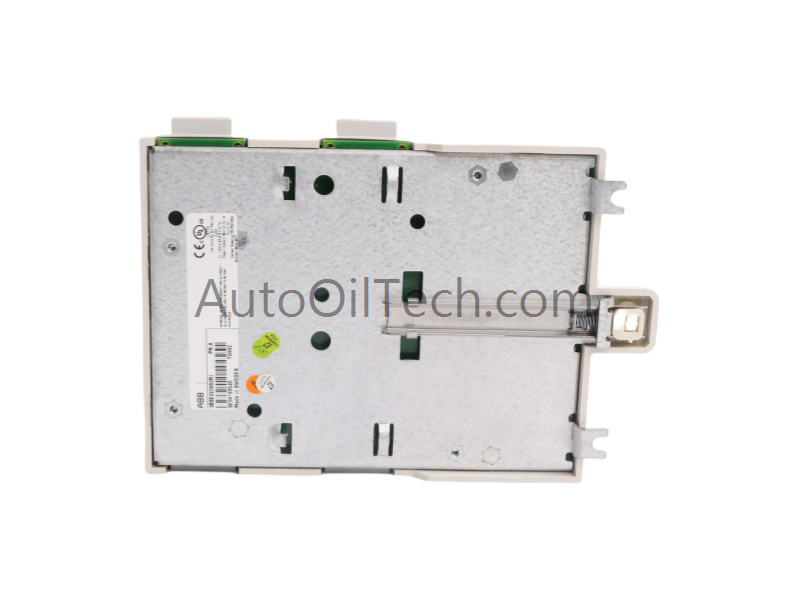

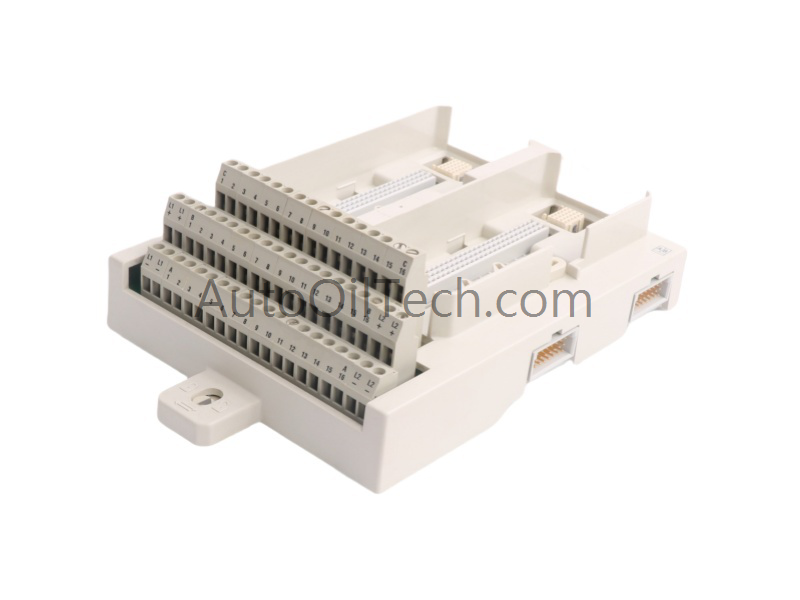

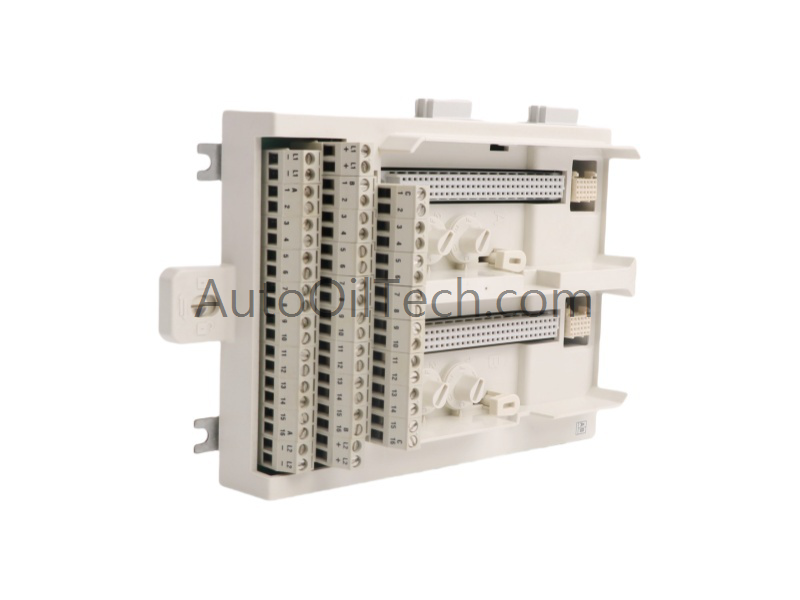

The ABB TU842 3BSE020850R1 Redundant Module Termination Unit is designed for high-reliability signal distribution in S800 I/O systems. Supporting up to 16 I/O channels and 2+2 process voltage connections, it ensures robust performance in demanding industrial environments.
Its dual ModuleBus architecture enables seamless data flow between connected modules, while mechanical keying prevents incorrect module insertion. The TU842 3BSE020850R1 is ideal for applications requiring redundancy, precision, and compact installation.
Technical Specifications
Parameter
Value
Model Number
TU842 3BSE020850R1
Manufacturer
ABB
Product Type
Redundant Module Termination Unit
System
S800 I/O DCS
Channels Supported
Up to 16
Process Voltage Connections
2 + 2
Max Voltage
50 V
Max Current per Channel
3 A
Mechanical Key Positions
36 (4 keys total)
Mounting Type
DIN Rail
Dimensions (L×W×H)
18.5 × 13 × 6 cm
Weight
0.6 kg
HS Code
8537101190
Origin
Sweden
Condition
Brand New
Availability
In Stock
MOQ
1 Unit
Applications & Compatibility
The ABB TU842 3BSE020850R1 is ideal for distributed control systems requiring redundant signal paths and secure module addressing. Its 3-wire connection support and field power distribution make it suitable for power generation, chemical processing, and manufacturing automation.
