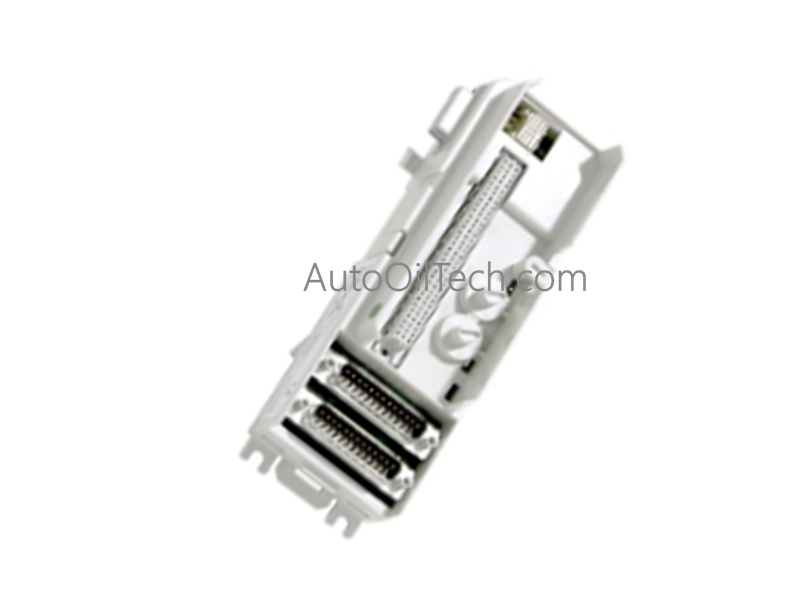

ABB TU830V1 | 3BSE013234R1 | Extended MTU

Product Overview

The TU830V1 (3BSE013234R1) is an Extended Module Termination Unit (MTU) designed for the ABB S800 I/O system. Engineered for high-density signal distribution, this unit accommodates up to 16 I/O channels. Its robust design supports both horizontal and vertical mounting orientations, providing engineers with the flexibility required for complex control cabinet configurations and reliable field-to-controller signal path management.

Technical Specifications and Performance Data

This MTU is built to handle standard industrial analog and digital signals with precision.

• Model: TU830V1

• Part Number: 3BSE013234R1

• Channel Capacity: 16 channels

• Connection Interface: Terminal block (56 process connections)

• Maximum Voltage: 50V

• Max Current per I/O Channel: 2A

• Max Current (Process Connection): 5A

• Dielectric Test Voltage: 500 V a.c.

• Redundancy: Single I/O configuration

• Operating Temperature: Up to 55°C (131°F)

• Compatible I/O Modules: Extensive S800 series support, including AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI843, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI818, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO818, DO840, DO880, DP820, and DP840

Wiring and Installation Requirements

The TU830V1 (3BSE013234R1) features precise engineering for secure, vibration-resistant terminal connections.

• Acceptable Wire Sizes: Solid 0.2–4 mm²; Stranded 0.2–2.5 mm² (24–12 AWG)

• Recommended Torque: 0.5–0.6 Nm

• Stripping Length: 7 mm
