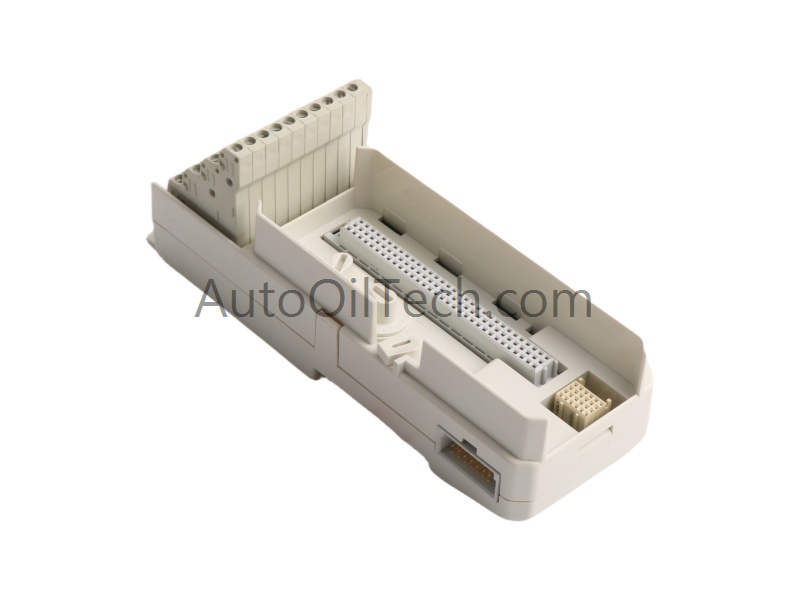

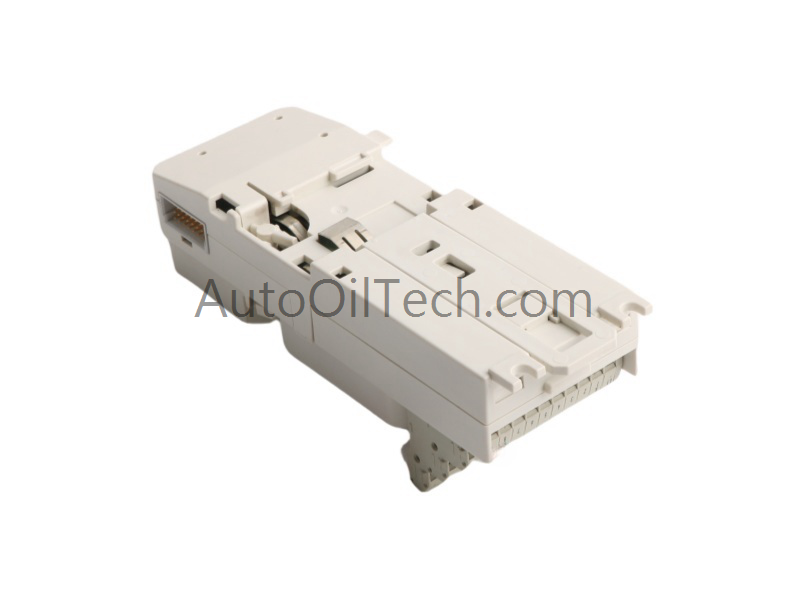

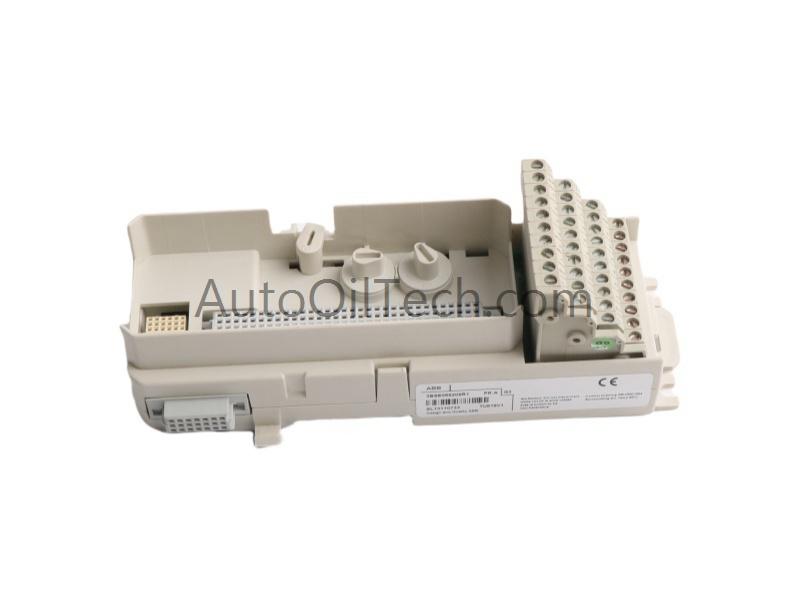

The ABB TU818V1 3BSE069209R1 Compact Module Termination Unit is engineered for efficient field wiring and signal distribution in S800 I/O systems. This passive unit supports up to 32 channels and integrates seamlessly with the ModuleBus, ensuring reliable communication across connected modules.
Its compact footprint and DIN rail mounting simplify installation in tight control cabinets. The TU818V1 3BSE069209R1 features mechanical keying to prevent incorrect module insertion, enhancing system safety and configuration accuracy.
Technical Specifications
Parameter
Value
Model Number
TU818V1 3BSE069209R1
Manufacturer
ABB
Product Type
Extended Module Termination Unit
System
S800 I/O DCS
Channels Supported
Up to 32
Max Voltage
50 V
Mechanical Key Positions
36 (6×6)
Mounting Type
DIN Rail
Dimensions (L×W×H)
6.4 × 6.5 × 17.2 cm
Weight
0.22 kg
HS Code
8537101190
Origin
Sweden
Condition
Brand New
Availability
In Stock
MOQ
1 Unit
Applications & Compatibility
The ABB TU818V1 3BSE069209R1 is ideal for distributed control systems requiring compact, high-density wiring solutions. It supports one-wire or two-wire configurations depending on the I/O module type and ensures accurate addressing via position signal shifting.
This termination unit is compatible with ABB’s S800 I/O modules and is widely used in power generation, chemical processing, and manufacturing automation. Its rugged design and modular flexibility make it a reliable choice for scalable industrial installations.
