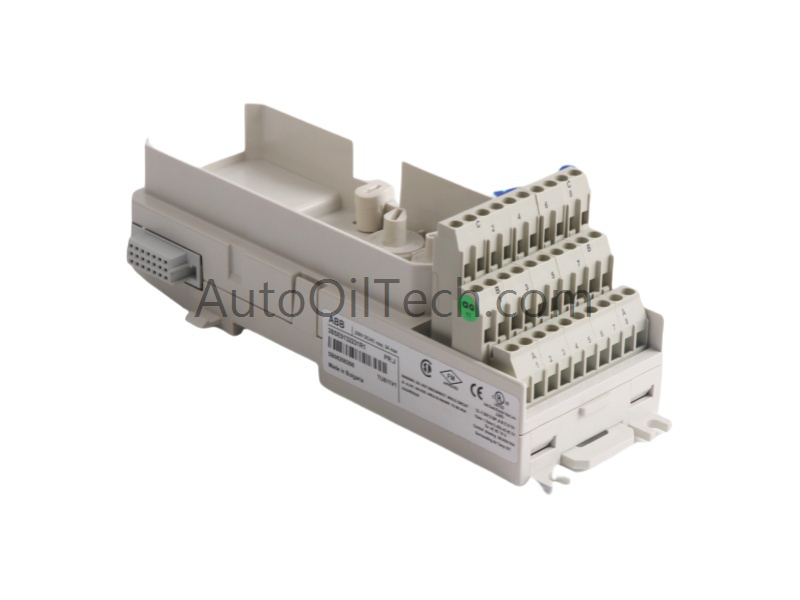

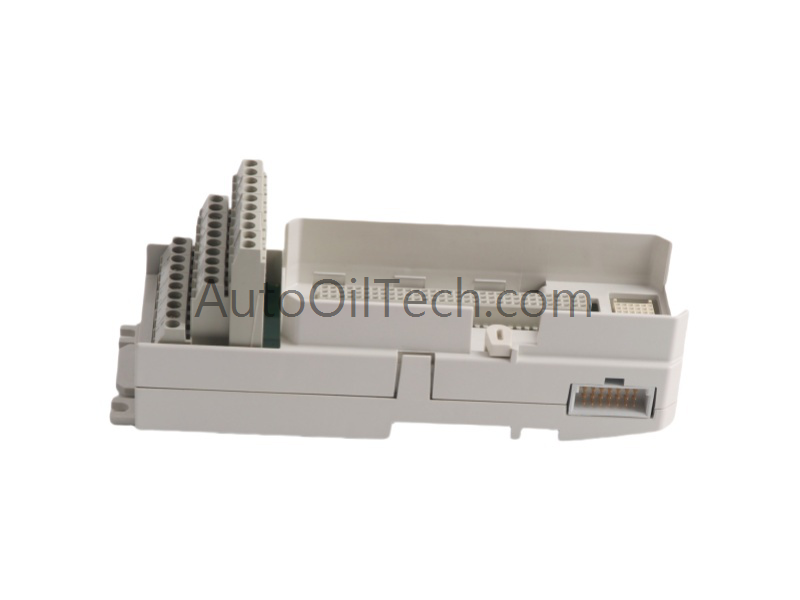

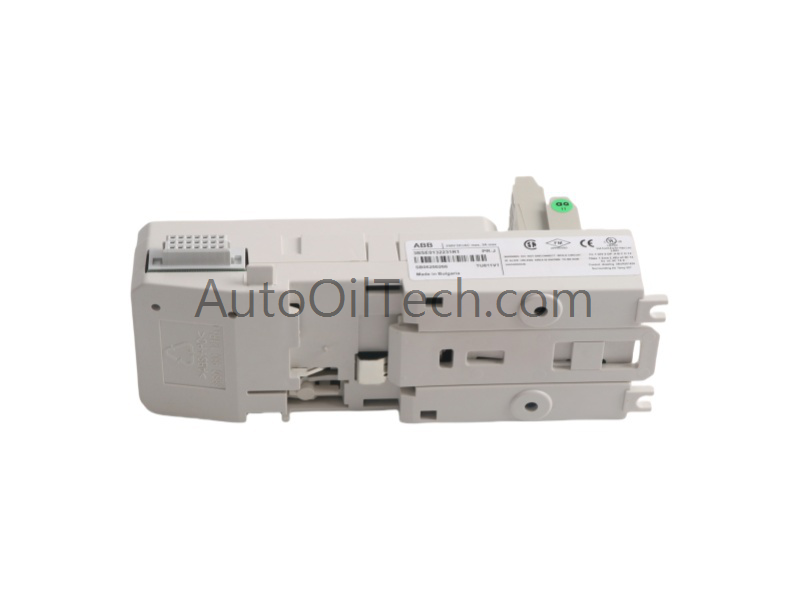

The ABB TU811V1 3BSE013231R1 Process Automation Module is a compact termination unit designed for seamless integration into S800 I/O systems. Supporting up to 8 isolated channels and 250 V field signal connections, it ensures reliable wiring and efficient data communication across distributed control networks.
This passive module distributes the ModuleBus to connected I/O units and the next MTU in sequence, while mechanically shifting position signals for accurate addressing. The TU811V1 3BSE013231R1 features dual mechanical keys with 36 configuration options, enhancing flexibility across varied automation setups.
Technical Specifications
Parameter
Value
Model Number
TU811V1 3BSE013231R1
Manufacturer
ABB
Product Type
Process Automation Module
System
S800 I/O DCS
Channels Supported
8 Isolated
Max Voltage
250 V
ModuleBus Integration
Yes
Mechanical Key Positions
36 (2 keys × 6 positions)
Mounting Type
DIN Rail
Grounding
Latching Device
Dimensions (L×W×H)
17 × 6.5 × 6.5 cm
Weight
0.18 kg
HS Code
8537101190
Origin
Sweden
Condition
Brand New
Availability
In Stock
MOQ
1 Unit
Applications & Compatibility
The ABB TU811V1 3BSE013231R1 is ideal for process automation systems requiring compact, high-voltage signal termination. It supports efficient field wiring and integrates easily with ABB S800 I/O modules, making it suitable for power generation, chemical processing, and manufacturing automation.
