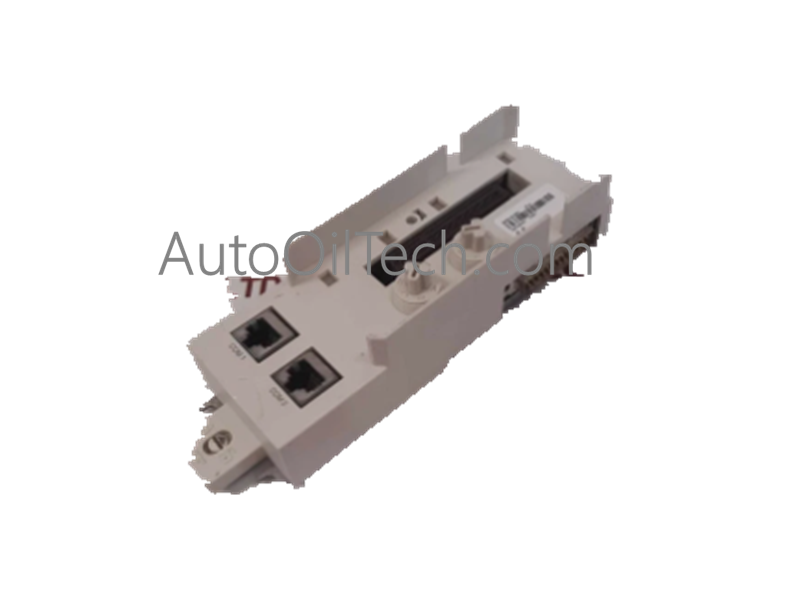

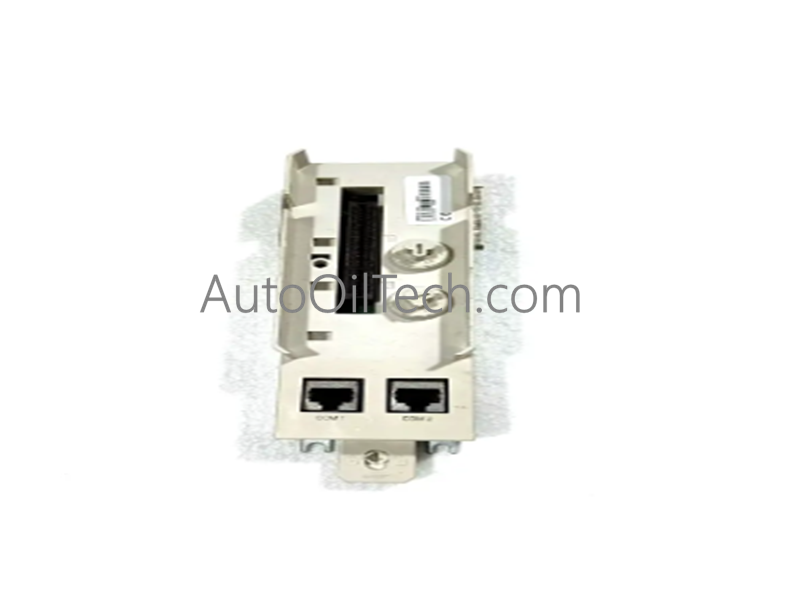

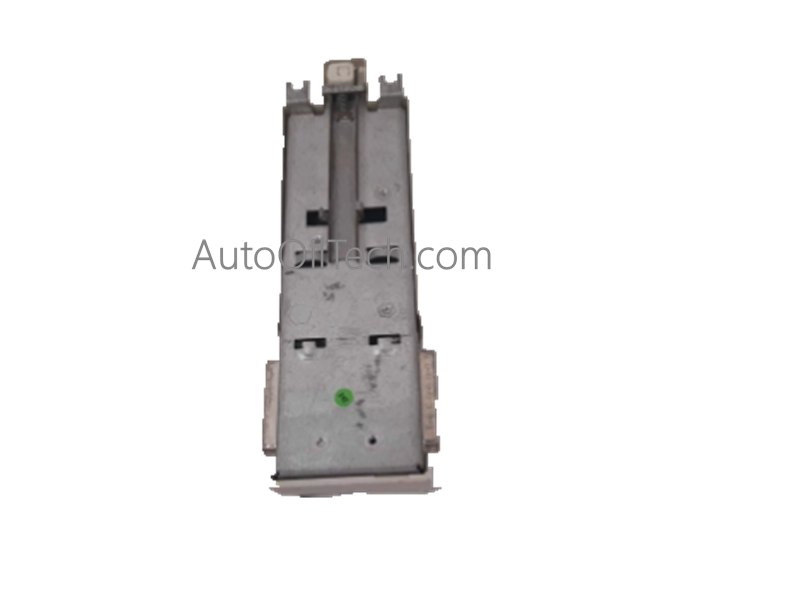

ABB TP853 3BSE018126R1 Baseplate

Product Description

The TP853 (3BSE018126R1) is a high-reliability mounting baseplate engineered for the ABB 800xA and Advant OCS distributed control systems (DCS). This essential hardware component serves as the physical and electrical interface for a variety of communication modules, including the CI853, CI855, CI857, and CI861. By providing a stable DIN-rail mounting platform and secure backplane connectivity, the TP853 ensures mechanical vibration resistance and consistent signal integrity for critical industrial automation networks.

Technical Specifications

• Manufacturer: ABB

• Model Number: TP853

• Ordering Code: 3BSE018126R1

• System Compatibility: ABB 800xA, Advant OCS, AC 800M

• Module Compatibility: CI853 (RS-232), CI855 (MB 300), CI857 (INSUM), CI861 (MODBUS TCP)

• Mounting Type: Standard DIN-rail (35mm) or Control Panel Surface Mount

• Function: Communication Module Interface and Backplane Connector

• Construction: High-impact industrial-grade polymer and conductive grounding elements

• HS Code: 85389091

• Net Weight: 0.8 kg

• Dimensions: 16 cm x 16 cm x 12 cm

• Origin: United States (US)

Operational Applications

The TP853 is utilized in the following system architectures:

• Serial Communication Links: Providing the base for CI853 modules in point-to-point RS-232 data exchange.

• Network Integration: Hosting CI861 modules to bridge AC 800M controllers with Modbus TCP/IP Ethernet networks.

• Legacy System Interfacing: Supporting MB 300 (CI855) or INSUM (CI857) modules for motor control and legacy Advant communication.
