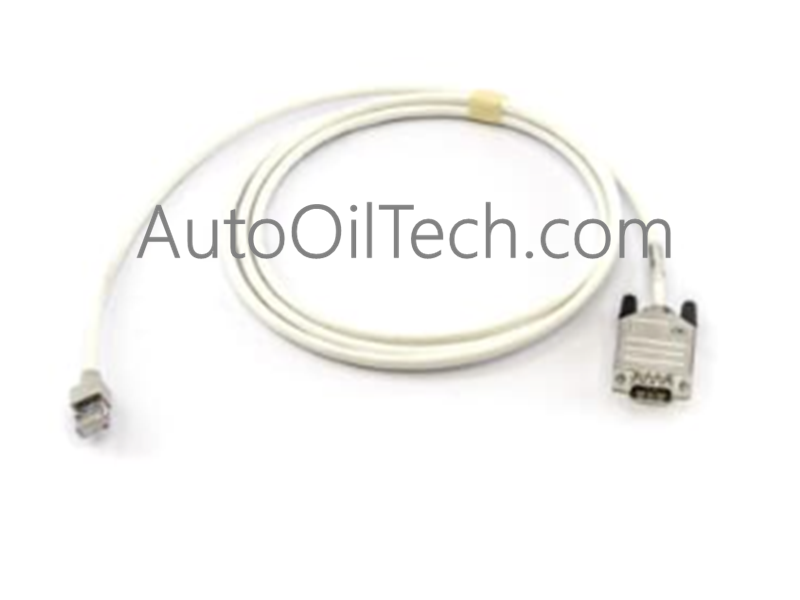

ABB TK853V020 3BSC950201R1 Modem Serial Cable

Technical Overview

The TK853V020 (3BSC950201R1) is a 2-meter prefabricated modem cable designed for the ABB AC 800M controller system. It is specifically engineered to bridge the serial interface on the TP830 baseplate with the TC562 modem. This cable ensures stable, low-latency serial data transmission for remote communication and telemetry applications, featuring industrial-grade shielding to maintain signal integrity in environments with significant electrical noise.

Detailed Technical Specifications

• Manufacturer: ABB

• Article Number: 3BSC950201R1

• Model Identification: TK853V020

• Product Type: Prefabricated Serial/Modem Cable

• Length: 2.0 meters (2000 mm)

• Net Weight: 0.14 kg

• Cable Diameter: 7 mm

• Connection Path: Connects TC562 Modem to TP830 Terminal Base

• Voltage Rating: For a voltage not exceeding 1000V

• HS Code: 854442 (Fitted with connectors)

Key Features

• Targeted Compatibility: Specifically wired for the proprietary pin-out requirements of the ABB TC562 modem and TP830 serial port.

• Industrial Shielding: Protects data packets from electromagnetic interference (EMI) when routed through cable trays alongside power lines.

• Plug-and-Play: Factory-molded connectors ensure a secure, "click-to-fit" connection, reducing commissioning time and field-wiring errors.

• Optimized Reach: The 2-meter length provides sufficient slack for mounting modems in separate cabinet sections while maintaining a tidy internal layout.
