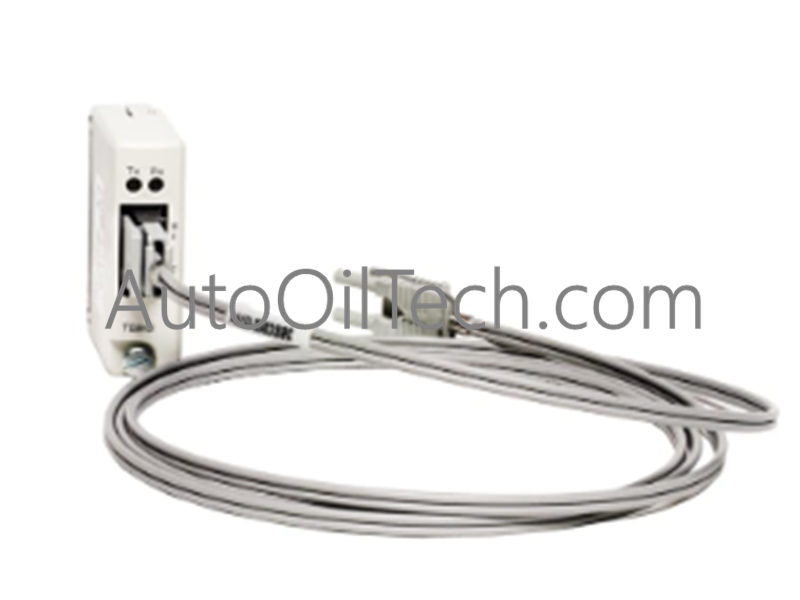

ABB TK801V003 3BSC950089R1 Extension Cable

Technical Overview

The TK801V003 (3BSC950089R1) is a specialized 0.3-meter extension cable for the ABB S800 I/O system. It is designed to bridge the electrical ModuleBus between separate DIN rails, allowing for flexible cabinet layouts without breaking communication. When used in conjunction with bus outlets and inlets (TB805/TB845 and TB806/TB846), this cable maintains the integrity of the high-speed bus, enabling I/O modules to be distributed across multiple rows within a control panel.

Detailed Technical Specifications

• Manufacturer: ABB

• Article Number: 3BSC950089R1

• Model Identification: TK801V003

• Compatible System: S800 I/O

• Length: 0.3 m (approx. 11.8 inches)

• Weight: 0.155 kg

• Bus Interface: ModuleBus (Electrical)

• Required Accessories: Must be used with TB805/TB845 (Outlet) and TB806/TB846 (Inlet)

• Mechanical Standard: S800 mechanics for DIN rail mounting

Typical Applications

• Multi-Rail I/O Configurations: Extending the ModuleBus from one DIN rail to the next in densely packed control cabinets.

• Modular Cabinet Design: Organizing I/O clusters by function across different physical locations within the same enclosure.

• Distributed S800 Stations: Connecting a local cluster of I/O modules to a communication interface located on a different rail.

• Space Optimization: Allowing for vertical or horizontal bus expansion to fit specific cabinet dimensions.
