- ABB TEIP11 Signal Converter Module
Sale

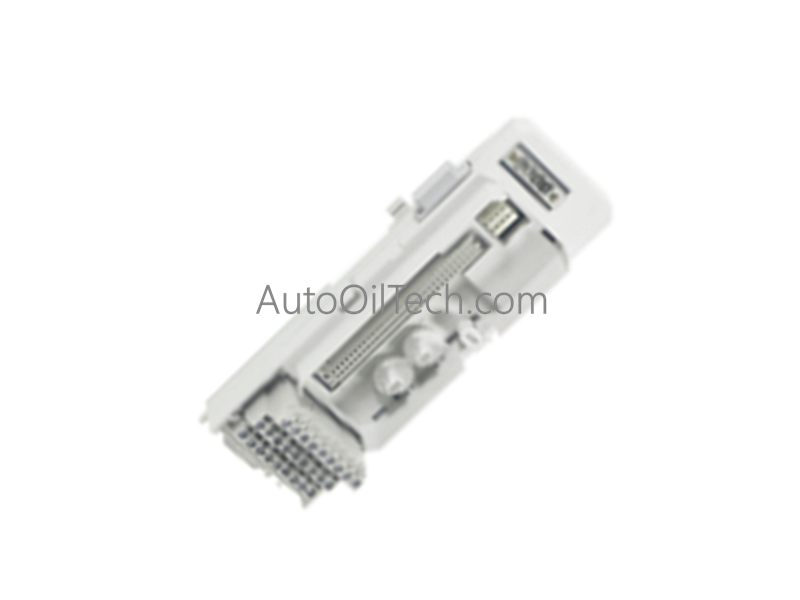

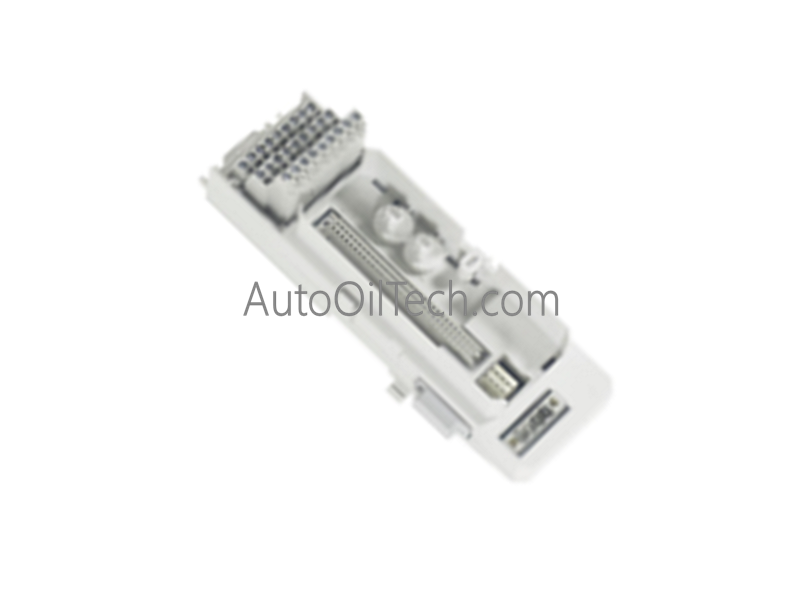

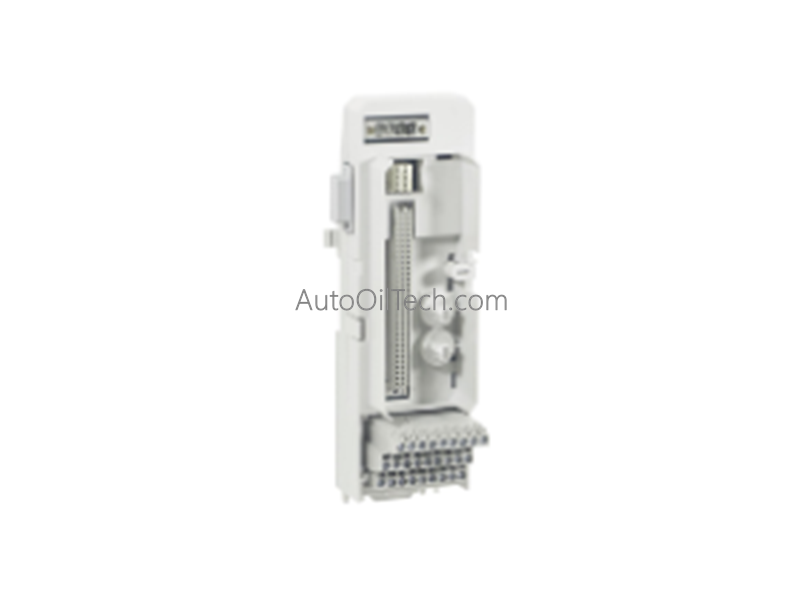

ABB TEIP11 Signal Converter Module
No reviews
In stock!
- Part Number: TEIP11
- Brand: ABB
- Type: Signal Converter Module
- Dimensions: 116x2.5x2cm
- Country of Origin: USA
- Barcode: 8537101190
Share
Additional Specifications
| Color / Pattern |
|
| Power Source |
|
| Communication Protocols |
|
| Controller Design |
|
Product Description
The ABB TEIP11, also cataloged as the TEIP11 Signal Converter Module, operates as a dedicated hardware component for electro-pneumatic signal conversion within process control and distributed automation networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TEIP11 |
| Brand | ABB |
| Origin | Germany |
| Product Type | Signal Converters |
| Conversion Principle | Electro-pneumatic (I/P) signal conversion |
| Input Signal | 4-20 mA DC standard loop |
| Output Signal Range | 0.2 to 1 bar (3 to 15 psi) nominal pneumatic pressure |
| Air Supply Pressure | 1.4 to 10 bar (20 to 145 psi) dependent on configuration |
| Linearity Error | Less than or equal to 0.5% of full scale span |
| Hysteresis | Less than or equal to 0.3% of full scale span |
| Temperature Drift | Less than or equal to 0.5% per 10 deg C shift |
| Hazardous Area Certifications | ATEX, FM, CSA intrinsically safe and flameproof options |
| Operating Temperature | -40 to 85 deg C |
| Dimensions | Compact cylindrical or block format housing options |
| Weight | 0.85 kg |
Profinet / EtherNet/IP Deterministic Networks and Driver Integration
The signal converter bridges electronic control networks with pneumatic execution devices, mapping the standard 4-20 mA current loop to proportional air pressure profiles. This conversion loop operates via physical force-balance mechanics, eliminating digital processing latencies and providing real-time positioning feedback to the overarching loop layout. While the device executes analog pneumatic adjustments natively, downstream pressure metrics interface with higher-level control nodes via fieldbus heads connected across Profinet or EtherNet/IP deterministic networks. This topology optimizes backplane bus communication velocity by treating the analog loop as a steady-state node, allowing scalable I/O density configurations while maintaining complete firmware flash compatibility with localized instrument manager tools.
Frequently Asked Questions
Q: What are the primary air quality prerequisites for the pneumatic supply port?
A: The TEIP11 converter requires high-purity instrument air conforming to the ISO 8573-1 specification. The air must be filtered down to 5 microns, oil-free, and dried to a dewpoint at least 10 deg C below the lowest expected ambient temperature to prevent internal nozzle fouling.
Q: How does the module handle extreme vibration profiles in heavy machinery spaces?
A: The TEIP11 mechanical balance system is physically ruggedized to withstand continuous vibration transients up to 2 g across a 10 to 150 Hz spectrum, mitigating signal distortion or unintended pressure fluctuations on the output loop.
