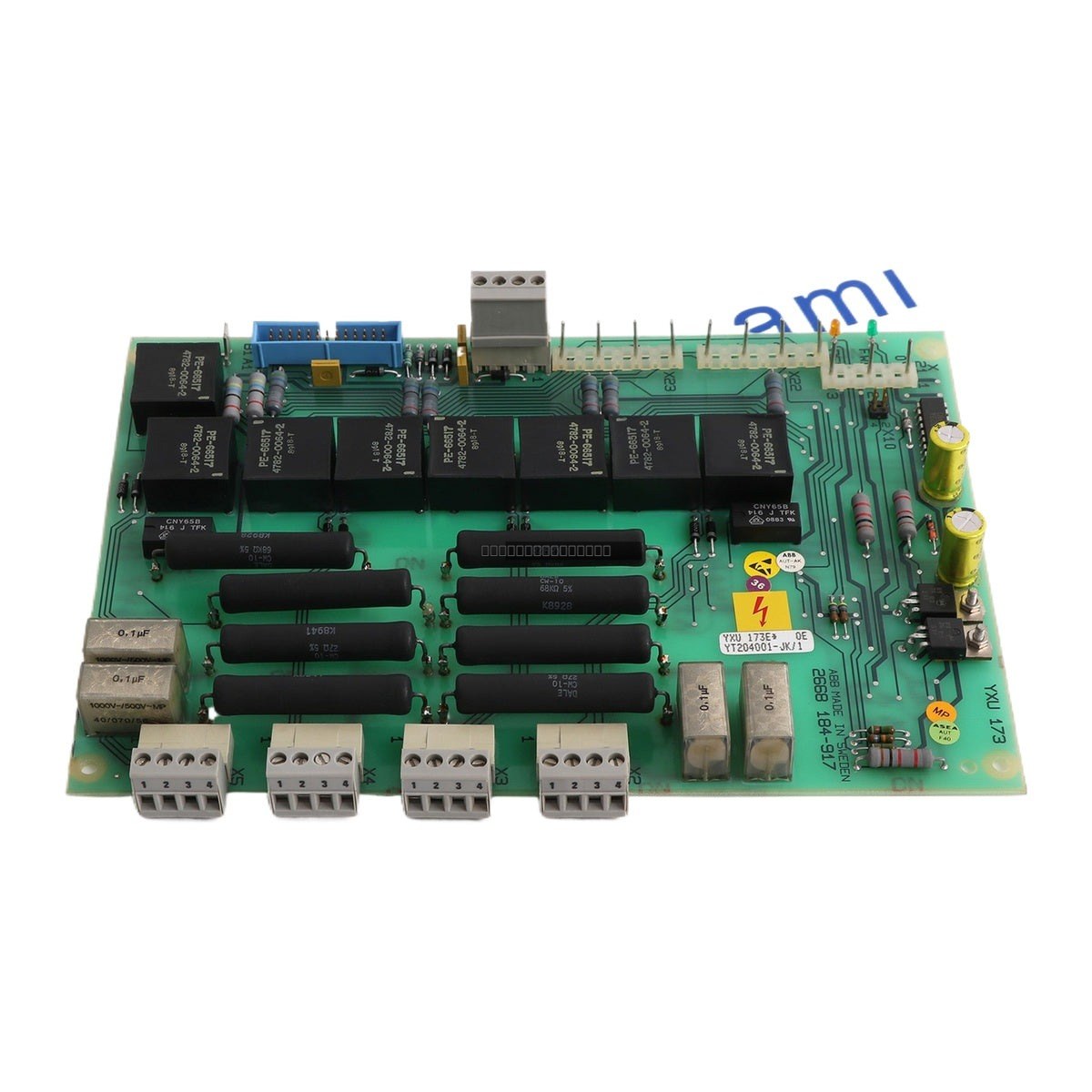

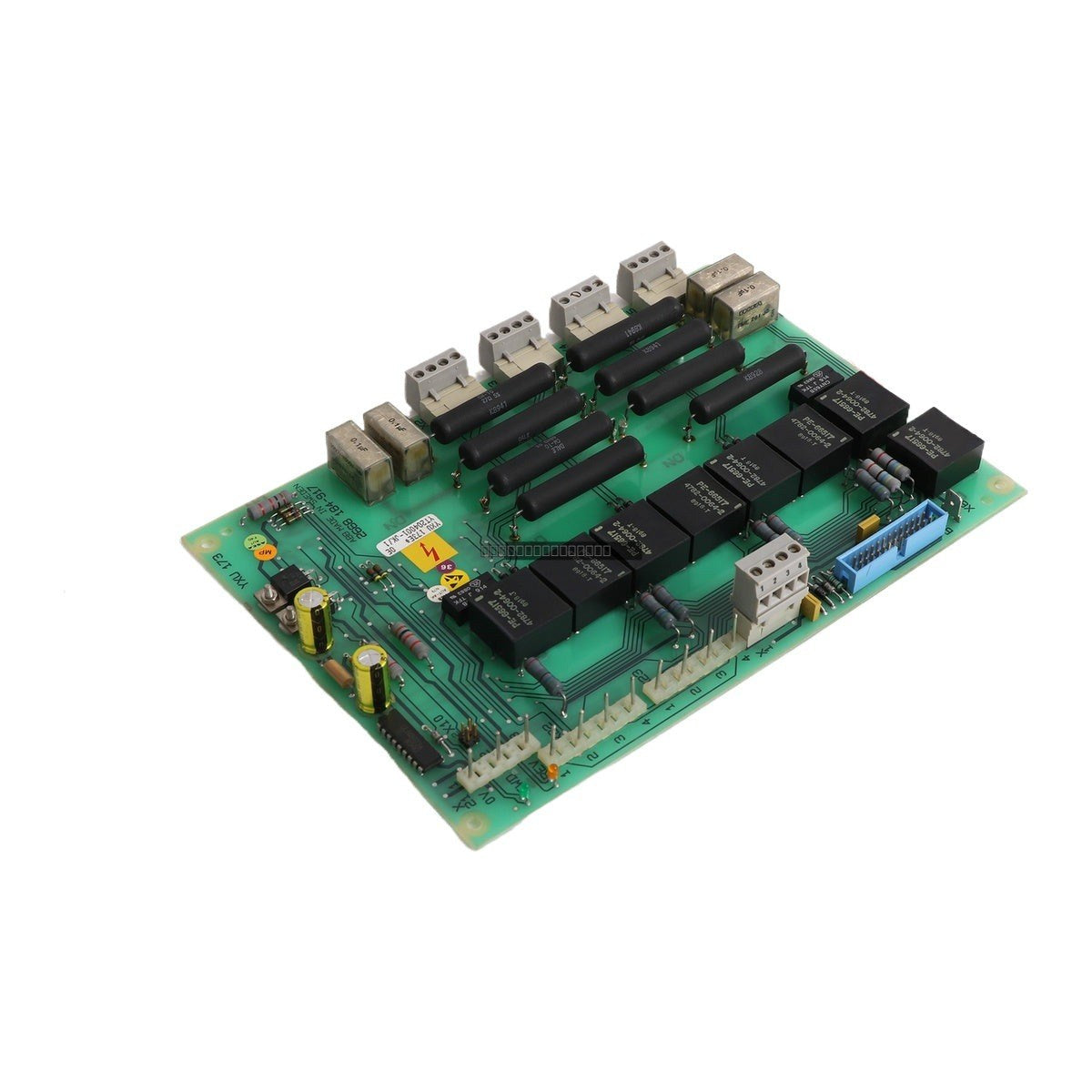

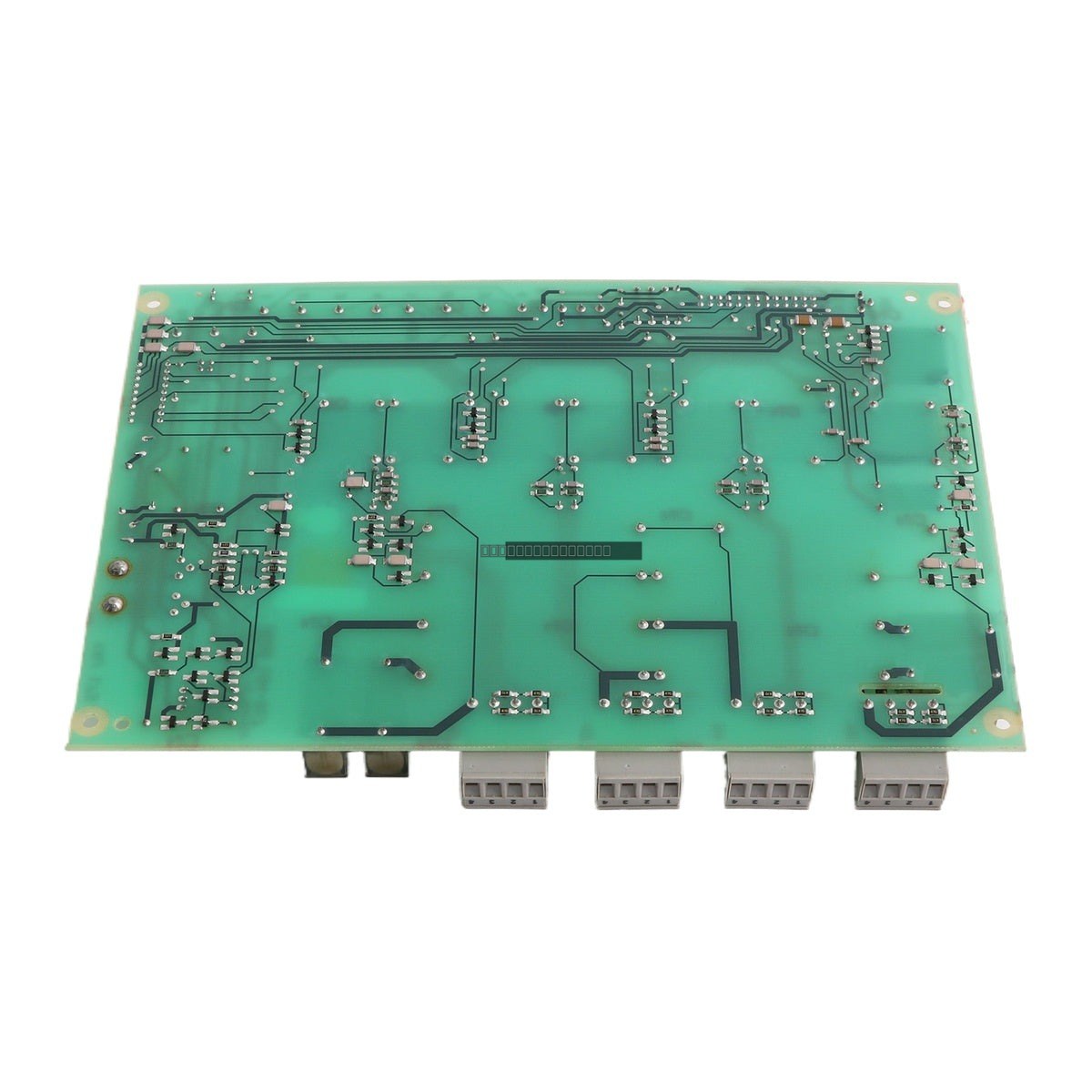

The ABB YXU173E (Order Code: YT204001-JK) is a specialized pulse transformer control unit designed for industrial power electronics and control systems. This PC board serves as a critical interface component, facilitating precise signal processing and pulse generation within ABB control architectures. It is engineered to maintain signal integrity in demanding environments, ensuring reliable communication between the control logic and power switching stages.
Features
Integrated pulse transformer circuitry for signal isolation and impedance matching.
High-resolution control capabilities suitable for complex power regulation tasks.
Robust design intended for integration into standard ABB control cabinets and rack systems.
Designed for high-reliability industrial operation.
Applications
This module is typically utilized in industrial power conversion systems, variable frequency drives, and heavy-duty control applications where pulse width modulation and signal isolation are required to manage high-voltage switching components.
Technical Specifications
Product Model
YXU173E YT204001-JK
Component Type
Pulse Transformer Control Unit / PC Board
Manufacturer
ABB
PWM Resolution
16-bit
Digital I/O
24x (5-30V DC)
Isolation Rating
3000Vrms
Operating Temperature
-40 degC to +85 degC
Tariff Code
8537101190
Installation Guidelines
Ensure the system power is fully disconnected before installing or removing the PC board to prevent electrical damage or injury.
Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive onboard components.
Verify that the board is securely seated in its designated slot and that all edge connectors are clean and free of debris.
Ensure adequate ventilation within the cabinet to maintain the operating temperature within the specified -40 degC to +85 degC range.
Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal accuracy.
FAQ
Is this board compatible with other ABB series?
The YXU173E is a specific component designed for particular ABB control systems. Please verify your system's parts list or the original equipment manual to ensure compatibility with your specific drive or control unit model.
What should I do if the module shows a communication error?
First, verify that the board is firmly seated in the backplane. Check for any physical damage to the connectors or traces. If the error persists, ensure that the input voltage levels (5-30V DC) are within the specified range and that there is no external interference affecting the signal lines.
