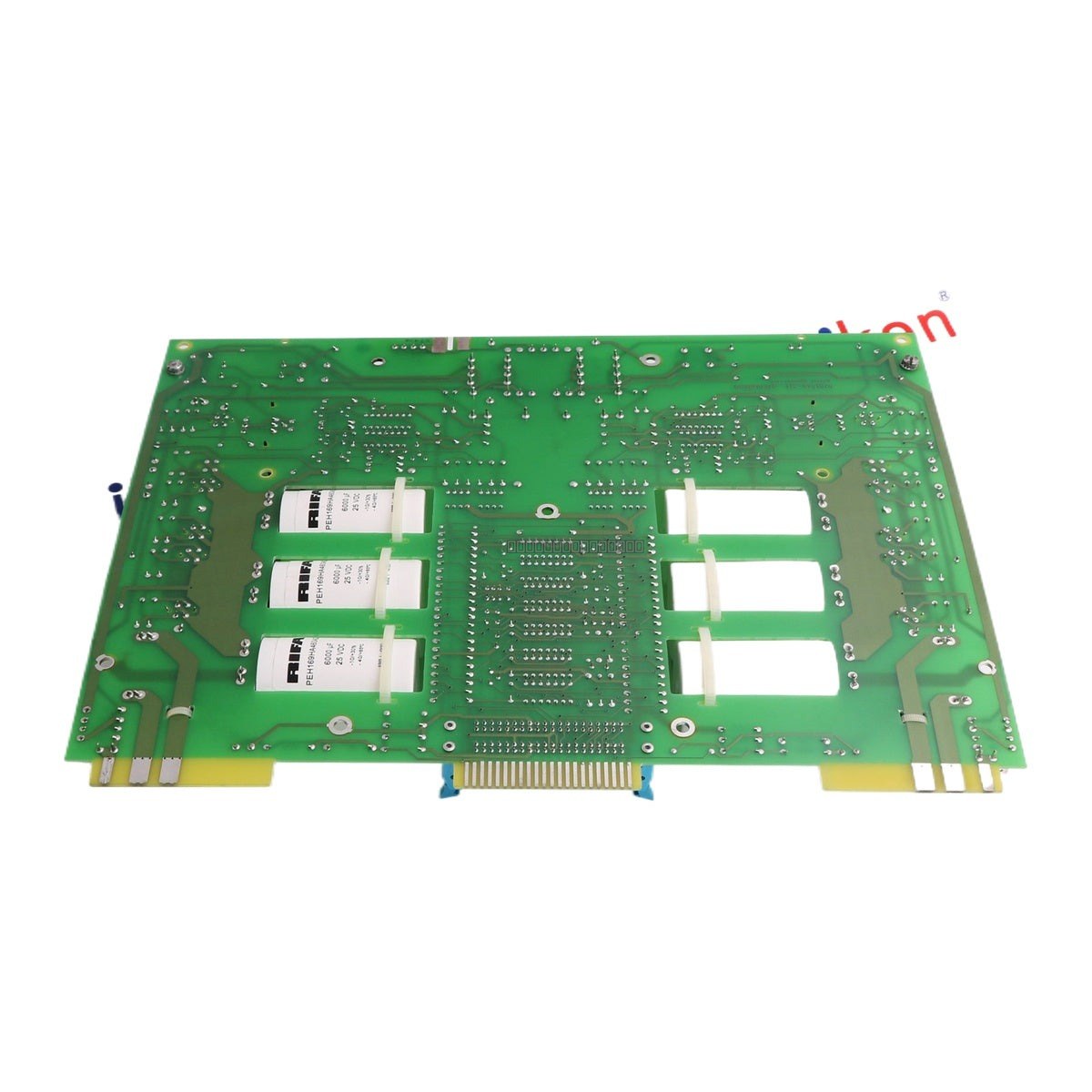

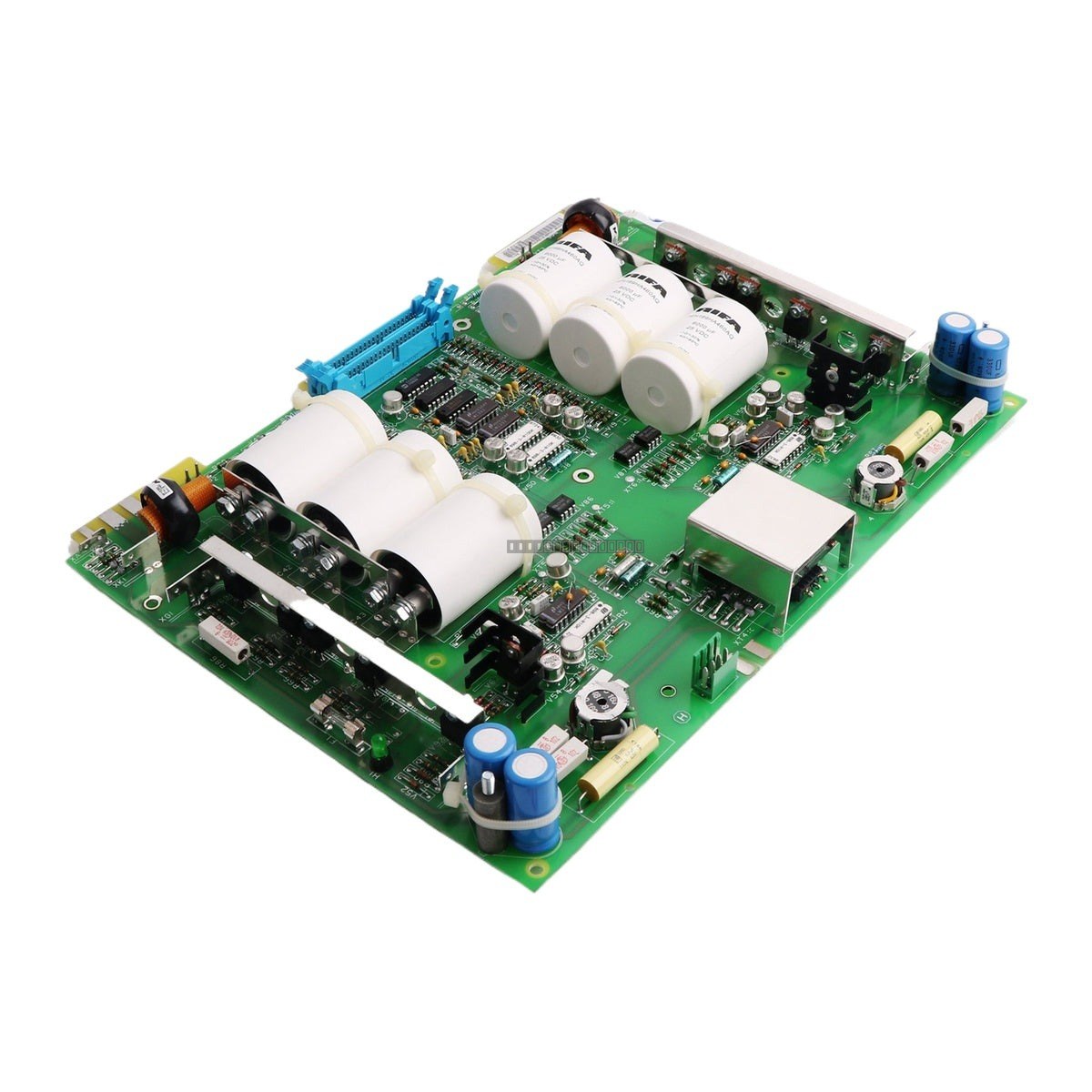

The ABB SAFT123PAC is a pulse amplifier board designed for industrial control and power electronics applications. This component serves as a critical interface for signal amplification, ensuring precise control and reliable switching performance within the associated drive or power conversion system.
Features
Robust pulse amplification circuitry for industrial reliability
Designed for high-performance signal processing
Standardized mounting and interface configuration for ABB systems
Durable construction suitable for demanding control environments
Technical Specifications
Product Model
SAFT123PAC
Component Type
Pulse Amplifier Board
Current Rating
6.3 Amp
Voltage Rating
250 V
Manufacturer
ABB
Installation Guidelines
Ensure the control system is fully de-energized before attempting to install or remove the pulse amplifier board.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to sensitive electronic components.
Verify that the board is securely seated in the designated slot or mounting assembly to ensure proper electrical contact.
Check all terminal connections for tightness and ensure no debris or conductive material is present in the mounting area.
Maintain adequate ventilation around the module to prevent overheating during operation.
Ensure that the input and output signal wiring is routed away from high-voltage power cables to minimize electromagnetic interference (EMI).
FAQ
What is the primary function of the SAFT123PAC board?
The SAFT123PAC is an amplifier board used to boost pulse signals within an ABB control system, ensuring that downstream components receive the correct signal levels for operation.
Is this board compatible with other ABB systems?
This board is specific to certain ABB drive and power control architectures. Please verify your system's spare parts list or the original equipment manual to ensure compatibility with your specific hardware configuration.
What precautions should be taken during installation?
Always power down the system before installation, use anti-static protection, and ensure the board is firmly seated in its rack or housing to prevent intermittent connection issues.
