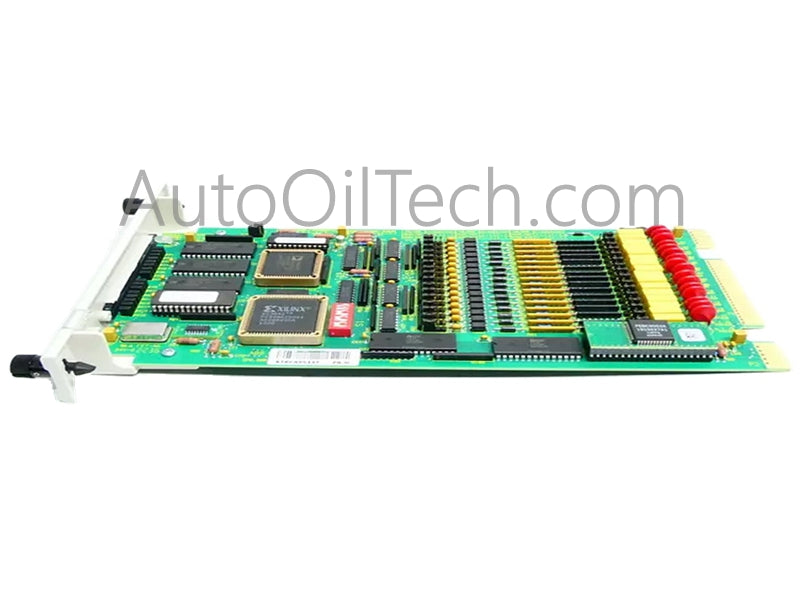

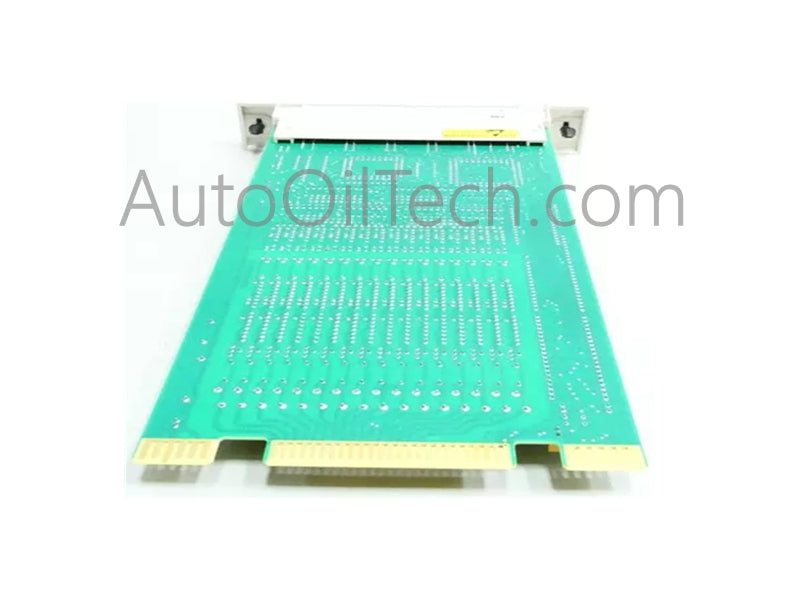

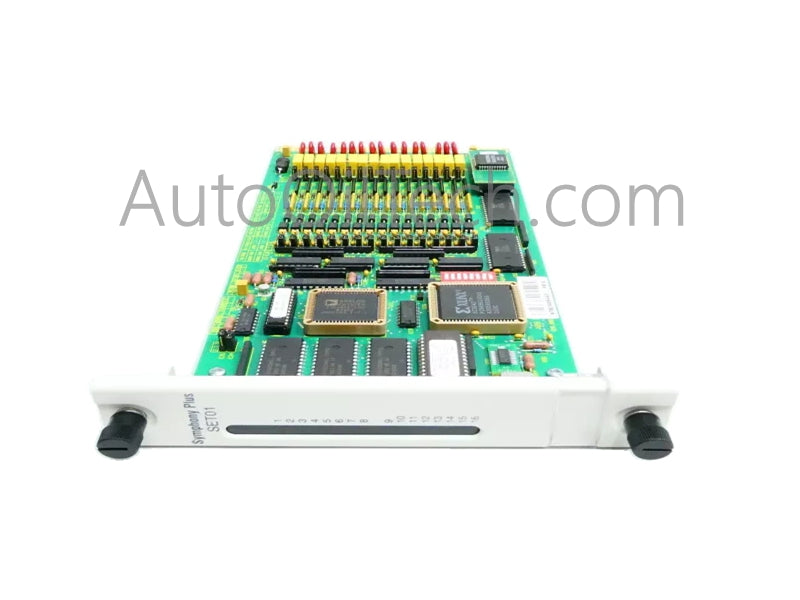

The ABB SPSET01 SOE DI and Time Synchronization Module is a high-precision input unit designed to provide the first 16 digital inputs along with accurate time synchronization for BRC controllers. This module ensures reliable event recording and seamless integration into ABB’s Sequence of Events (SOE) systems.
Technical Specifications:
Model: SPSET01
Type Designation: SPSET01
Product Type: I/O Module
Catalog Description: SOE DI and Time Synch Module, 16 CH
Dimensions:
Depth/Length: 76.2 mm
Height: 358.14 mm
Width: 279.4 mm
Channels:
Type: Digital Input (DI)
Number of Input Channels: 16
Battery:
Quantity: 0 (no operational battery required)
Service Battery: 1 lithium button cell, 5 g (for internal clock backup)
Applications: The SPSET01 module is widely used in power generation plants, substations, and industrial automation systems where precise digital input monitoring and time synchronization are critical for diagnostics, compliance, and operational safety.
FAQ:
Q: How many digital inputs does the SPSET01 provide?A: It supports 16 digital input channels.
Q: What is the role of the time synchronization feature?A: It ensures high-accuracy event logging by synchronizing with the BRC controller.
Q: Does the module require external batteries?A: No operational batteries are required; only a small lithium button cell is used for clock backup.
