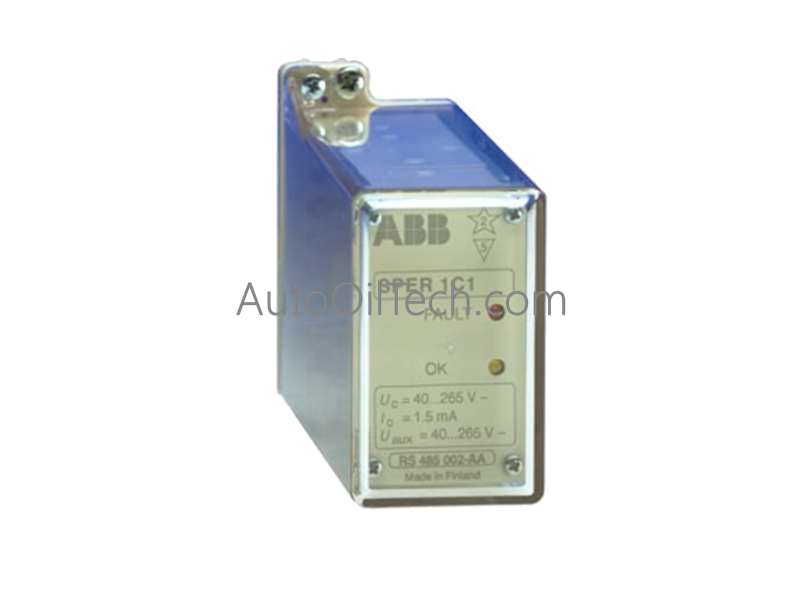

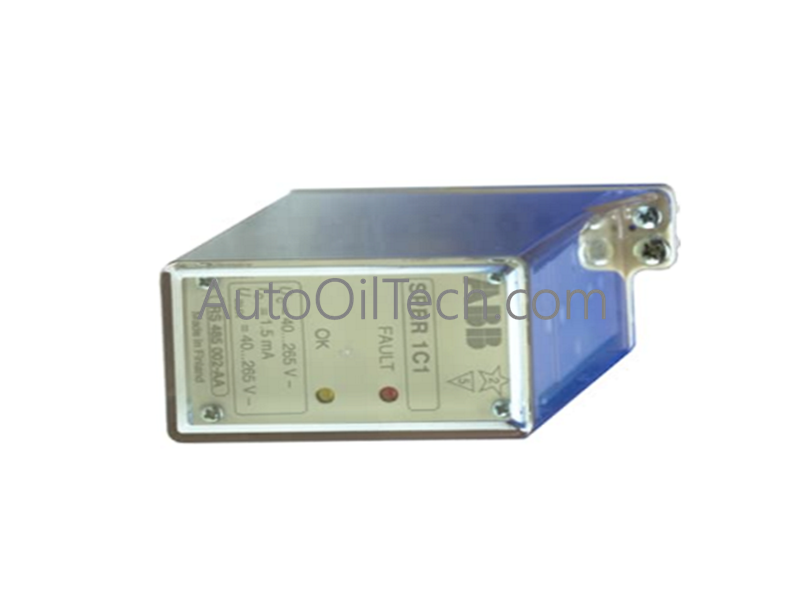

ABB SPER 1C1 Trip Circuit Supervision Relay

The ABB SPER 1C1, also cataloged as the SPER 1C1 Trip Circuit Supervision Relay, operates as a dedicated hardware component for continuous electrical loop verification and trip circuit monitoring within power electrical installation platforms.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks and Driver Integration

The supervision relay monitors physical circuit-breaker and disconnector control lines by running a low-current measuring loop through the trip coil circuit when the breaker is open or closed. This monitoring loop detects hardware failures without adding processing latency or accidental trip energy to the protection circuit. Auxiliary logic signals pass natively to higher-level automation terminals over Profinet or EtherNet/IP deterministic networks via standard binary input cards. This layout allows real-time status updates to scale smoothly across different I/O densities, while full firmware flash compatibility at the host terminal tier ensures immediate reporting of trip loop failures back to the centralized control room.

Frequently Asked Questions

Q: How does the preset operate time function during a normal circuit-breaker operation?

A: The relay incorporates an internal time delay circuit. When a standard trip command executes, the brief interruption in the trip loop current is ignored by the relay's internal timing block, preventing false alarm signals during normal breaker state transitions.

Q: Can a single SPER 1C1 module monitor multiple branches of a divided trip circuit?

A: Generally, one supervision relay handles one independent circuit. However, if a control circuit branches into multiple parallel paths, several SPER 1C1 relays can have their input loops connected across the same common supply layout to isolate faults.
