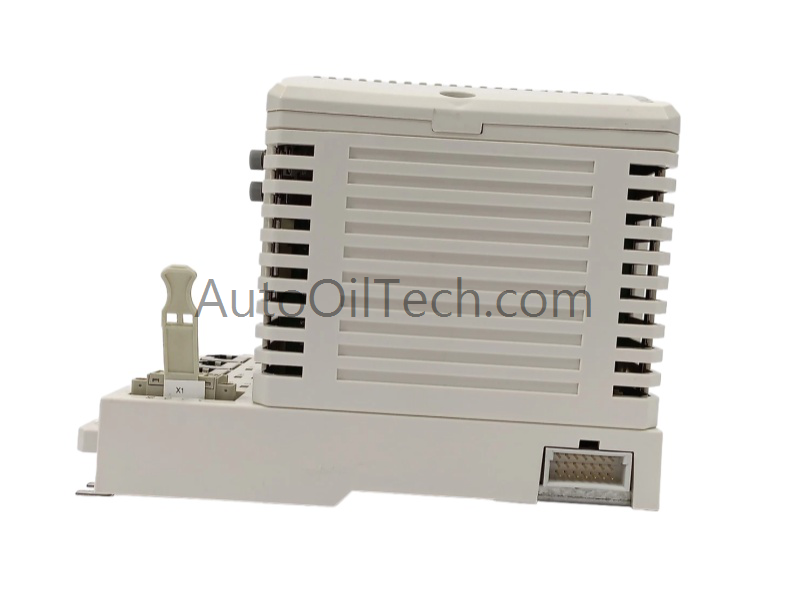

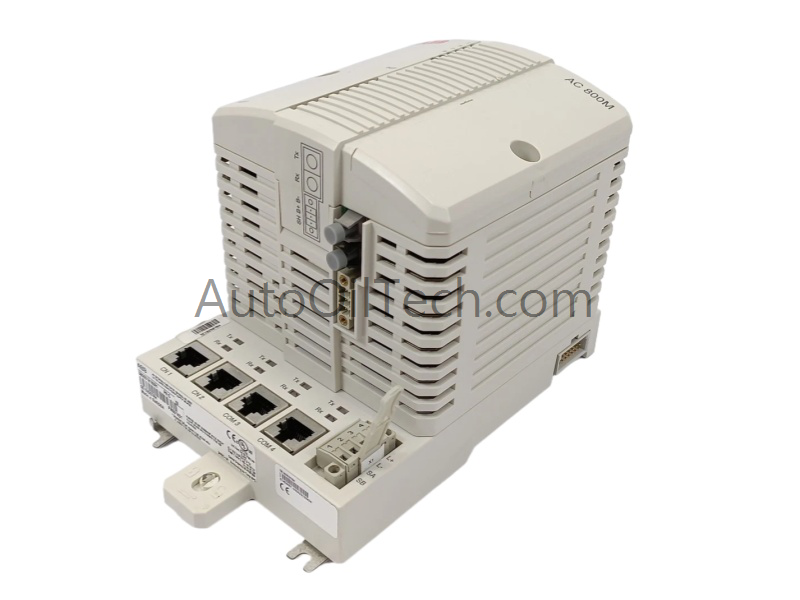

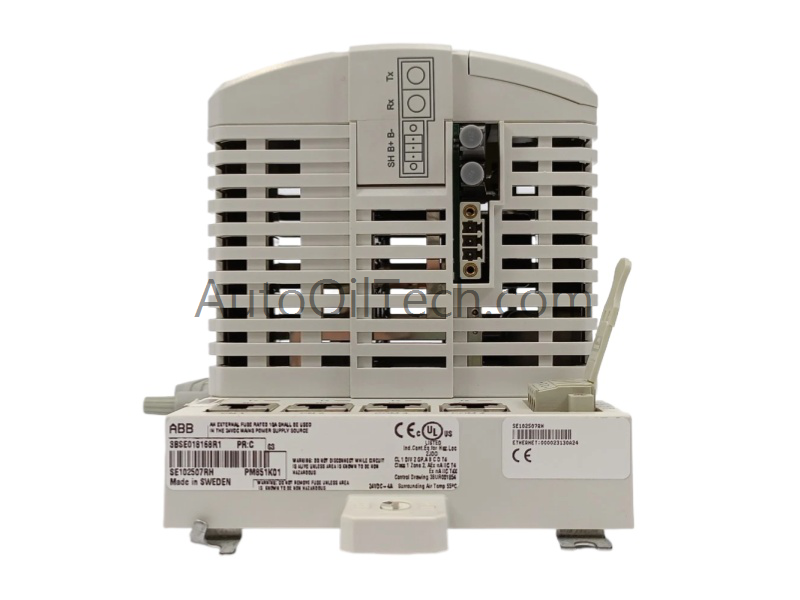

The ABB SM812K01 3BSE072270R1 Safety CPU Module is a high-performance controller designed for integration with PM857, PM863, and PM867 PLCs in Advant-800xA systems. It delivers precise control and robust safety features for demanding industrial automation and process control environments.
This module includes the SM812 CPU, TP868 baseplate, and TK852V10 synchronization link cable, offering a complete deployment package. With reinforced isolation, multiple I/O channels, and energy-efficient operation, the SM812K01 ensures safe and scalable automation.
Technical Specifications
Parameter
Value
Model Number
SM812K01 3BSE072270R1
Manufacturer
ABB
Product Type
Safety CPU Module
System
Advant-800xA DCS
Compatible PLCs
PM857, PM863, PM867
Digital Inputs
3 × 24 V DC
Digital Outputs
2 × 24 V DC
Isolation Rating
250 V AC
Power Supply
24 V DC
Typical Consumption
0.8 A
Inrush Current
2 A for 100 µs
Operating Temp (Horizontal)
0 to +55 °C
Operating Temp (Vertical)
0 to +45 °C
Storage Temp
-40 to +70 °C
Humidity Tolerance
5–95% RH, non-condensing
Dimensions (L×W×H)
18.5 × 8.5 × 30.5 cm
Weight
1.08 kg
HS Code
8537101190
Origin
Sweden
Condition
Brand New
Availability
In Stock
MOQ
1 Unit
Applications & Compatibility
The ABB SM812K01 3BSE072270R1 is ideal for safety-critical automation in manufacturing, energy, and infrastructure sectors. It integrates seamlessly into AC 800M HI control systems, offering reliable performance, flexible I/O, and enhanced protection.
