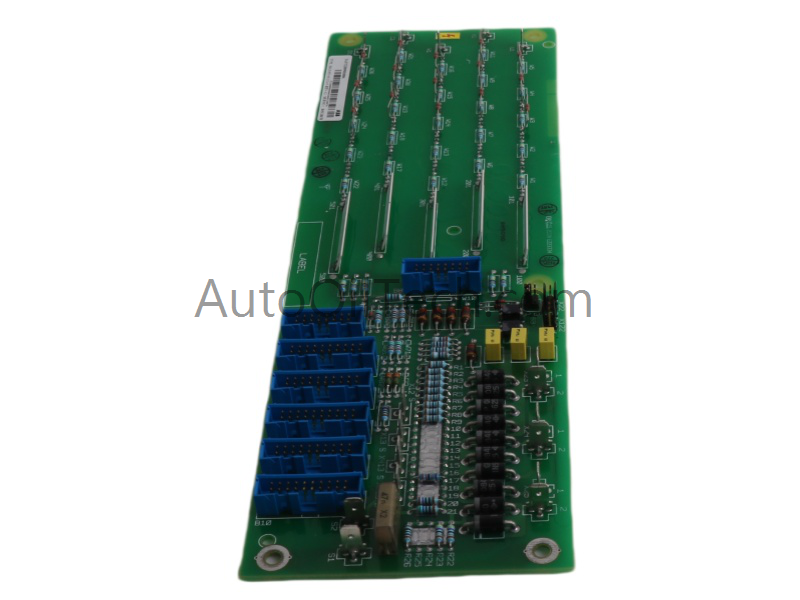

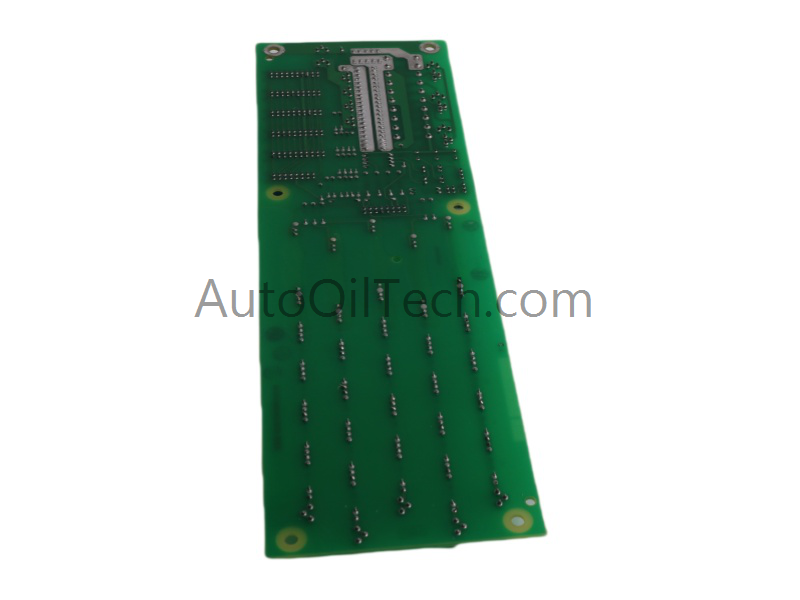

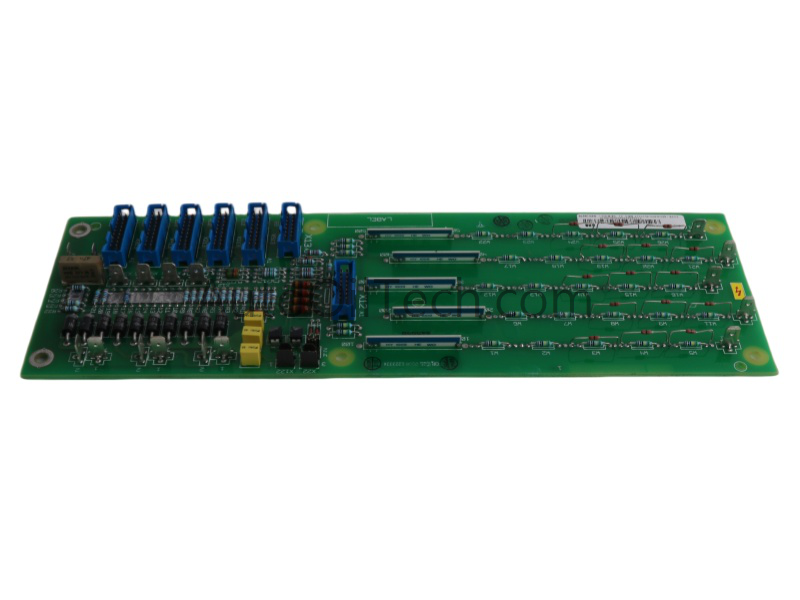

The ABB SDCS-PIN-51-COAT (3ADT220090R0006) is a high‑precision measurement card designed for Advant OCS/800xA distributed control systems (DCS). Engineered with military‑grade components and a proprietary nano‑coating, this module delivers laboratory‑grade accuracy and long‑term reliability in harsh industrial environments.
Key Technical Specifications
Model / Part Number:SDCS-PIN-51-COAT (3ADT220090R0006)
Manufacturer: ABB
Product Type: Measurement Card
Product Family: Advant OCS / 800xA series
System Compatibility: DCS systems
Dimensions: 33.7 × 11.7 × 8.5 cm
Weight: 0.35 kg
Country of Origin: Sweden
HS Code: 8537101190
Minimum Order Quantity: 1 unit
Condition: Brand New
Availability: In stock
Lifecycle Status: Active
Communication: Ethernet diagnostics/configuration (not a router)
Functional Highlights
±0.1% signal integrity across 51 coated contacts.
Proprietary nano‑coating protects against moisture, dust, and chemical corrosion.
25% greater contact stability compared to standard models.
SmartDock technology for tool‑free installation.
Adaptive firmware reduces commissioning time by 40%.
Hot‑swappable in redundant configurations for minimal downtime.
Embedded diagnostics and 15‑year component lifecycle.
Applications
Continuous process industries: oil & gas, chemical, power generation, water treatment.
High‑vibration environments requiring stable signal integrity.
Mission‑critical automation systems needing long‑term measurement accuracy.
Retrofit and expansion of Advant OCS/800xA DCS installations.
FAQ
Q: What does “COAT” indicate in the part number? A: It refers to the proprietary nano‑coating that protects against corrosion and environmental stress.
Q: Is this product discontinued? A: No, it is active and available.
Q: Can the card be hot‑swapped? A: Yes, it supports hot‑swapping in redundant configurations.
Q: What is the expected lifecycle? A: Approximately 15 years with embedded diagnostics for long‑term reliability.
