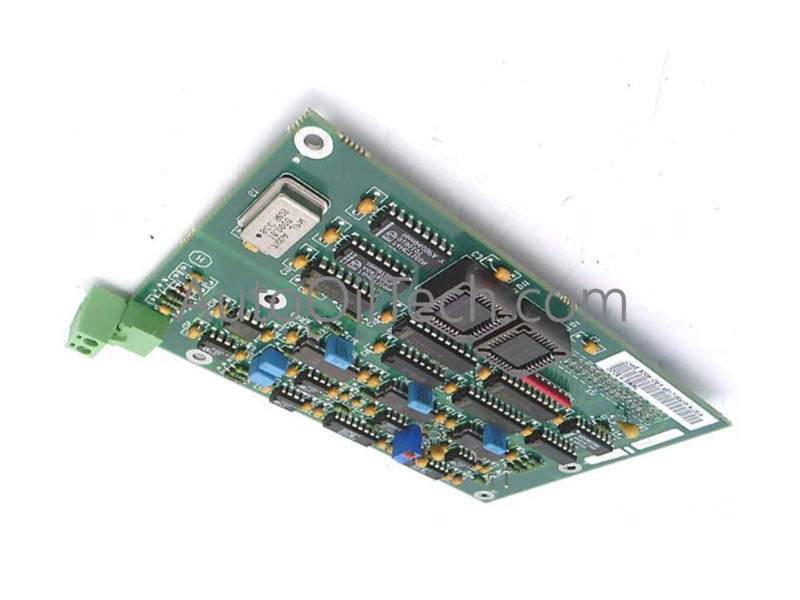

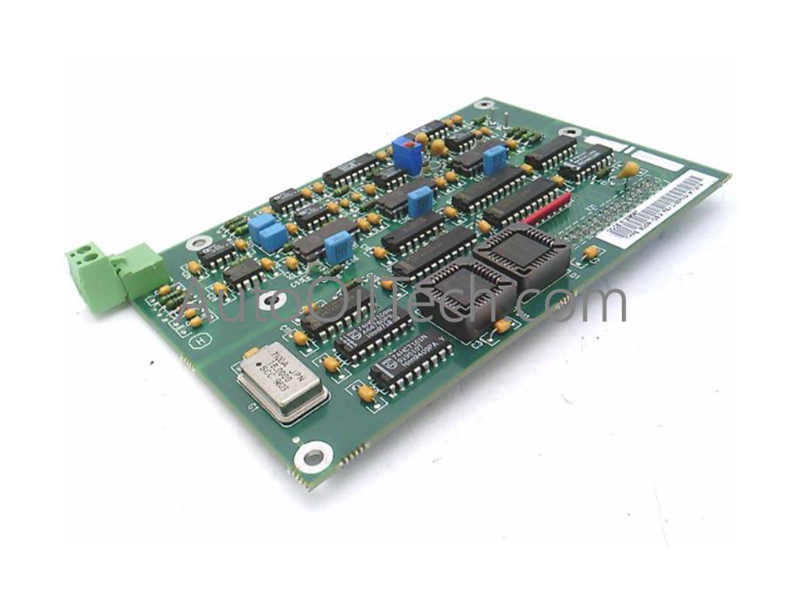

ABB SDCS-IOE-2 Measuring Circuit Board

The ABB SDCS-IOE-2, also cataloged as the SDCS-IOE-2 Measuring Circuit Board, operates as a dedicated hardware component for high-precision analog measurement, signal attenuation, and I/O expansion within DCS500 and DCS600 series DC industrial drive platforms.

Hardware Specifications

Drive Core Architecture and Signal Integration

The SDCS-IOE-2 plugs directly into the internal control hub of the industrial DC drive, running real-time signal attenuation and voltage tracking tasks. This direct board connection processes high-voltage armature feedback and tachometer metrics, scaling the electrical inputs down to logic levels without adding processing latency to the drive's main speed regulator board. These conditioned measurement arrays are transmitted across the drive's shared backplane or routed over distributed networks using Profinet or EtherNet/IP deterministic networks via the master fieldbus head adapter. This architecture lets the drive maintain precise high-density I/O configurations while keeping full firmware flash compatibility for real-time torque mapping adjustments.

Frequently Asked Questions

Q: What primary monitoring role does the SDCS-IOE-2 board handle inside the DC drive?

A: The board functions as an isolated measurement interface. It scales down high-voltage signal feedback from the armature circuit, field winding voltage rails, or external analog velocity transmitters, sending safe low-voltage differential signals to the primary processor board.

Q: Can this add-on board be hot-swapped while the DC drive is energized?

A: No. Removing or inserting the SDCS-IOE-2 board while power is applied can trigger severe inductive arcs across the multi-pin headers, destroying the micro-scale logic components on the measuring card and the drive's main control board.
