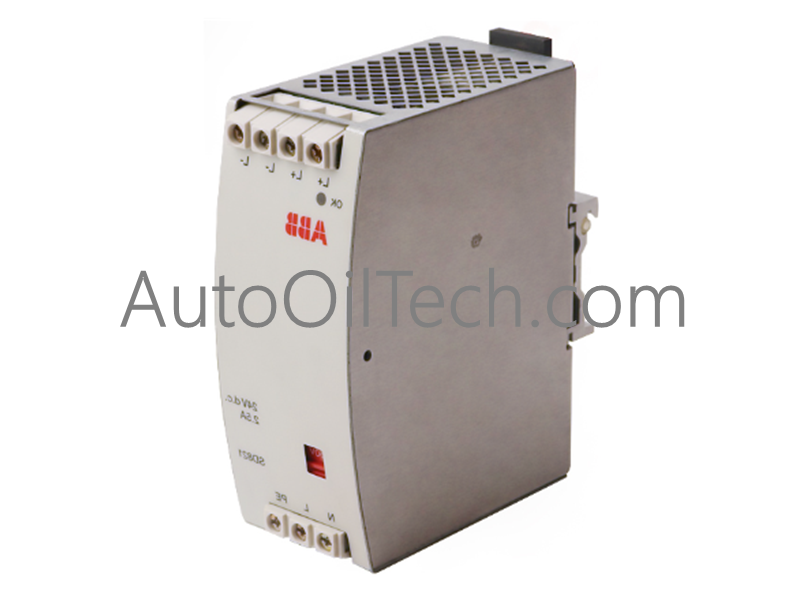

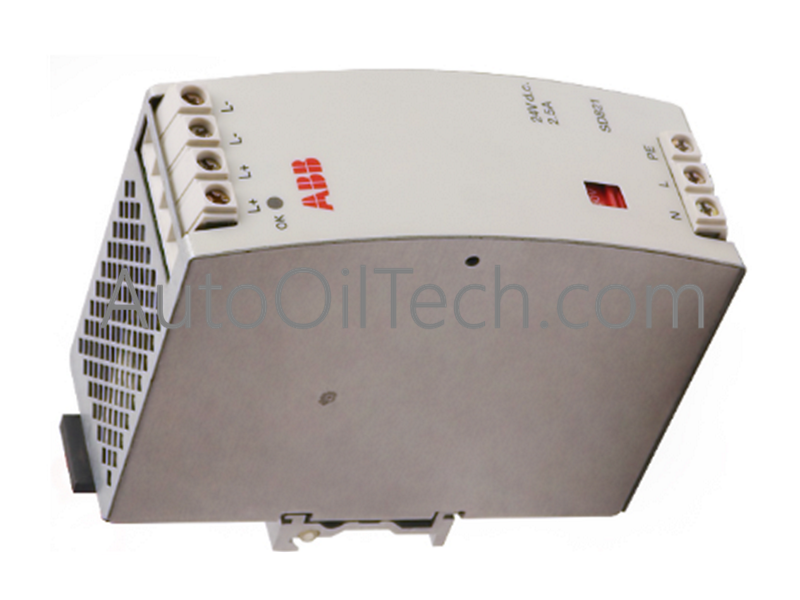

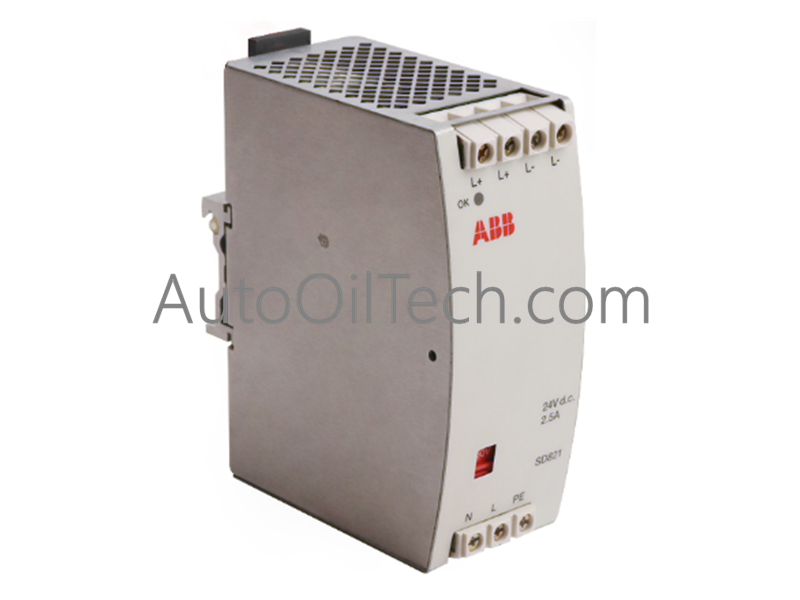

TheSD821(3BSC610064R1) is a high-efficiency power conversion module designed for the S800 I/O system and associated PLC/DCS architectures. It provides a stabilized 24V DC output from a broad AC input range, utilizing a switch-selectable configuration to adapt to global power standards. This unit is engineered to maintain consistent voltage regulation and low ripple noise, ensuring the operational longevity of sensitive controller electronics in demanding industrial environments.
Technical Specifications
Brand:ABB
Model Designation:SD821
Part Number:3BSC610064R1
Device Type:Switch-Mode Power Supply (SMPS)
Input Voltage (Nominal):100–240 V AC
Input Range Selection:115 V / 230 V AC (Manual slider switch)
Output Voltage:24 V DC
Output Current:2.5 A
Rated Power Capacity:60 W
Conversion Efficiency:>85% at nominal load
Mounting Configuration:35mm DIN Rail (IEC 60715)
Operating Temperature:-10°C to +60°C (14°F to 140°F)
Dimensions (W x H x D):51 mm x 127 mm x 102 mm (2.0 in x 5.0 in x 4.0 in)
Net Weight:0.5 kg (1.1 lbs)
Status Indication:Integrated "Output OK" LED
Engineering Insights and System Integration
TheSD821(3BSC610064R1) is prioritized for small-to-medium scale automation nodes. By separating the input and output stages through high-performance galvanic isolation, it protects the logical backplane of the S800 I/O clusters from line-side transients. Its slim 51mm profile allows for higher density within the control cabinet, while the integrated DIN rail clip provides a secure, vibration-proof mount. The manual voltage selector is a critical safety feature; technicians must ensure the switch matches the local utility grid (115V vs 230V) prior to commissioning to prevent hardware damage.
