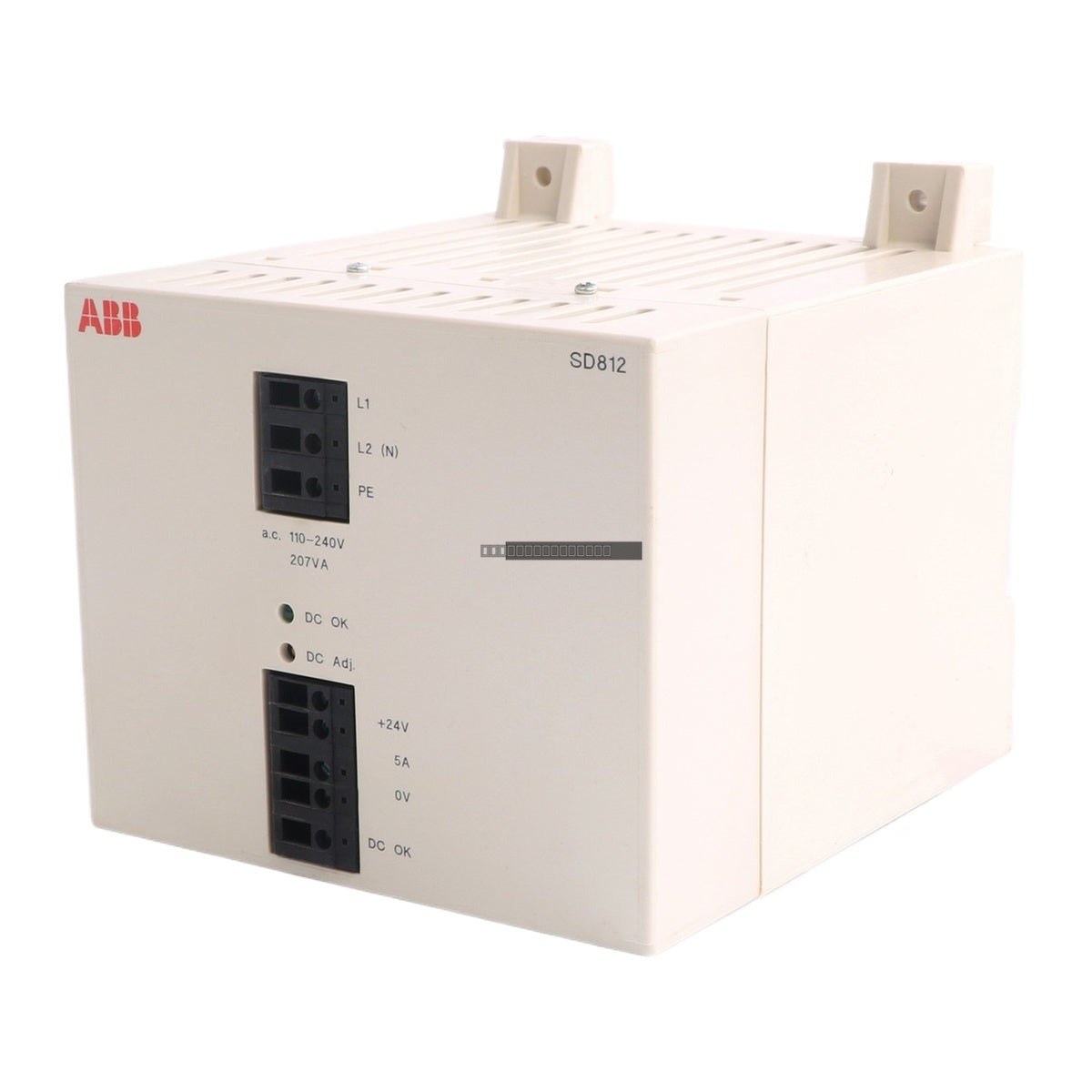

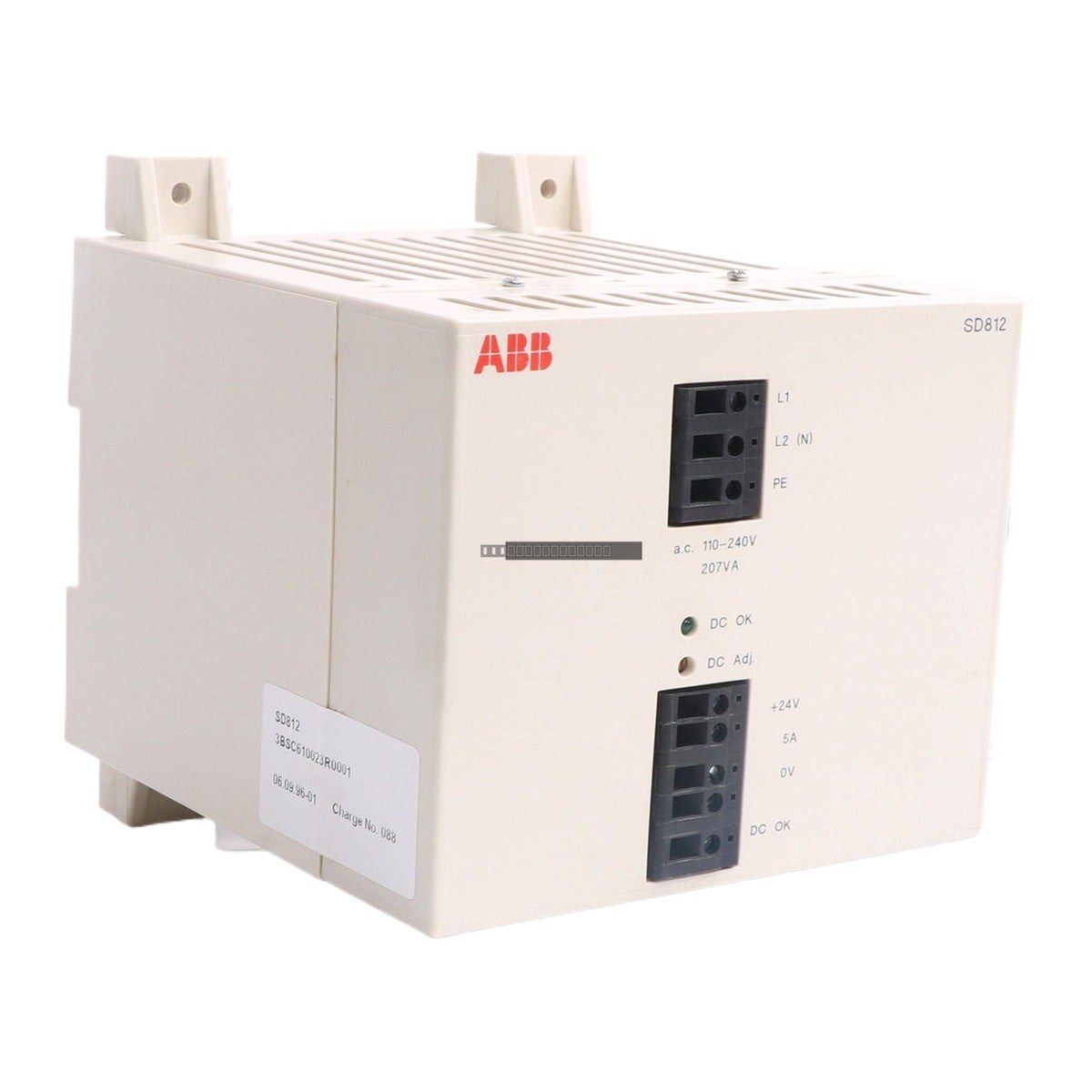

The ABB SD812 is a power supply core module designed for industrial control applications. This unit, identified by order code 3BSC610023R1, serves as a critical component in power distribution and management within the ABB automation ecosystem. Please note that this specific model has been discontinued by the manufacturer; the recommended replacement is 3BSC610045R9.
Features
Reliable power supply core functionality for industrial automation systems.
Engineered for integration within ABB control architectures.
Robust construction suitable for demanding industrial environments.
Technical Specifications
Product Model
SD812
Order Code
3BSC610023R1
Spare Model
3BSC610023R0001
Manufacturer
ABB
Weight
0.92 kg
Installation Guidelines
Ensure the system power is completely disconnected before attempting to install or remove the module.
Handle the module using proper ESD (Electrostatic Discharge) protection protocols to prevent damage to internal circuitry.
Verify that the mounting environment meets the required thermal and vibration specifications for the rack or cabinet.
Ensure all terminal connections are secure and properly torqued according to standard industrial wiring practices.
Maintain adequate clearance around the module to facilitate proper airflow and cooling.
FAQ
Is the SD812 still available from the manufacturer?
No, the ABB SD812 (3BSC610023R1) has been discontinued by the manufacturer.
What is the recommended replacement for the SD812?
The manufacturer recommends using the replacement model 3BSC610045R9 for new installations or system upgrades.
