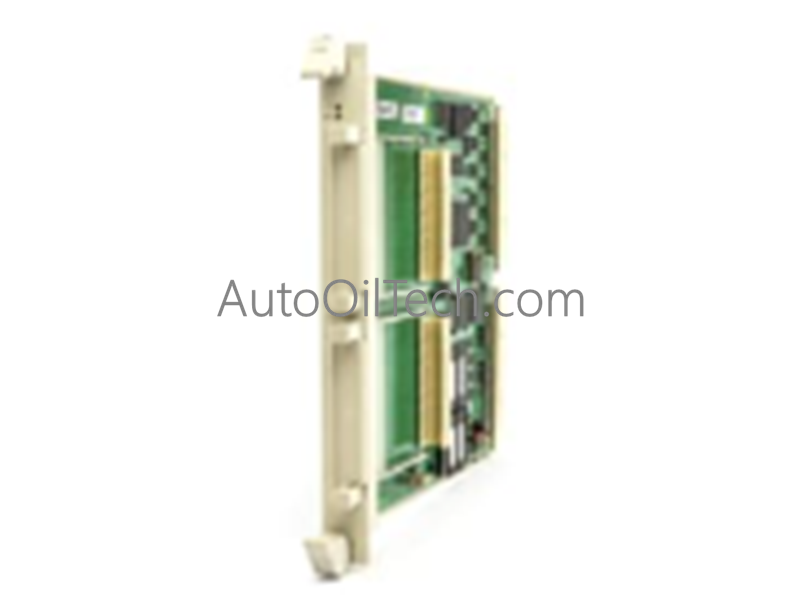

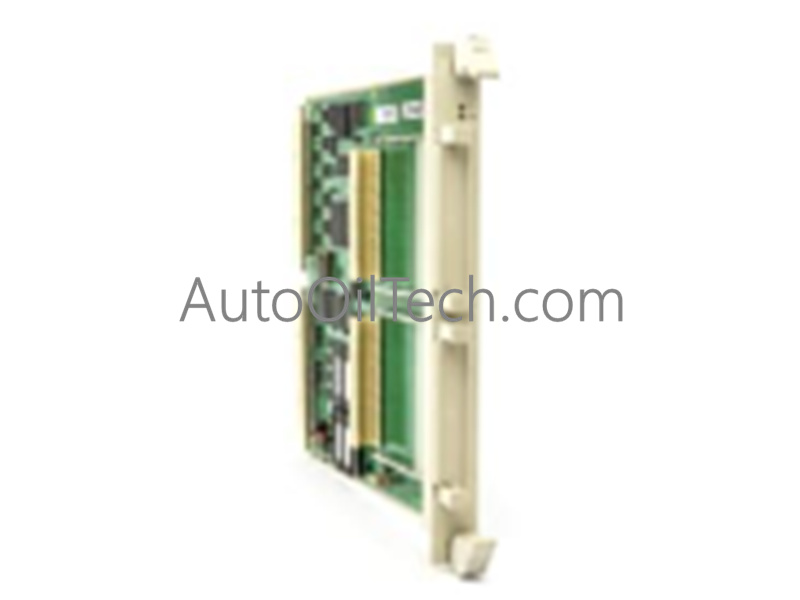

ABB SC510 Submodule Carrier

The ABB SC510, also cataloged as the SC510 Submodule Carrier, operates as a dedicated hardware chassis and physical hosting base for communication sub-modules within Advant OCS and matching distributed automation network platforms. This base plate provides structural card placement without containing an onboard central processing unit.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks and Driver Integration

The SC510 carrier interfaces directly with standard system backplanes, establishing continuous electrical bus tracking and structural card routing paths for plug-in interface sub-modules. It distributes parallel data paths directly to the inserted cards, maintaining backplane bus communication velocity baselines across the local automation rack. When communication sub-modules are seated within the carrier slots, real-time diagnostic packets and fieldbus traffic can be routed outwards over Profinet or EtherNet/IP deterministic networks via the master system controller head. This unpowered, passive backplane structure accommodates high I/O density scaling routines without adding processing latency or propagation delays, allowing stable connection tracking across complex distributed automation nodes.

Frequently Asked Questions

Q: What is the primary engineering function of the SC510 if it does not contain a CPU?

A: The SC510 serves as a mechanical and electrical framework (a submodule carrier). Its sole purpose is to provide the physical slots, backplane trace connections, and power distribution paths necessary to host and power separate, dedicated communication interface sub-modules.

Q: Can interface sub-modules be inserted into the SC510 carrier while the cabinet power is active?

A: No. Hot-swapping sub-modules into the carrier base while the primary backplane power distribution lines are active can cause electrical arc transients across the pin arrays, potentially destroying the delicate logic chips on both the sub-module and the carrier board.
