- ABB SB510 Backup Power Supply Module
Sale
ABB SB510 Backup Power Supply Module
No reviews
In stock!
- Part Number: SB510
- Brand: ABB
- Type: Backup Power Supply Module
- Dimensions: 116x2.5x2cm
- Country of Origin: USA
- Barcode: 8537101190
Share
Additional Specifications
| Color / Pattern |
|
| Power Source |
|
| Communication Protocols |
|
| Controller Design |
|
Product Description

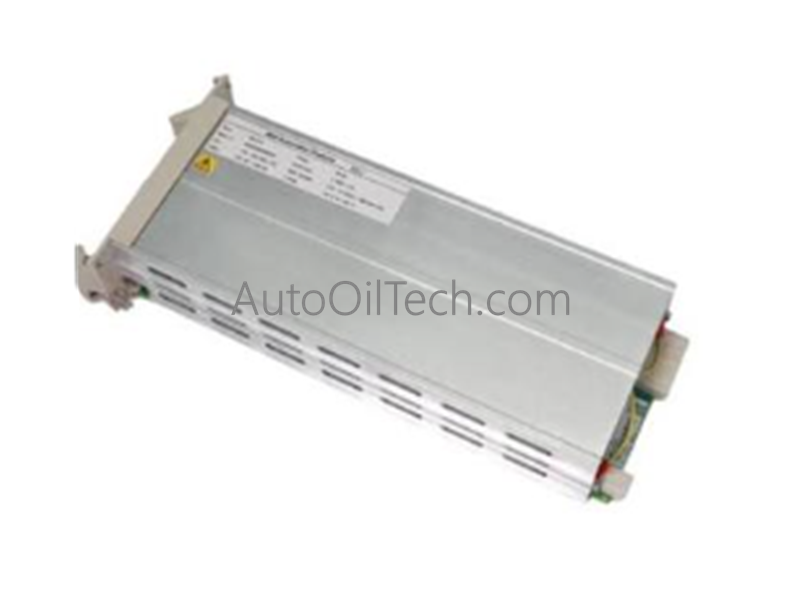

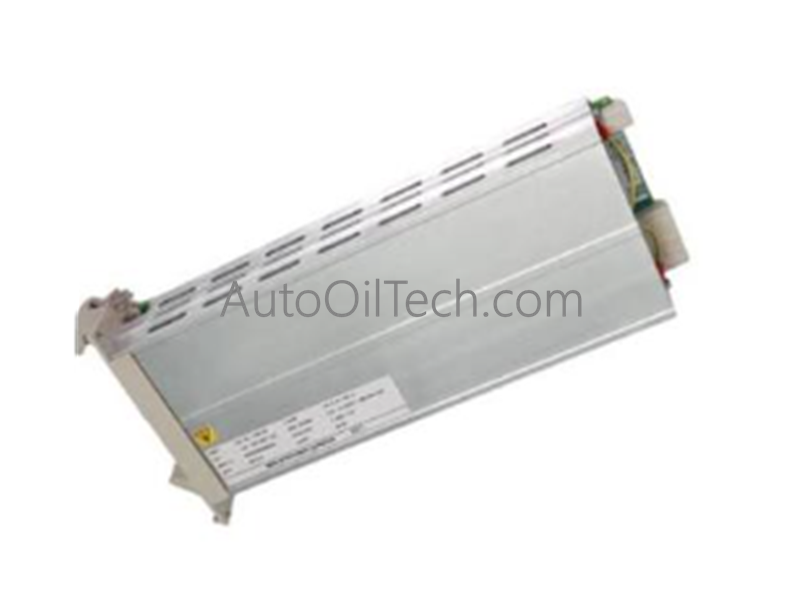

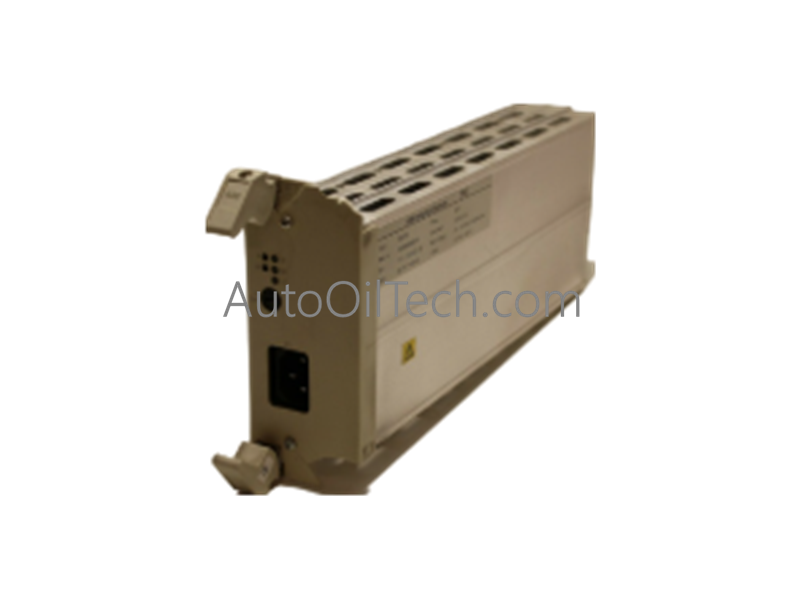

The ABB SB510, also cataloged as the SB510 Backup Power Supply, operates as a dedicated hardware component for localized voltage regulation, standby battery management, and uninterruptible power distribution within Advant OCS and matching industrial automation network platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SB510 |
| Brand | ABB |
| Origin | Sweden |
| Product Type | Power Supply Module |
| Functional Designation | Backup Power Supply / Battery Charger |
| AC Input Voltage Range | 110 to 230 V AC (Absolute frequency baseline: 47 to 60 Hz) |
| DC Input Voltage Range | 110 to 230 V DC |
| Target Battery Chemistry | Nickel-Cadmium (NiCd) |
| Charging Circuit Output Nominal | Designed to charge a 12 V, 4 Ah NiCd battery bank |
| Product Net Width | 60 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 291 mm |
| Product Net Weight | 0.98 kg (2.16 lbs) |
| Active Onboard Battery Cells | 0 (External battery cell connection required) |
| Environmental Compliance | Following EU Directive 2011/65/EU (RoHS Compliant) |
| WEEE Classification | 5. Small Equipment (No external dimension greater than 50 cm) |
| SCIP Identifier Record | 8a71de04-baf4-4395-9f39-8c98dd9bd6c1 |
| Customs Tariff Code (HS Code) | 85044083 (Static Converters) |
| Operating Temperature Range | 0 to 55 deg C standard cabinet ambient thresholds |
Profinet / EtherNet/IP Deterministic Networks and Driver Integration
The backup power supply features wide-range input rectification circuitry that accepts either AC or DC main feeder lines, filtering out raw input transients to maintain clean internal DC rails. It manages an external 12 V NiCd battery cell arrangement, using an optimized float-charging curve that prevents thermal degradation while ensuring immediate backup availability. Internal hardware monitoring registers check supply continuity and battery health flags constantly, passing status metrics to higher-level automation nodes via fieldbus heads connected across Profinet or EtherNet/IP deterministic networks. This architecture isolates the runtime control loops from grid disruptions, optimizing backplane bus communication velocity baselines and ensuring uninterrupted connection tracking during live I/O density scaling routines.
Frequently Asked Questions
Q: Can the SB510 module be used with standard Sealed Lead-Acid (SLA) or Lithium-Ion batteries?
A: No. The internal charging loop and voltage regulation profiles of the SB510 are specifically calibrated for the charge/discharge traits of a 12 V, 4 Ah Nickel-Cadmium (NiCd) battery configuration. Connecting other battery chemistries can lead to improper charging states or hardware damage.
Q: What happens to the automation rack data if the primary 110-230 V AC input source drops out completely?
A: Upon a line voltage drop, the SB510 switches instantly to the connected 12 V NiCd battery loop via internal solid-state diode coupling. This transition occurs without voltage dips or processing latency, maintaining continuous power to the backplane memory and communication chips.
