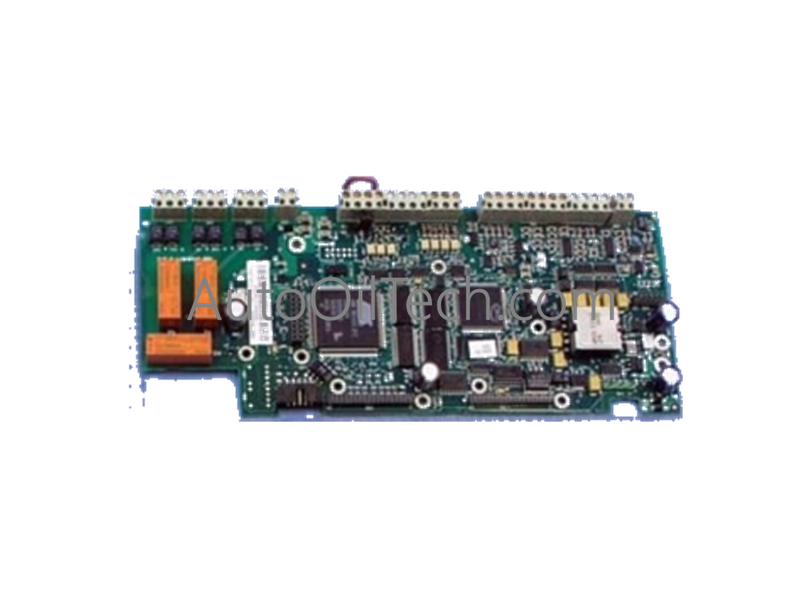

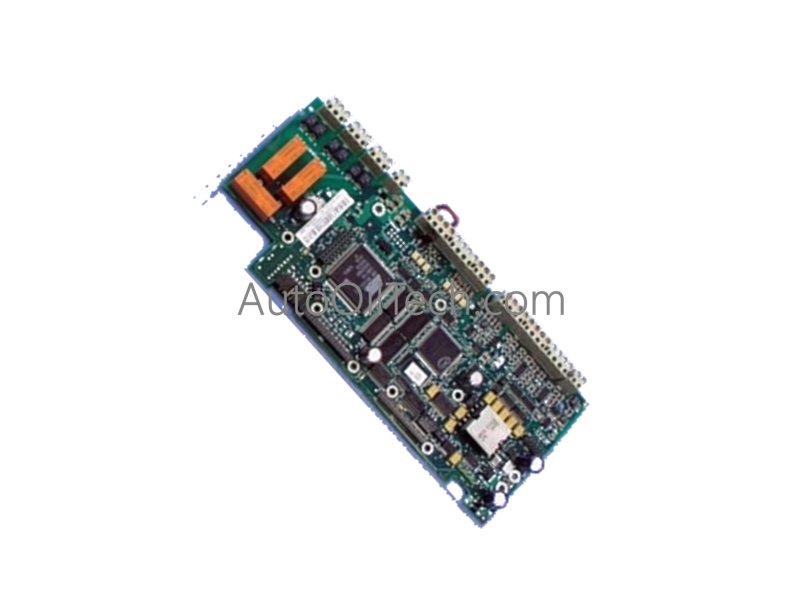

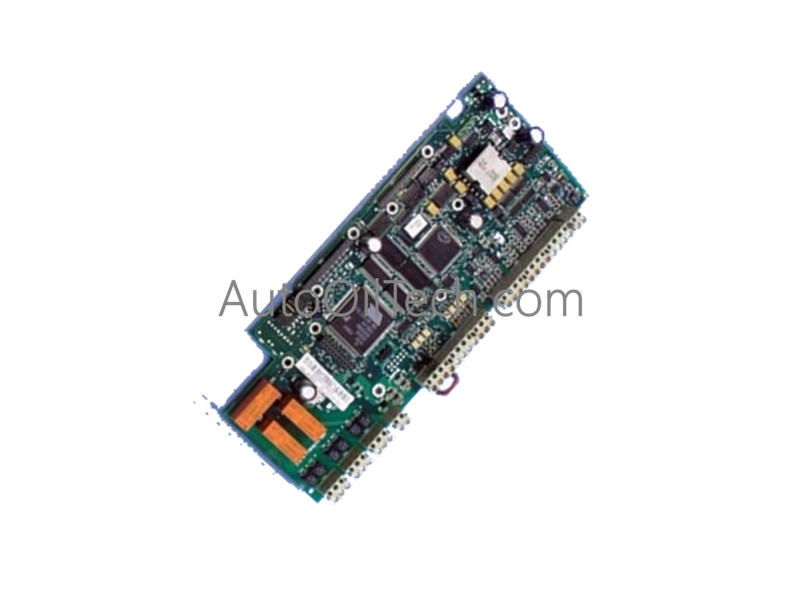

Configured for motor control and I/O management in ABB drive systems, the ABB RMIO-01C (RMIO-01C Control Board) provides direct physical/electrical execution.
Hardware Specifications
Parameter
Specification
Model
RMIO-01C
Brand
ABB
Product ID
64538012
Origin
Finland / Saudi Arabia
Product Type
Drive Control Board
Frame Size
Spare_Parts
Relay Outputs
Maximum 2 A rms continuous current
Power Output (X23)
24 VDC +/-10% (Short-circuit proof)
Product Net Width
240 mm
Product Net Height
100 mm
Product Net Depth / Length
10 mm
Product Net Weight
0.18 kg
Power Consumption
Derived from drive main power supply unit
Operating Temp
0 to 50 deg C standard internal drive ambient limits
UNSPSC Code
39122004
Customs Tariff Number
85049090
WEEE Category
Not in WEEE Scope
Profinet / EtherNet/IP Deterministic Networks and Driver Integration
The control board coordinates real-time speed and torque algorithms by interfacing directly with the drive power stage components. It processes local encoder feedback, analog references, and digital pulse patterns to update internal gate driver states, maintaining nominal backplane bus communication velocity baselines without operational jitter. External automation tracking loops communicate with the board through optional fieldbus adapters running over Profinet or EtherNet/IP deterministic networks. This architecture supports rapid multi-node I/O density scaling routines across complex plant layouts. Because the hardware ships as generic spare parts, application software must be loaded separately to establish full firmware flash compatibility and enable specific system configurations.
Frequently Asked Questions
Q: What operational status will the drive report if the RMIO-01C board is installed without loading the software?
A: The drive will remain in a boot-load or initialization fault state, as the board does not contain pre-flashed factory application software to execute motor control parameters or handle I/O channel allocation.
Q: Is the 24 VDC power output at terminal X23 protected against field wiring errors?
A: Yes. Terminal X23 features an integrated short-circuit proof design that isolates internal logic rails from ground faults or overcurrent events occurring on external sensor loops.
