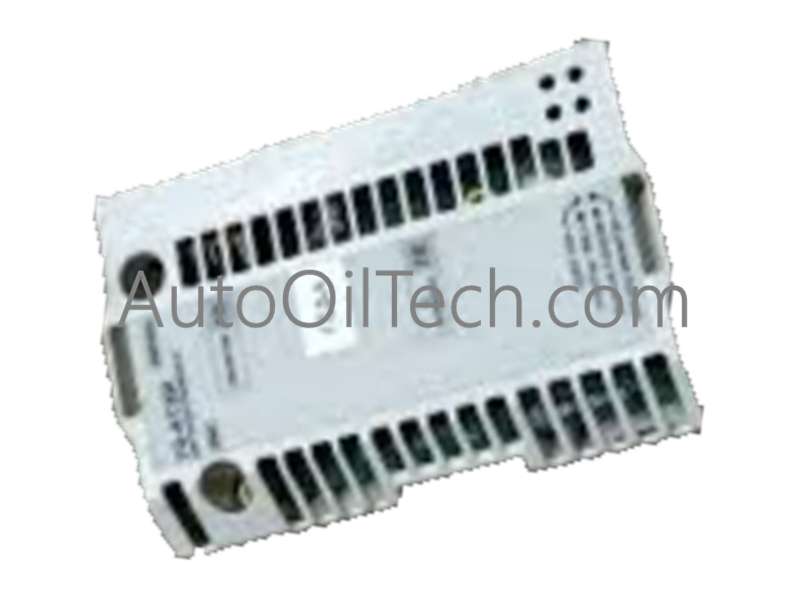

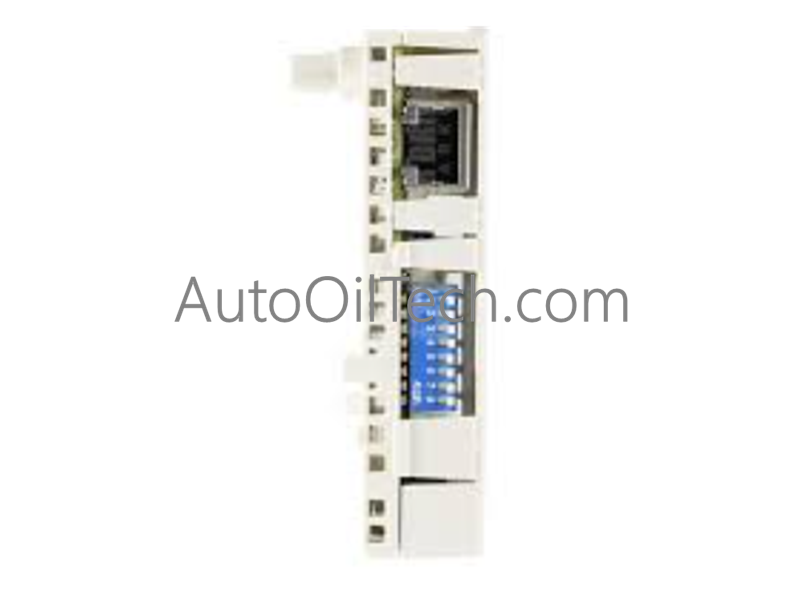

ABB RETA-01-KIT Communication Adapter

Product Overview

The ABB RETA-01-KIT is a specialized communication adapter designed for seamless Ethernet integration of ABB variable frequency drives. It allows a drive to be controlled and monitored via high-speed industrial networks. The module supports widely used protocols such as Modbus/TCP and EtherNet/IP.

Technical Specifications

• Part Number: RETA-01-KIT.

• Manufacturer: ABB.

• Function: Ethernet Communication Adapter.

• Compatibility: ACS550, ACS800, DCS800, and other ABB industrial drives.

• Network Interface: Single RJ45 Ethernet port.

• Protocols Supported: Modbus/TCP, EtherNet/IP.

• Transmission Speed: 10/100 Mbps (Full or Half Duplex).

• Mounting: Internal plug-in module (Slot 1 or 2 depending on drive).

• Power Supply: Supplied through the drive's internal bus.

Key Features and Engineering Advantages

• Dual Protocol Support: The module is versatile, supporting both Modbus/TCP and EtherNet/IP, allowing it to work with various PLCs like Allen-Bradley or Schneider Electric.

• Integrated Web Server: Features a built-in web server for basic drive monitoring and configuration through a standard web browser.

• High-Speed Data Exchange: Provides real-time control of motor speed, torque, and direction, alongside high-speed feedback of drive parameters.

• Remote Maintenance: Enables technicians to troubleshoot and tune drive parameters from a central control room, reducing the need for on-site visits.

• Simplified Installation: The plug-in design ensures electrical connection is made automatically via the drive's option slot connector.
