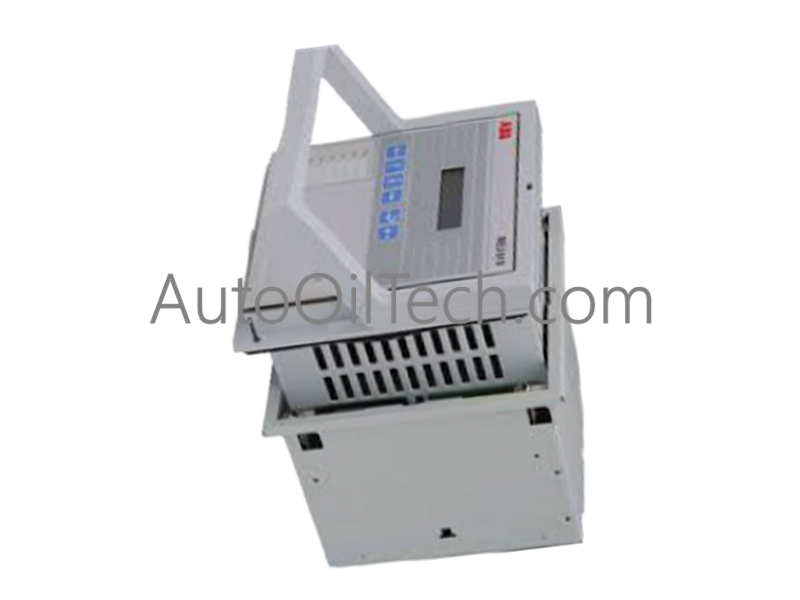

TheABB REF615C_C(Model:HCFFAEAGANB2BAN1XC) is a high-performance digital protection and control relay specifically engineered for medium-voltage power grids. As part of the globally recognized Relion® 615 series, it integrates comprehensive protection, control, measurement, and monitoring functions into a single intelligent platform.
Product Parameters
Rated Voltage:100-400 VAC (Supports multiple voltage ranges)
Rated Current:Configurable support from 5A up to 63A (model dependent)
System Frequency:50/60 Hz
Operating Temperature:-40°C to +70°C (Extremely rugged range)
Protection Rating:IP65 (Front panel), suitable for harsh industrial environments
Communication:Native support for IEC 61850, Modbus, and DNP3
Weight:Approx. 0.5kg to 5kg (Depending on specific hardware configuration)
Enclosure:Durable aluminum or high-grade flame-retardant plastic
Technical Specifications & Interfaces
Flexible I/O:Equipped with multiple digital and analog input/output interfaces for seamless connection to sensors, actuators, and primary switchgear components.

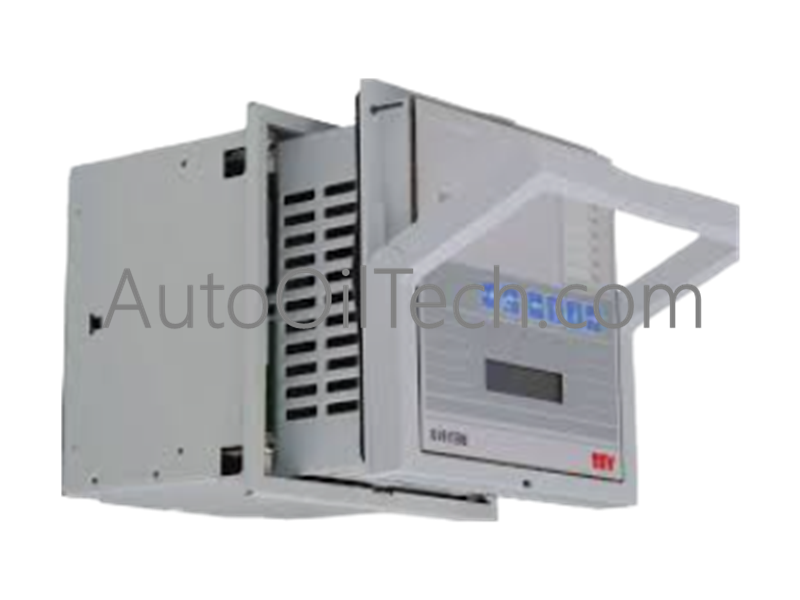

Hardware Architecture:Modular design featuring a withdrawable plug-in unit for rapid installation and testing without disturbing the fixed wiring.
Protection Suite:Includes overcurrent, earth fault, voltage, and frequency protection, along with advanced control logic for circuit breaker management.
