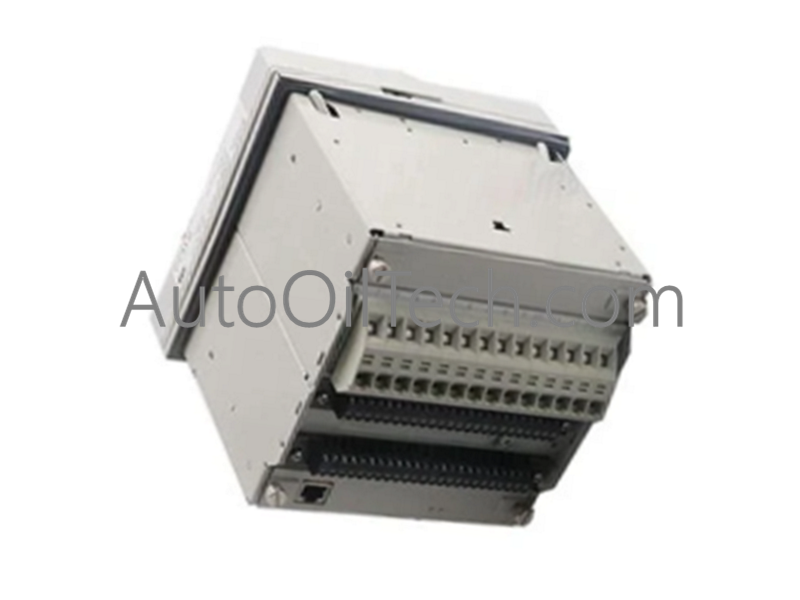

TheREF541is a high-performance feeder terminal designed for the protection, control, measurement, and supervision of medium-voltage networks. As a mechanical necessity for versatile power distribution, it is compatible with various switchgear configurations, including single busbar, double busbar, and duplex systems.
Technical Specifications
Manufacturer: ABB
Model Designation:REF541
Application Scope: Feeder, Motor, and Capacitor Bank Protection
Network Support: Isolated, Resonant-earthed, and Partially earthed
I/O Capacity: 15 Binary Inputs and 12 Output Relays
Measuring Interface: Conventional transformers or current sensors/voltage dividers
Communication Standards: SPA, LON, IEC 60870-5-103, DNP 3.0, and Modbus
Fault Diagnostics: Integrated fault locator for short circuits
Optical Link: Support for disturbance-free fiber optic communication
Key Functional Characteristics
Integrated PLC and Automation Logic
TheREF541stands out by integrating extensive PLC functions directly into the protection unit. This allows engineers to design complex automation sequences and interlocking logic without the need for external controllers. By handling these functions internally, the terminal streamlines substation automation and reduces the overall hardware footprint in the control cabinet.
Advanced Communication Ecosystem
The terminal provides one of the most comprehensive communication suites in the Relion family. Through optional adapters, it supports the IEC 61850 standard, allowing it to function within modern digital substations. The use of LON bus communication combined with internal PLC logic significantly reduces the requirement for physical hardwiring between different feeder terminals, simplifying the installation and increasing system flexibility.
Multipurpose Asset Protection
TheREF541is not limited to simple feeder monitoring. It includes specialized algorithms for three-phase asynchronous motor protection and the control of shunt capacitor banks. It also features an advanced fault locator that accurately identifies the position of short circuits across all supported network types, enabling maintenance crews to respond faster to outages.
