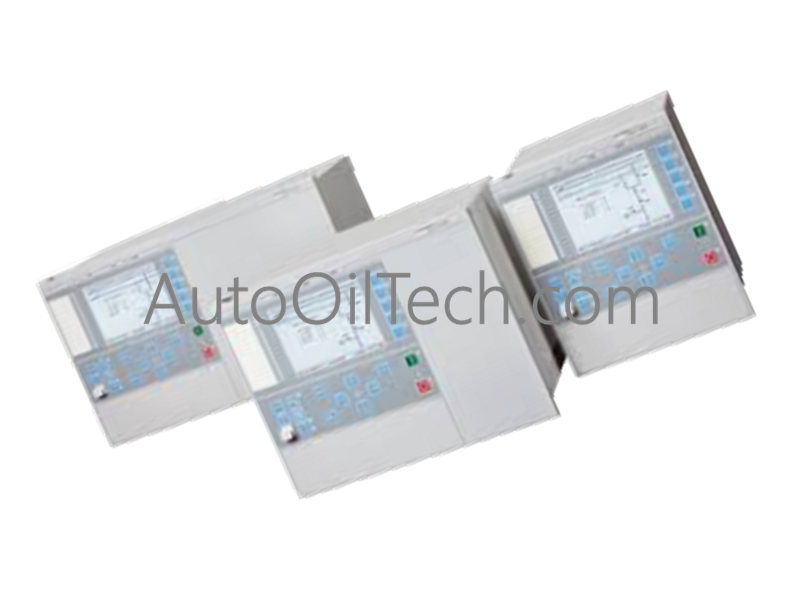

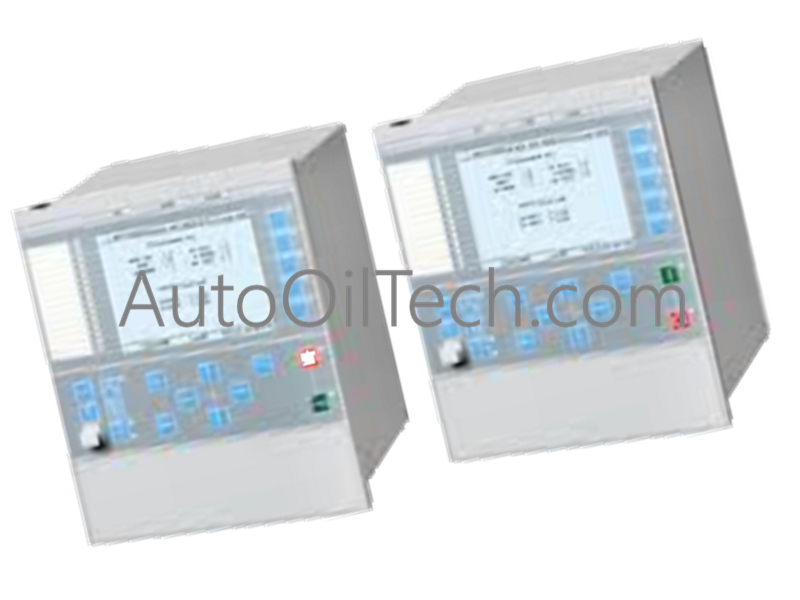

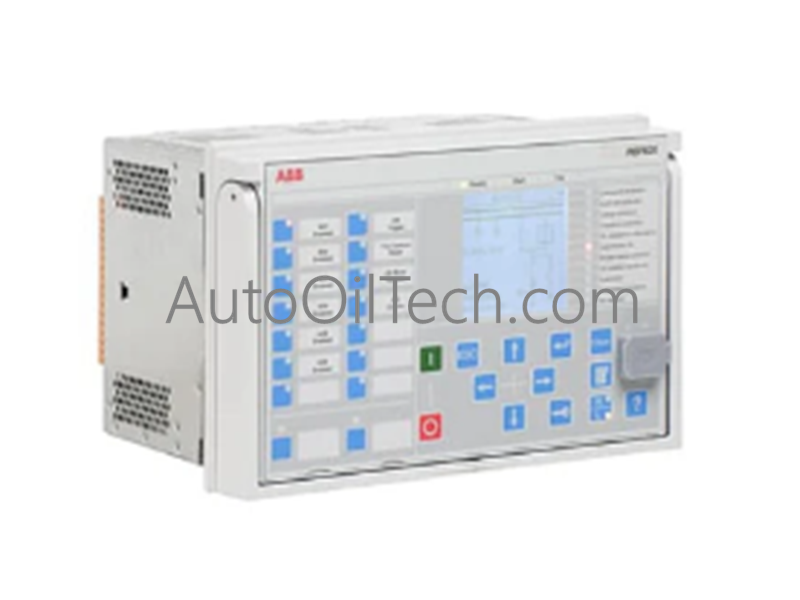

ABB RED670 1MRK000008-PB Line Differential Module

Product Description

The RED670 (1MRK000008-PB) is a premium, high-tier Protection, Control, and Monitoring Intelligent Electronic Device (IED) engineered by ABB as part of the industry-proven Relion 670 series.

Technical Specifications

• Manufacturer: ABB

• Product Series Family: Relion 670 Series Architecture

• Model Designation: RED670

• Global Ordering Code: 1MRK000008-PB

• Device Classification: High-Voltage Line Differential Protection & Bay Control IED

• Maximum Grid Voltage Rating: Up to 765 kV transmission networks

• Maximum Main Current Rating: Up to 5,000 A continuous feed

• Measurement & Protection Accuracy: Ultra-precise 0.2% variance profile

• Substation Automation Protocol Compatibility: IEC 61850-8-1 Compliant (Native GOOSE messaging & Client-Server MMS)

• Fault Detection Speed: High-speed deterministic tripping matrix

• Ambient Operating Temperature Envelope: -40°C to +70°C

• Relative Humidity Tolerance: 5% to 95% RH (Non-condensing)

• Product Net Weight: 3.5 kg (Approx. 7.71 lbs)

• Physical Enclosure Dimensions (W x H x D): 160 mm x 230 mm x 100 mm (6.3 in x 9.1 in x 3.9 in)

Industrial Application Scenarios

The RED670 1MRK000008-PB is installed within the control panels of extra-high-voltage (EHV) substations, cross-country transmission lines, major generation step-up plants, and critical utility interconnects. In these large power systems, long transmission lines are vulnerable to lightning strikes, tree encroachment, or physical cable faults. The RED670 acts as an advanced sentinel. It measures the vector current entering one end of a transmission line and utilizes high-speed communications to compare it with the current leaving the opposite end. If a mismatch is detected, indicating an active line leak or fault, the device immediately initiates high-speed breaker tripping commands to protect millions of dollars in grid assets from thermal destruction.
