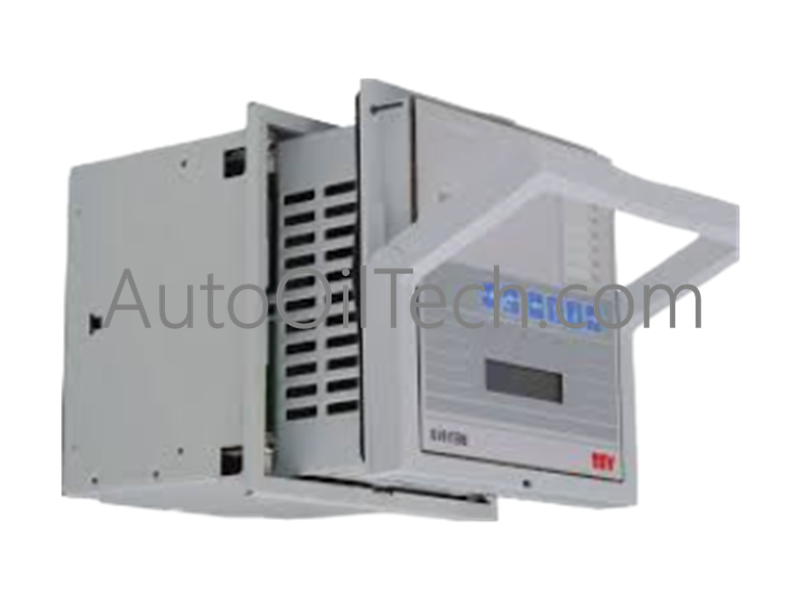

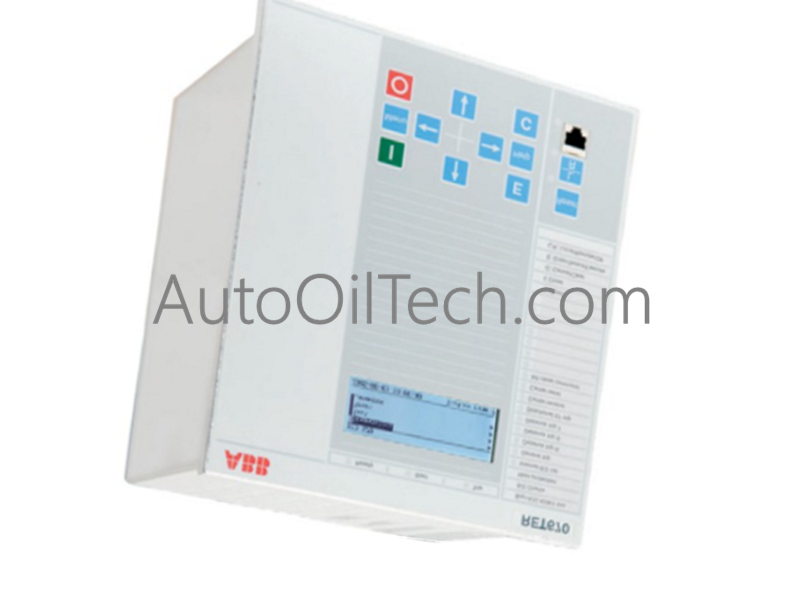

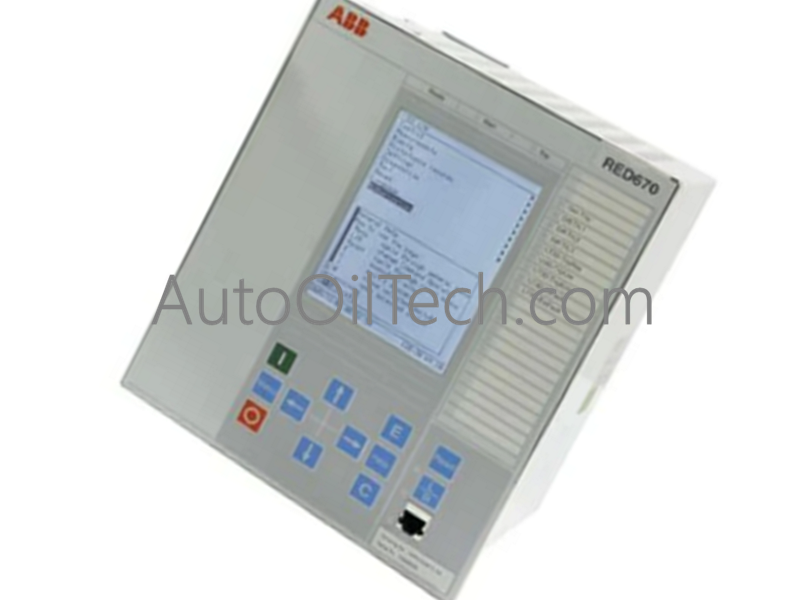

The ABB RED670 1MRK000008-MB, also cataloged as the RED670 Display Panel Module, serves as the primary RED670 Human-Machine Interface (HMI) utilized to execute local control and monitoring tasks across RED670 line differential protection relays platforms. The front-mounted hardware unit decodes internal relay registers to provide real-time graphical LCD visualization with ANSI symbols directly at the transmission line protection panel interface. It allows site operators to verify trip signals, extract fault records, and reset interlocking protection functions without external computing equipment.
Hardware Specifications
Parameter
Specification
Model
RED670 Display Panel Module
Brand
ABB
Origin
Sweden
Weight
3.5 kg
Dimensions
160 mm x 280 mm x 220 mm (W x H x D)
Operating Temp
-25 deg C to +55 deg C
Power Consumption
Energized via host IED internal power link
Part Number
1MRK000008-MB
Interface Target
Relion 670 series line differential relays
UI Elements
Graphical LCD and tactile push-buttons
Application Profile
Transmission line protection panel integration
Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling
The 1MRK000008-MB panel interfaces with the relay's processing core using synchronous internal architectures designed to operate within high-speed backplane bus communication velocity baselines. This localized communication boundary isolates operator display traffic from the substation's primary Profinet or EtherNet/IP deterministic networks, ensuring that continuous page rendering cycles do not introduce jitter into time-critical line differential calculations. The internal configuration engine supports secure firmware flash compatibility to match host protection upgrades, preserving overall terminal throughput during localized binary I/O density scaling procedures.
