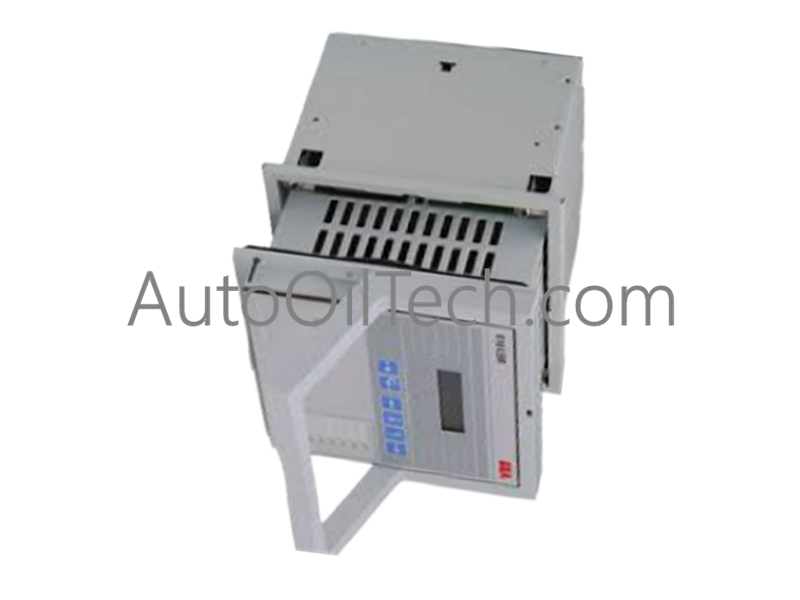

TheABB REC670 (1MRK002814-AB)is a state-of-the-art Bay Control Intelligent Electronic Device (IED) engineered for the sophisticated control, protection, and monitoring of primary equipment in power transmission and distribution systems.
Technical Specifications
Manufacturer:ABB
Model Number:REC670 (Part: 1MRK002814-AB)
Protection Functions:Integrated Overcurrent, Earth Fault, and Circuit Breaker Failure protection.
Control Capabilities:Full management of Circuit Breakers, Disconnectors, and Motorized Earthing Switches.
Communication Protocols:Native support for IEC 61850 (Edition 1 & 2), Modbus, and legacy protocols.
Auxiliary Voltage:Universal operating range of 24–250 V DC.
Environmental:Designed for extreme conditions from -40°C up to +70°C.

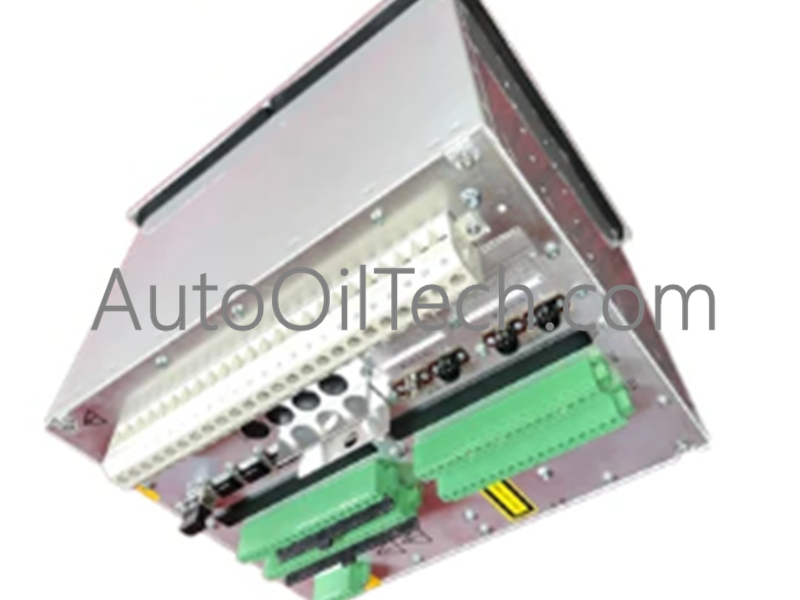

I/O Hardware:Highly configurable digital inputs and outputs to match specific site requirements.

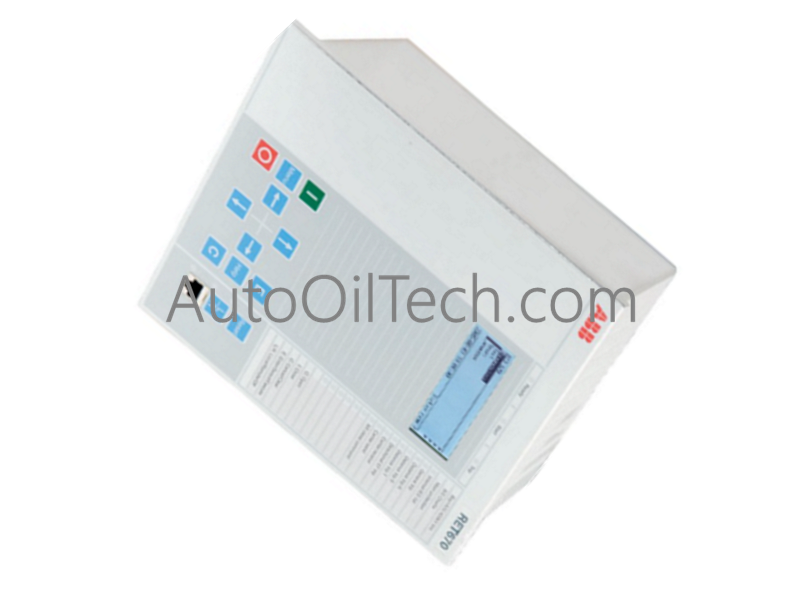

User Interface:Advanced graphical HMI for local monitoring and logic configuration.
Key Features & Engineering Advantages
Advanced Bay Interlocking:The REC670 provides software-based interlocking that prevents dangerous switching operations, such as opening a disconnector under load, by verifying the status of all relevant equipment in real-time.
High Availability Communication:By supportingIEC 61850, the unit enables high-speed horizontal communication (GOOSE) for station-wide interlocking and vertical communication to SCADA systems for remote operation.
Modular Hardware Design:The "670 platform" allows for the addition or replacement of I/O modules, making the REC670 adaptable for future expansions or changes in substation layout.
Integrated Monitoring:It goes beyond simple control by acting as a high-precision monitoring tool, tracking breaker wear, gas pressure (via digital inputs), and electrical parameters to assist in predictive maintenance.
Cyber Security:Includes robust security features such as role-based access control and encrypted communication to safeguard critical grid infrastructure against unauthorized access.
