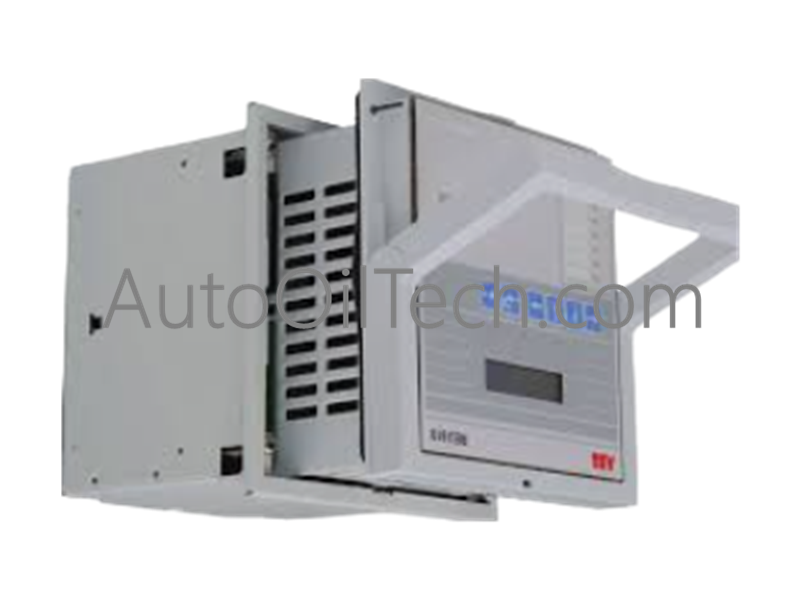

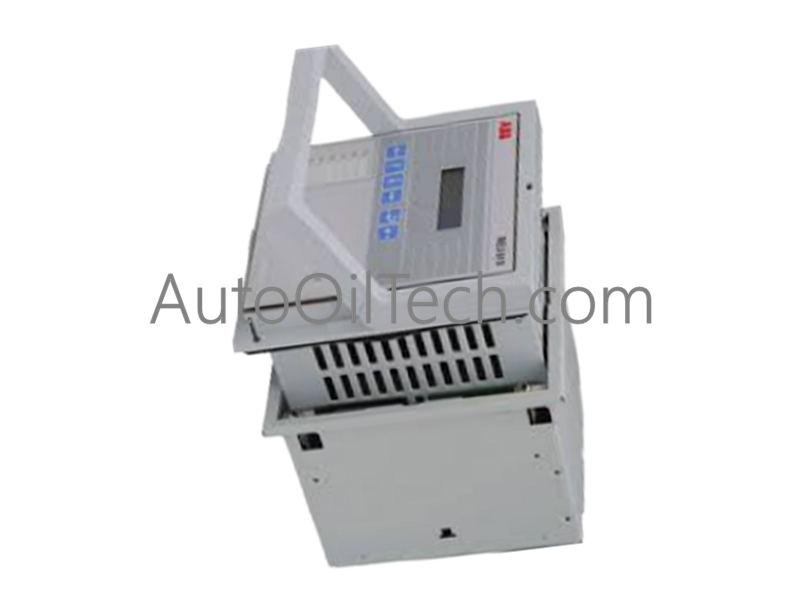

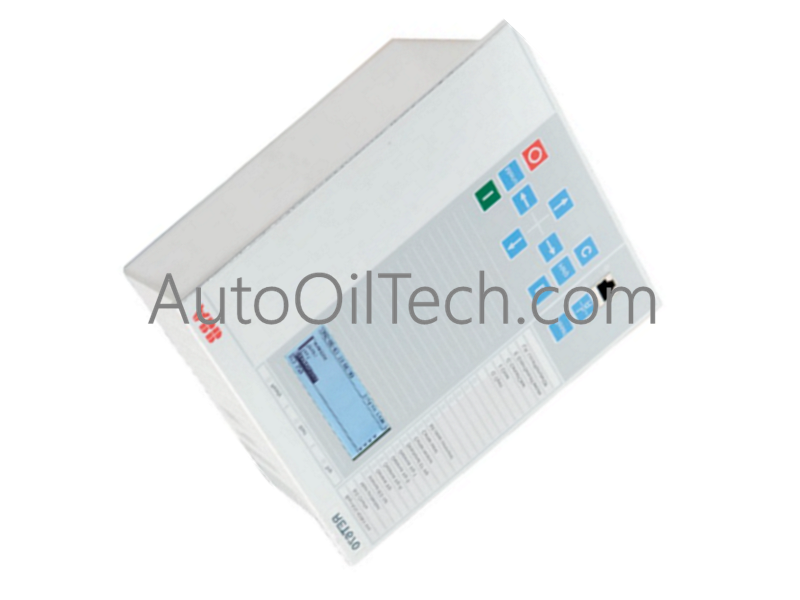

ABB REC650 1KHL400169R000 Bay Control Unit

Product Overview

The ABB REC650 (1KHL400169R0001) is a compact and high-performance Bay Control Unit (BCU) belonging to the Relion® 650 family. Designed specifically for advanced substation automation and reliable power distribution, it consolidates control, protection, and monitoring functions into a single intelligent electronic device (IED).

Technical Specifications

• Manufacturer: ABB

• Model Number: REC650 1KHL400169R0001

• Product Type: Bay Control Unit (BCU)

• Communication Protocols: Native support for IEC 61850, DNP3, and Modbus

• Protection Suite:

• Overcurrent Protection

• Voltage and Frequency Monitoring

• Breaker Failure Protection

• User Interface: Graphical LCD display for real-time visualization and local control

• Self-Supervision: Continuous internal hardware and software diagnostic routines

• Power Supply: 24V DC

• Operating Temperature: -25°C to +60°C

• Humidity Range: 5% to 95%, non-condensing

Key Features & Engineering Benefits

• Integrated Bay Logic: The REC650 acts as the central brain of a switchgear bay, managing interlocking, circuit breaker control, and position monitoring in a unified platform.

• Advanced Connectivity: By supporting IEC 61850, the unit enables high-speed horizontal communication (GOOSE) for interlocking and vertical communication to the SCADA system for remote monitoring.

• Compact Footprint: Unlike larger 670 series units, the 650 series offers a more compact design, making it ideal for space-constrained panels while retaining flagship-level reliability.

• Enhanced Reliability: Continuous self-supervision ensures that any internal fault in the unit is detected and alarmed immediately, preventing "silent failures" during critical grid events.

• Real-Time Monitoring: The graphical HMI allows local technicians to perform switching operations and view measurement data without the need for an external computer.
