- ABB REB611 Relion Busbar Protection Relay
Sale

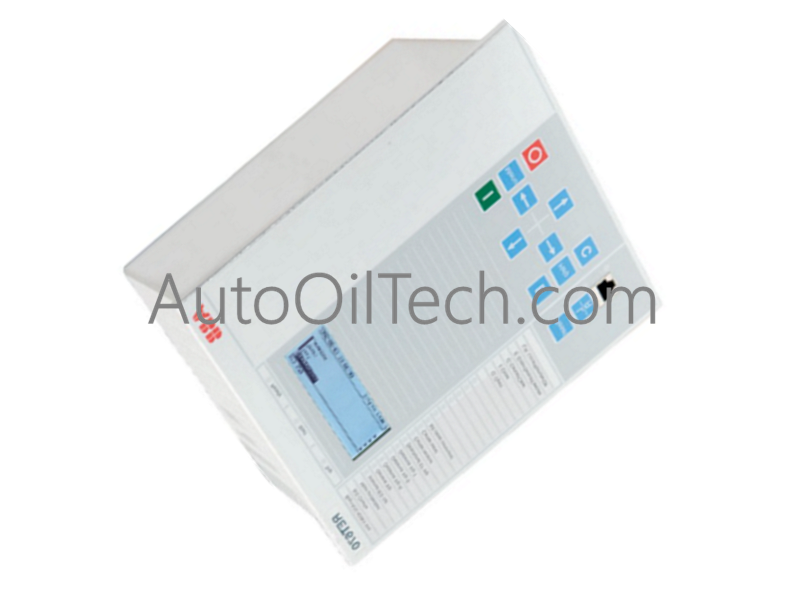

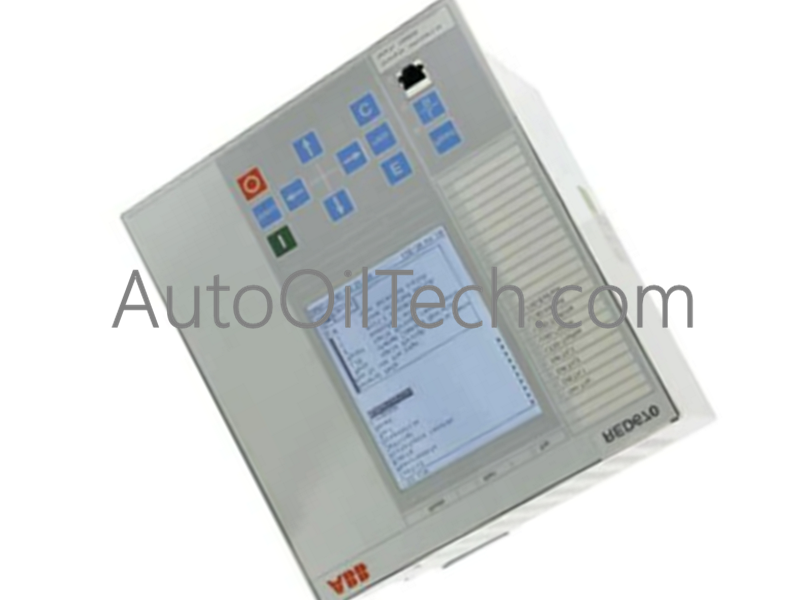

ABB REB611 Relion Busbar Protection Relay
No reviews
In stock!
- Part Number: REB611
- Brand: ABB
- Dimensions: 116x2.5x2cm
- Country of Origin: USA
- Barcode: 8537101190
Share
Additional Specifications
| Color / Pattern |
|
| Power Source |
|
| Communication Protocols |
|
| Controller Design |
|
Product Description
Configured for high-impedance-based protection applications within utility substations and industrial power systems, the ABB REB611 (REB611 Busbar Protection Relay) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | REB611 |
| Brand | ABB |
| Origin | Finland |
| Weight | 2.10 kg nominal reference mass |
| Dimensions | Compact 611 series flush-mount panel chassis layout |
| Operating Temp | Standard substation environment thermal boundaries |
| Power Consumption | Handled via dedicated auxiliary AC/DC substation power lines |
| Core Application | High-impedance busbar, restricted earth-fault, and residual earth-fault loops |
| Protected Elements | Generators, motors, transformers, and reactors |
| Mechanical Format | Withdrawable plug-in unit design for swift installation and testing |
| Local Interface | Web-browser-based HMI including an I/O matrix with visual selections |
| Redundancy Options | Self-healing communication via optional second Ethernet port (HSR/PRP) |
| Communication Protocols | IEC 61850 Editions 1 and 2, including binary GOOSE messaging |
Industrial Control and Drives Characteristics
The REB611 architecture processes high-speed analog current waveforms designed to track system variables across backplane bus communication velocity Licences. By executing low-latency numerical current summation algorithms, the relay performs high-impedance zone calculations to detect phase and earth faults across busbars, generators, and transformers without introducing data conversion loop lag.
The internal communication layers manage data packets over Profinet / EtherNet/IP deterministic networks, horizontal GOOSE messaging setups, and redundant dual-port links to maintain continuous connection tracking across the local station bus. The compact physical frame accommodates independent I/O density scaling routines via preconfigured binary mapping paths accessible through the visual web-HMI matrix. This specialized execution baseline optimizes fault isolation speeds during zone discrimination events while maintaining complete software configuration firmware flash compatibility across the ABB Relion 611 series platform deployment tools.
Frequently Asked Questions
Q: How does the high-impedance protection principle affect current transformer (CT) requirements on the REB611?
A: High-impedance busbar protection requires all connected current transformers to have identical transformation ratios and matching magnetizing characteristics. To prevent false trips during external through-faults that saturate a CT, an external stabilizing resistor and varistor must be wired in series with the REB611 analog input channel.
Q: What technical benefits does the withdrawable plug-in unit format provide during routine testing?
A: The withdrawable design allows the active relay chassis to be completely removed from the flush-mount housing without disconnecting the field wiring. Built-in automatic shorting mechanisms engage across all active CT secondary lines upon extraction, preventing high-voltage open-circuit states on live current loops.
