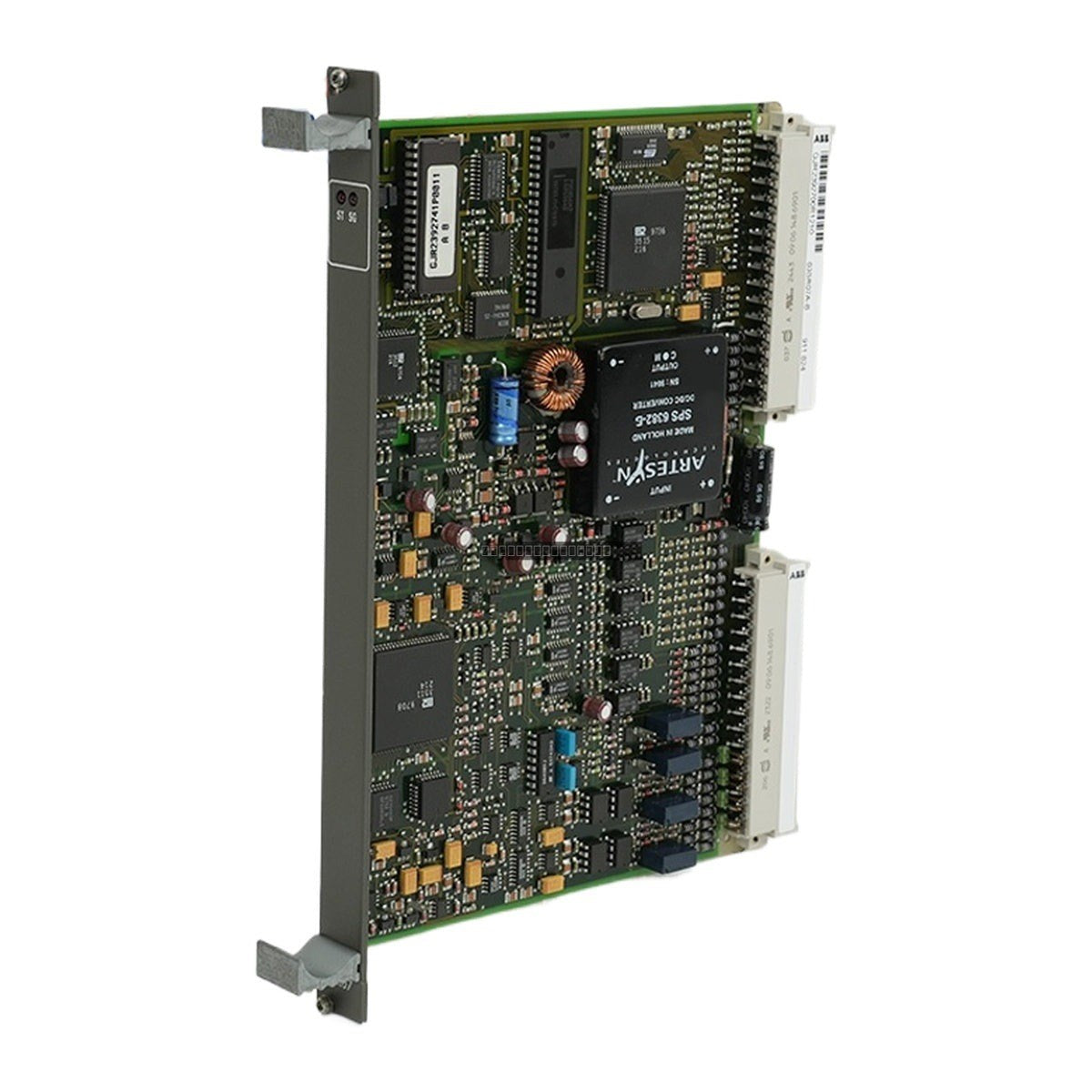

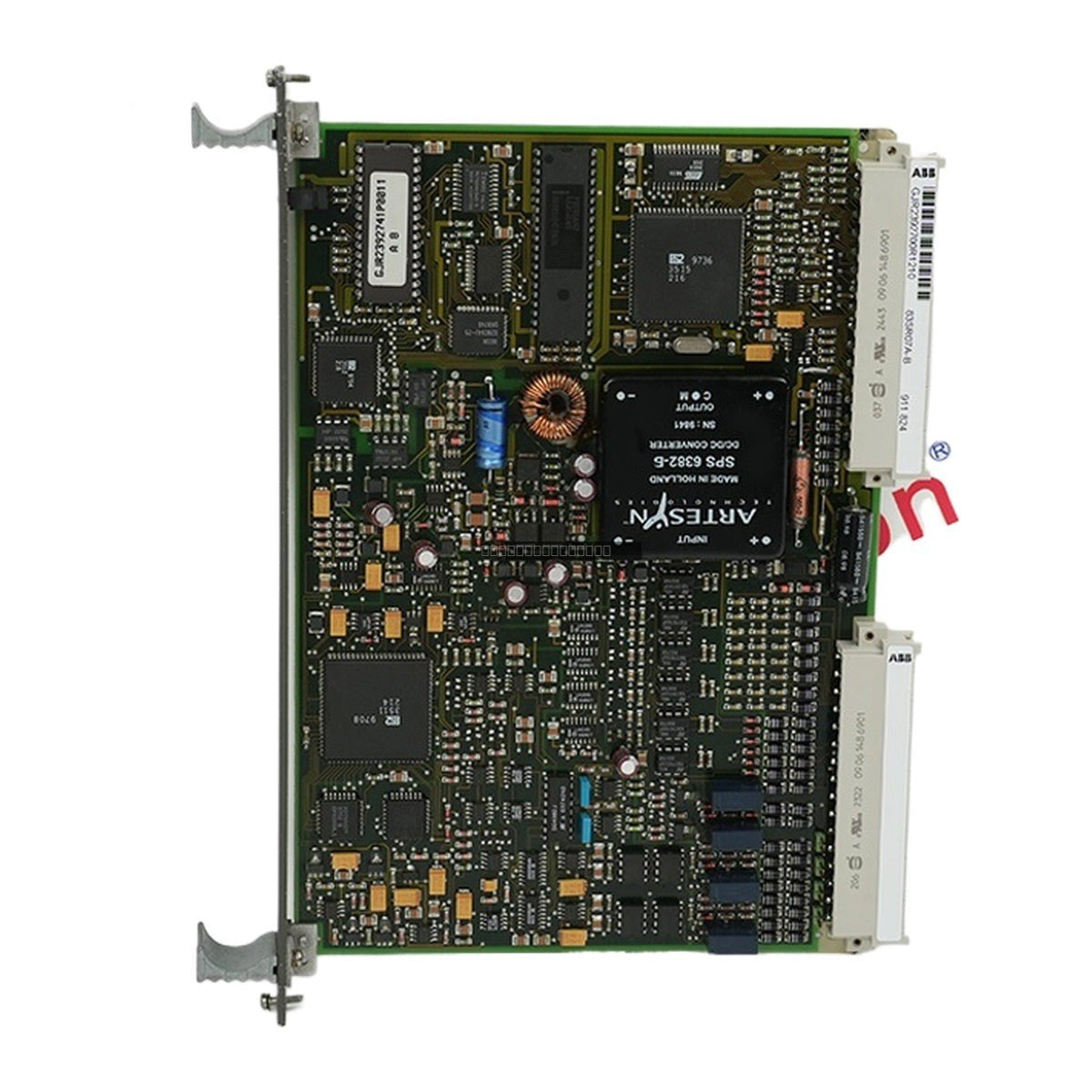

The ABB GJR2392700R1210 (83SR07A-B) is an analog control module designed for the Procontrol P14 system. This module provides continuous control functionality, featuring dual analog outputs and integrated signal conditioning capabilities for industrial automation environments.
Features
Designed for Procontrol P14 system integration.
Features 2 x 0/4-20 mA analog outputs.
Automatic module addressing upon insertion into the PROCONTROL station.
Signal exchange via shared memory for efficient communication between the module and the bus system.
Supports 1-fold and 2-fold analog control functions.
Applications
Power Generation: Monitoring and control within Distributed Control Systems (DCS) for power plants.
Oil and Gas: Automation for refineries, pipelines, and liquefaction facilities.
Heavy Industry: Control equipment for steel mills, mining operations, and large-scale manufacturing.
Infrastructure: Synchronous control for papermaking machinery and urban water treatment facilities.
Technical Specifications
Model
GJR2392700R1210 (83SR07A-B)
Manufacturer
ABB
System
Procontrol P14
Power Supply
24 V DC
Current Consumption
145 mA
Analog Outputs
2 x 0/4-20 mA
Accuracy
+/- 0.1% of span @ 25 degC
Isolation
500 V DC (Process-to-Bus)
Operating Temperature
-25 to +70 degC
Humidity
5 to 95% RH (non-condensing)
Installation Guidelines
Ensure the system power is disconnected before inserting or removing the module from the rack.
The module address is configured automatically when seated in the PROCONTROL station; verify proper seating to ensure bus contact.
Maintain proper ventilation within the cabinet to stay within the specified operating temperature range (-25 to +70 degC).
Use shielded cabling for analog signals to minimize electromagnetic interference (EMI) in industrial environments.
Handle with standard ESD precautions to prevent damage to internal sensitive components.
FAQ
What is the primary function of the 83SR07A-B module?
This module serves as an analog control unit for the Procontrol P14 system, primarily used for implementing continuous single-variable control loops and signal conditioning.
How is the module addressed?
The module address is assigned automatically by the PROCONTROL station hardware upon insertion, eliminating the need for manual DIP switch configuration.
What is the output range of this module?
The module provides two analog outputs, each configurable for 0/4-20 mA signals.
