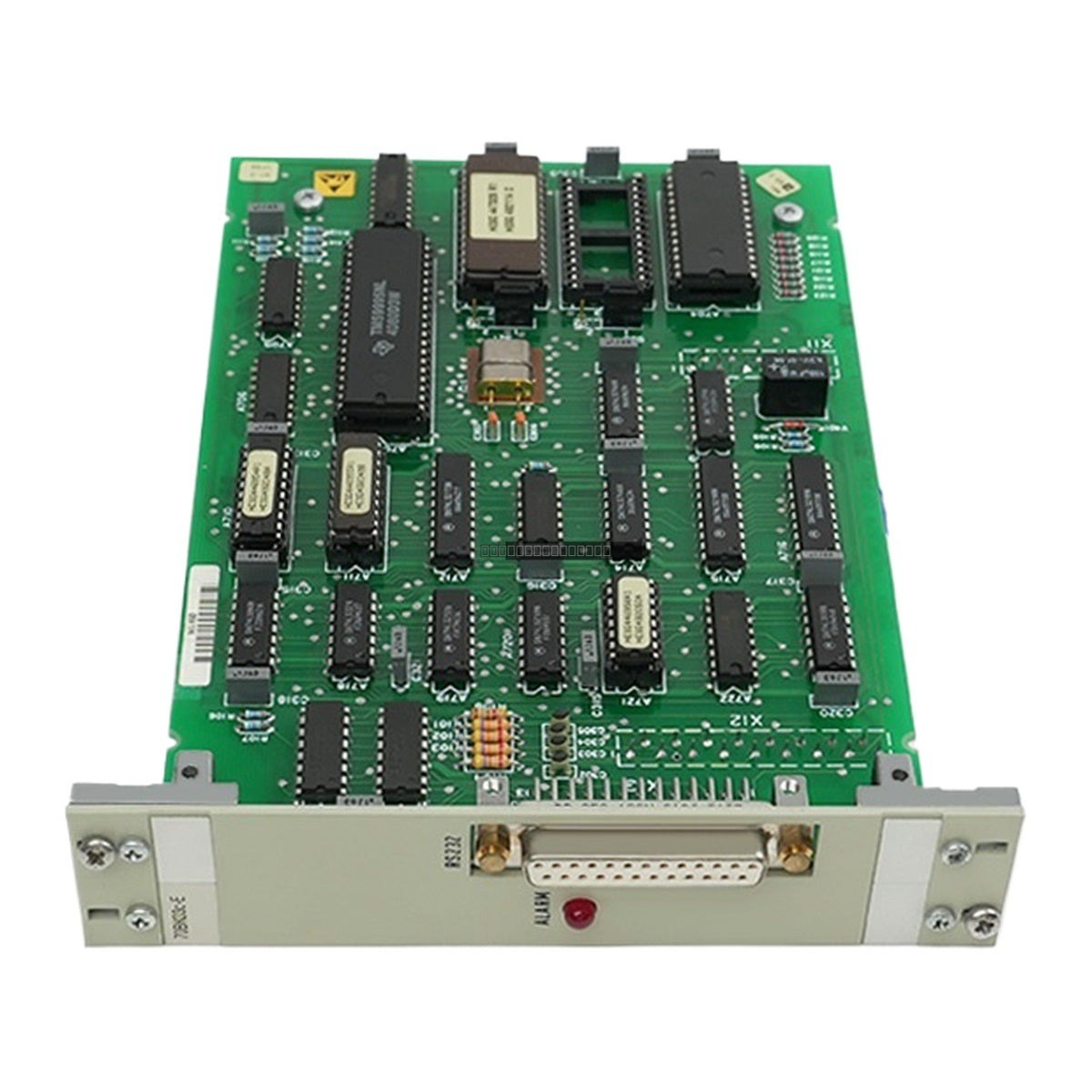

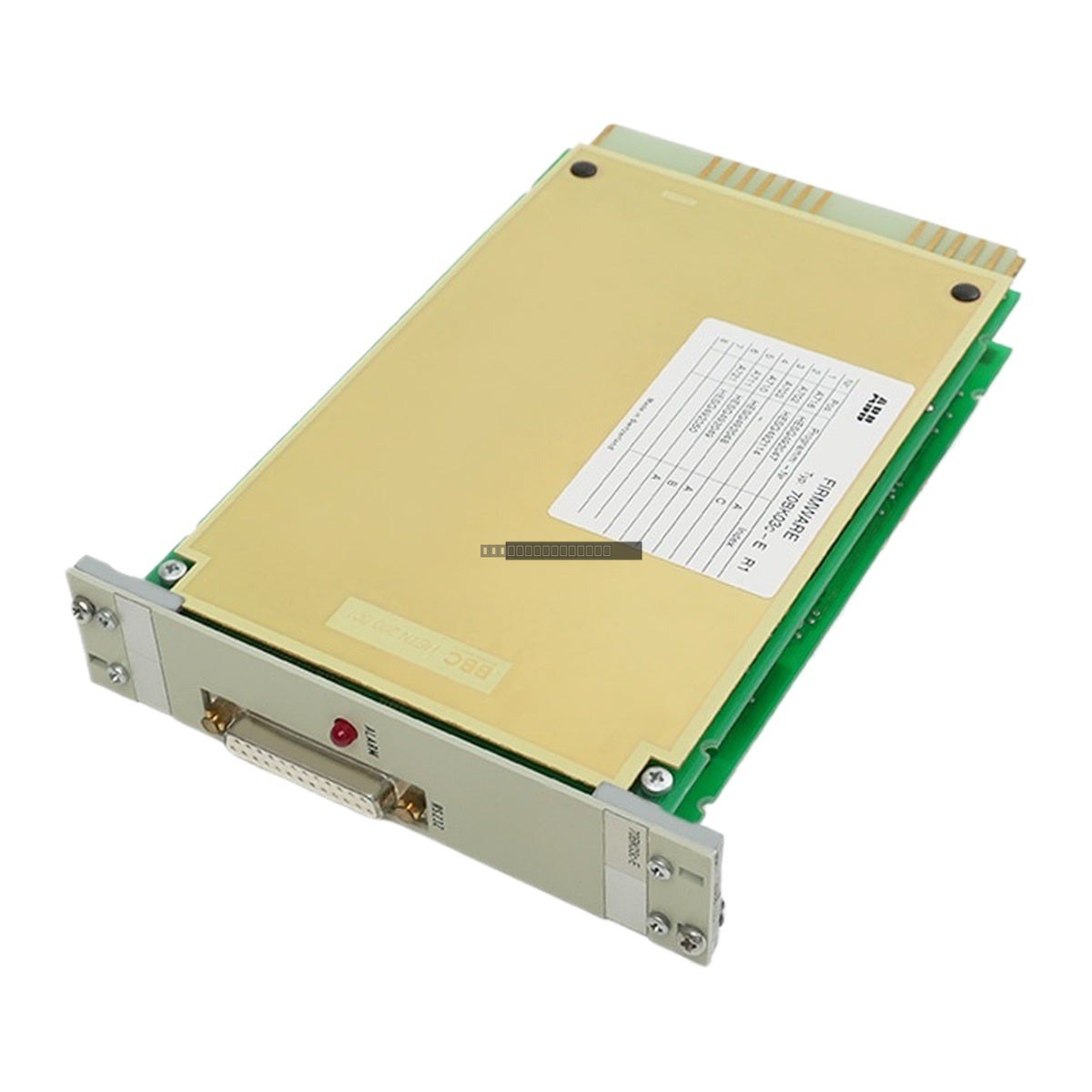

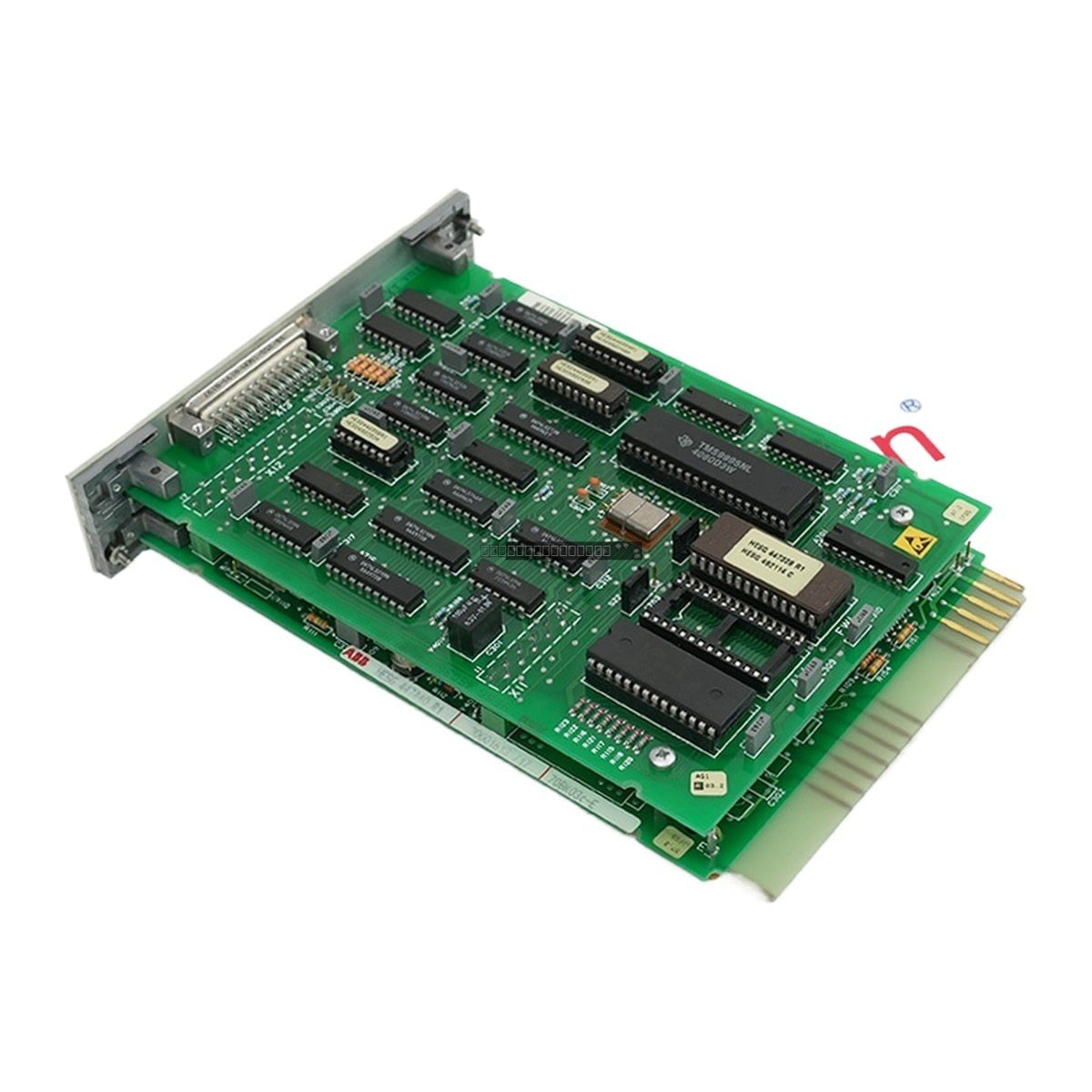

ABB HESG447440R1 70BK03C-E Procontrol P13 Bus Coupling Module

The ABB HESG447440R1 (70BK03C-E) is a specialized bus coupling module engineered for the Procontrol P13 distributed control system. This module serves as a critical communication interface, enabling seamless data exchange between the Procontrol P13 architecture and external peripheral devices via the RS232 serial communication standard. It is a robust solution designed for high-availability industrial environments, including power generation and large-scale industrial automation.

Features

• Designed specifically for integration within the ABB Procontrol P13 system.
• Provides reliable RS232 serial communication connectivity.
• Supports diagnostic monitoring via desktop or mobile interface.
• High electrical isolation (1500 V DC) between the bus and serial interface for enhanced signal integrity.
• Wide operating temperature range suitable for demanding plant floor conditions.

Applications

This module is widely utilized in power plant automation, including fossil fuel, gas turbine, combined cycle, hydropower, and nuclear power facilities. It is essential for applications requiring reliable turbine control, open and closed-loop control, and substation management within the Procontrol P13 ecosystem.

Technical Specifications

Installation Guidelines

• Ensure the Procontrol P13 rack is powered down before inserting or removing the module to prevent electrical damage.
• Verify that the 24 V DC power supply meets the specified voltage and current requirements for the module.
• Use shielded RS232 cabling to minimize EMI/RFI interference in industrial environments.
• Ensure proper grounding of the module chassis to the system backplane to maintain electrical safety and signal shielding.
• Maintain adequate ventilation around the module to ensure operation within the specified temperature limits.

FAQ

What is the primary function of the HESG447440R1 70BK03C-E?

This module acts as a communication bridge, allowing the Procontrol P13 DCS to interface with external equipment using RS232 serial protocols.

Is this module compatible with other Procontrol systems?

The 70BK03C-E is specifically designed for the Procontrol P13 platform. Please consult your system documentation or hardware configuration manual to verify compatibility with your specific rack setup.

What should I do if the module is in an EOL state?

Even if the manufacturer has declared the part End-Of-Life, we continue to provide support and supply for this component to ensure the continued operation of your legacy Procontrol P13 installations.
