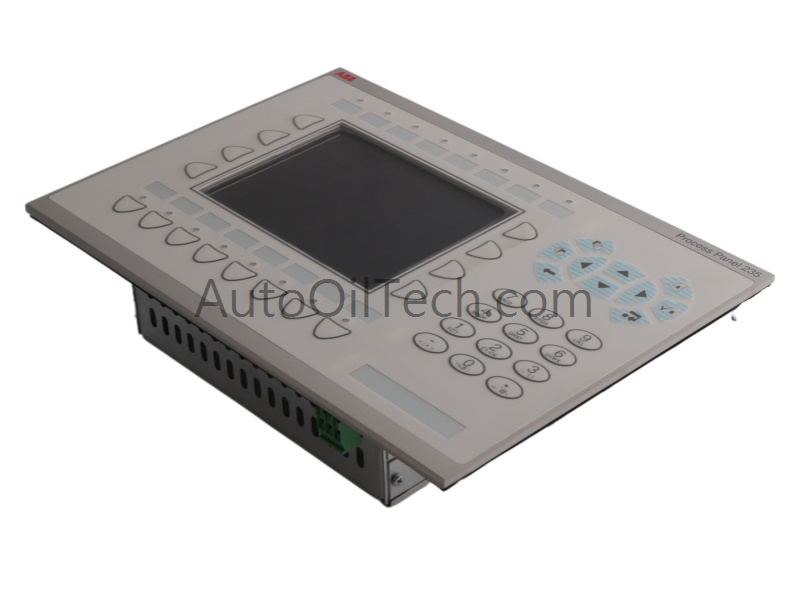

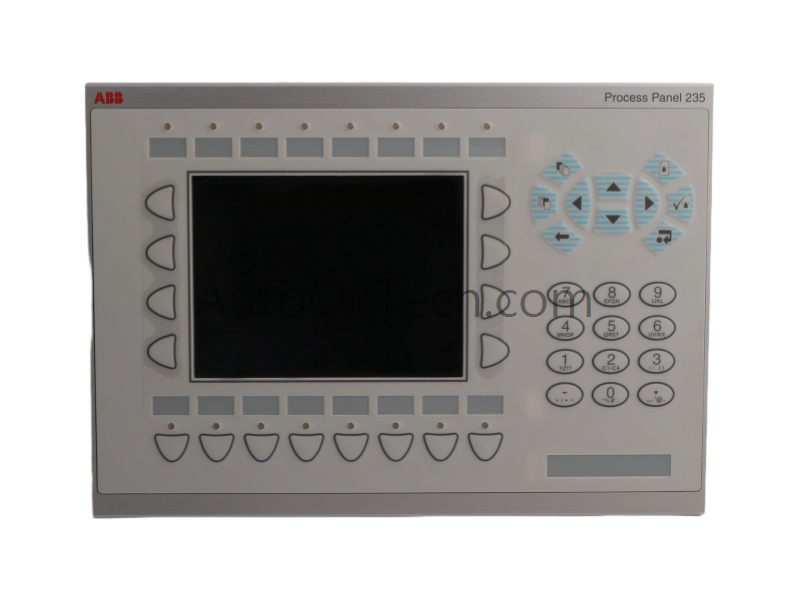

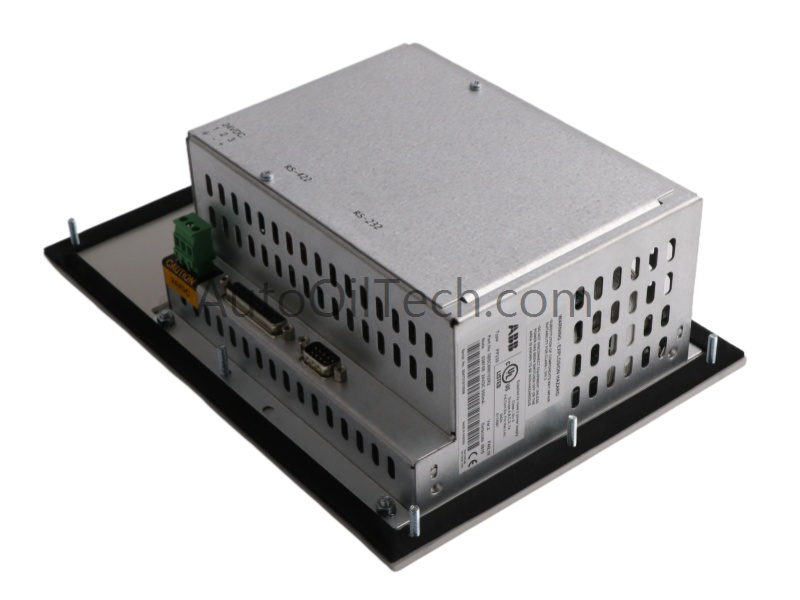

The ABB PP235 3BSC690102R2 Process Panel is an operator interface designed for industrial automation. Featuring a 5.7-inch TFT color LCD and compact construction, it provides reliable monitoring and control in manufacturing, energy, and chemical sectors.
Technical Specifications
Parameter
Value
Model Number
PP235 3BSC690102R2
Module Type
Process Panel
Manufacturer
ABB
Condition
Brand New
Range of Product
Advant OCSx800A
Weight
2.36 kg (catalog) / 1.48 kg (shipping)
Dimensions
14.5 × 18 × 15 cm (catalog) / 27.5 × 19.3 × 9.5 cm (shipping)
HS Code
8537101190
Minimum Order Quantity
1
Product Origin
Sweden
System Compatibility
DCS
Communication Service
Ethernet router
Display
5.7-inch TFT color LCD
Power Supply
24V DC, <25W consumption
Operating Temperature
0°C to +50°C
Compliance
Not RoHS 2 compliant
Replacement Option
PP836A (newer Panel 800 series)
Lifecycle Status
Active (legacy spare part)
Functional Description
The ABB PP235 3BSC690102R2 Process Panel provides a user-friendly operator interface with high visibility and stable operation. Designed as a spare part for systems marketed before July 22, 2017, it supports essential communication ports and flexible configuration options.
