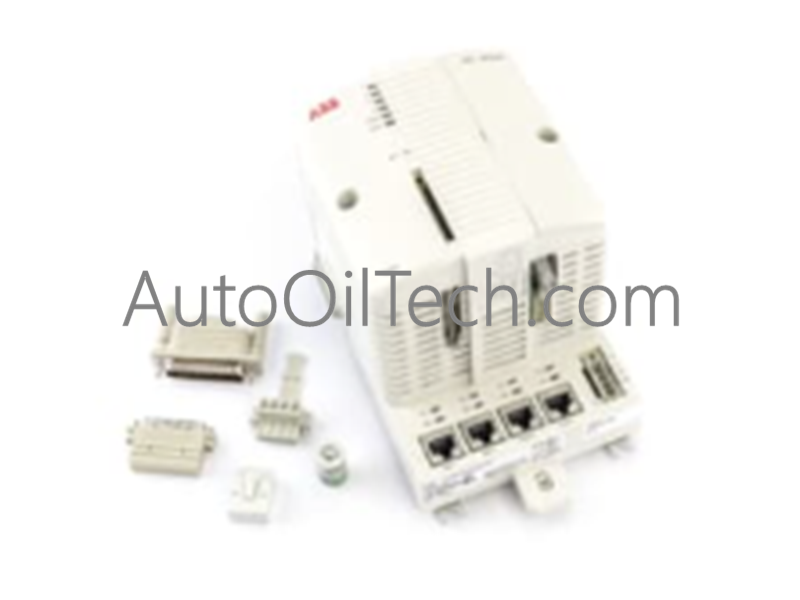

ABB PM863K02 3BSE088382R1 Redundant Processor Kit

Product Overview

The ABB PM863K02 (3BSE088382R1) is a high-integrity redundant processor kit designed for the AC 800M control system. This kit is certified for SIL3 (Safety Integrity Level 3), making it a critical component for safety-instrumented systems (SIS) in high-risk industrial environments. It provides the high-speed processing and fault-tolerant architecture required for complex safety functions within the ABB Ability™ System 800xA.

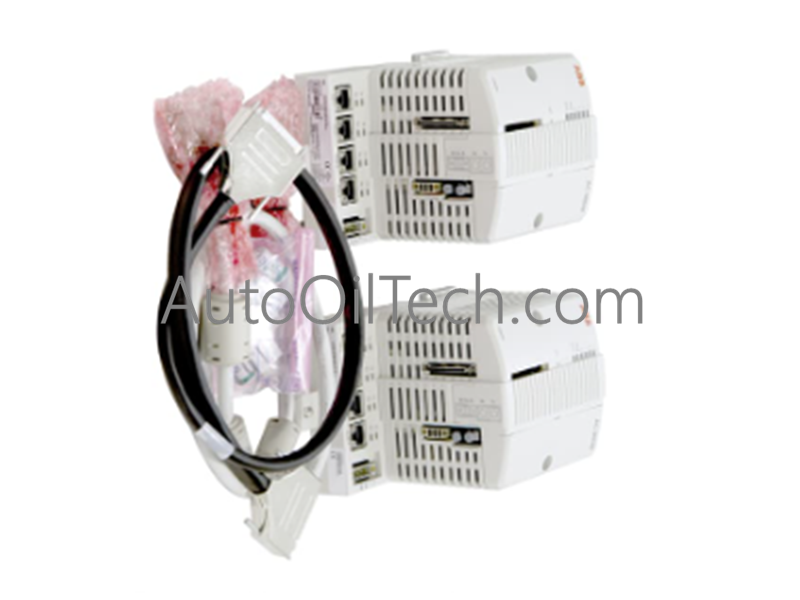

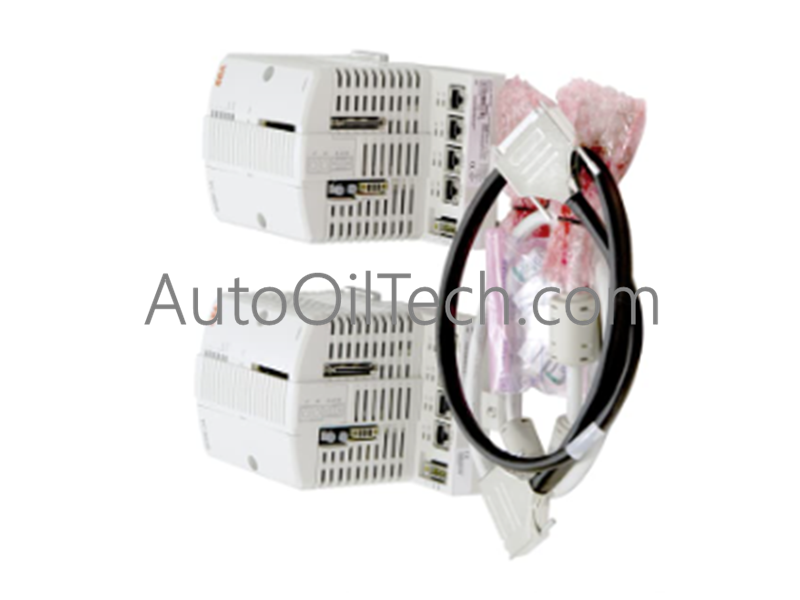

Kit Contents

• 2 x PM863K01: Safety Processor Units (96 MHz / 32 MB).

• 1 x TK850: CEX-bus expansion cable for communication extension.

• 1 x TK851: RCU-Link cable for redundancy synchronization between processors.

• Note: Firmware licenses are not included and must be ordered separately.

Technical Specifications

• Manufacturer: ABB

• Product ID: 3BSE088382R1

• Processor Speed: 96 MHz

• Onboard Memory: 32 MB SDRAM

• Safety Integrity Level: SIL3 Certified

• Software Compatibility: 800xA 6.1, Control Builder Safe 3, and later versions.

• Power Supply: 24 V DC

• Dimensions: 186 mm (H) x 238 mm (W) x 135 mm (D)

• Net Weight: 2.4 kg (total for the redundant pair)
