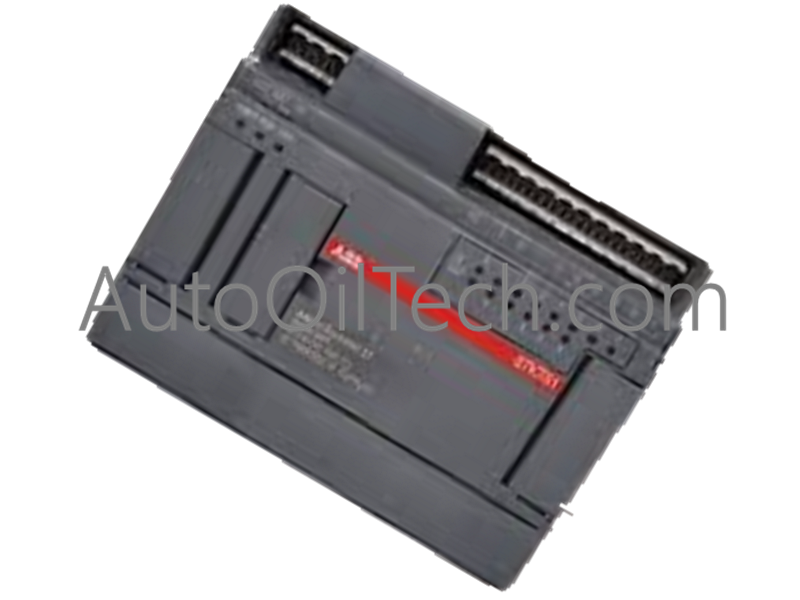

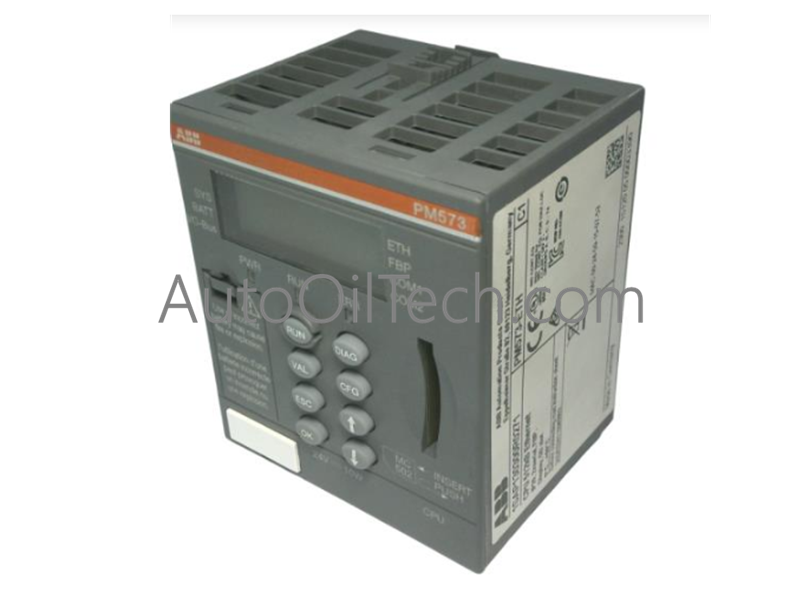

ABB PM573 1SAP130100R0100 central processing unit

Product Overview

The ABB PM573-ETH (1SAP130300R0271) is a performance-oriented central processing unit within the AC500 PLC family, specifically designed for applications requiring high-speed logic and native networking. With 512 kB of program memory, it handles significantly larger and more complex automation tasks than the entry-level PM571 series.

Technical Specifications

• Manufacturer: ABB

• Model Number: PM573-ETH

• Part Number: 1SAP130300R0271

• Program Memory: 512 kB

• User Data Memory: 512 kB (RAM)

• Processing Speed:

• Logic/Word: 0.05 ms / 1000 instructions

• Floating-point: 0.50 ms / 1000 instructions

• Communication Interfaces:

• Ethernet: 1 x RJ45 (Modbus TCP, TCP/IP, UDP)

• Serial: 2 x RS232 / RS485 (Configurable via terminal base)

• FBP: FieldBusPlug support

• Diagnostics: Integrated LCD Display + LED indicators

• Power Supply: 24 V DC (via Terminal Base)

• Expansion: Supports up to 10 local I/O modules and 4 communication couplers

• Dimensions: 76 mm (H) x 67.5 mm (W) x 62 mm (D)

Engineering & Network Advantages

The PM573-ETH serves as a powerful hub for distributed control:

• High-Speed Connectivity: The integrated Ethernet port allows for high-speed peer-to-peer communication between PLCs and provides a direct path for SCADA or HMI integration without needing extra cards.

• Advanced Instruction Set: Its ability to process floating-point math at high speeds makes it suitable for complex PID control and mathematical modeling in process automation.

• Scalable Modular Design: While powerful on its own, it can manage a vast local I/O network (up to 320 digital inputs) and communicate across multiple fieldbuses simultaneously using expansion couplers.

• Battery-Free Operation: The program is stored in non-volatile flash memory. However, an optional battery can be added to the terminal base to retain real-time clock (RTC) data and persistent variables.
