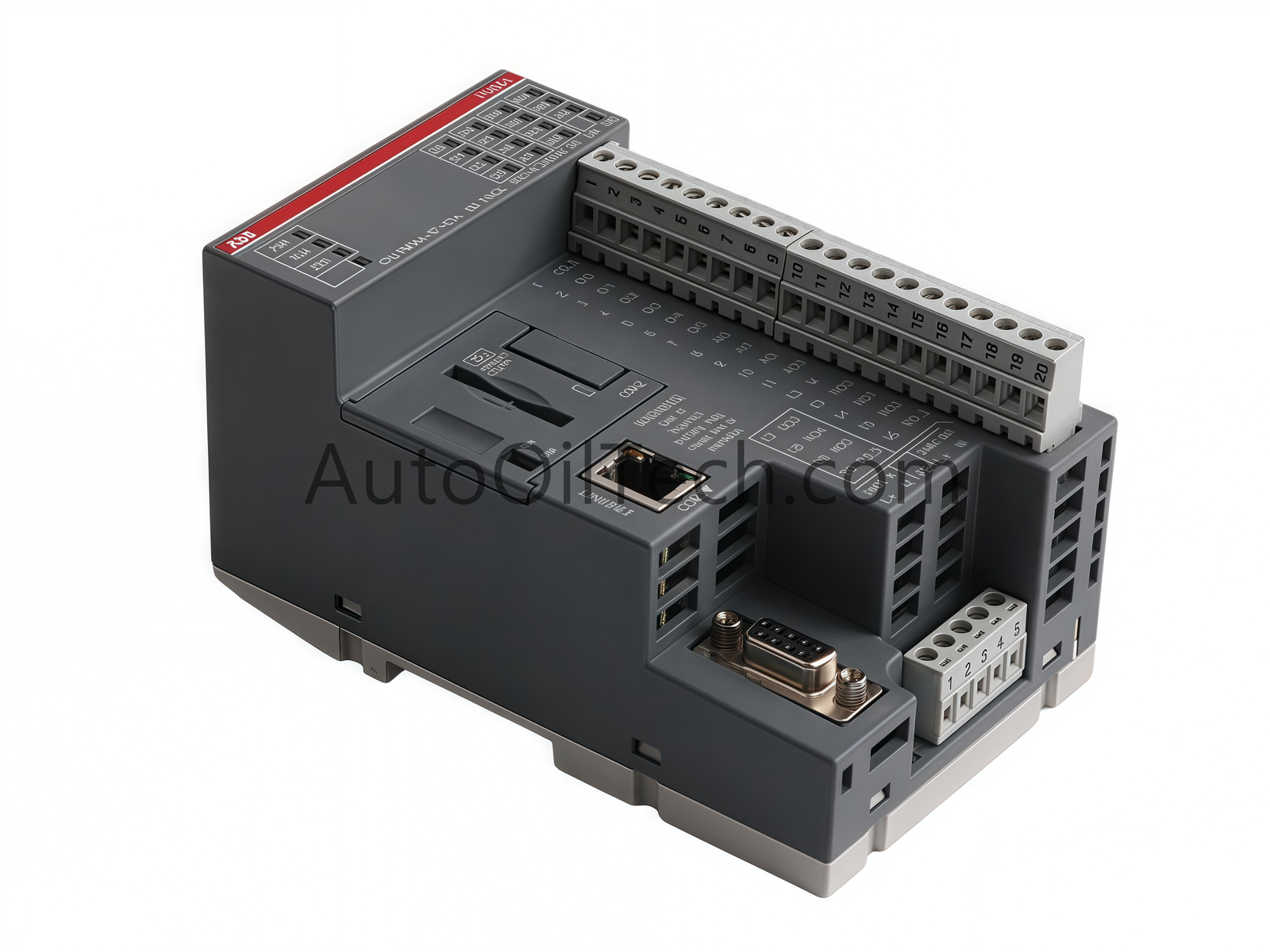

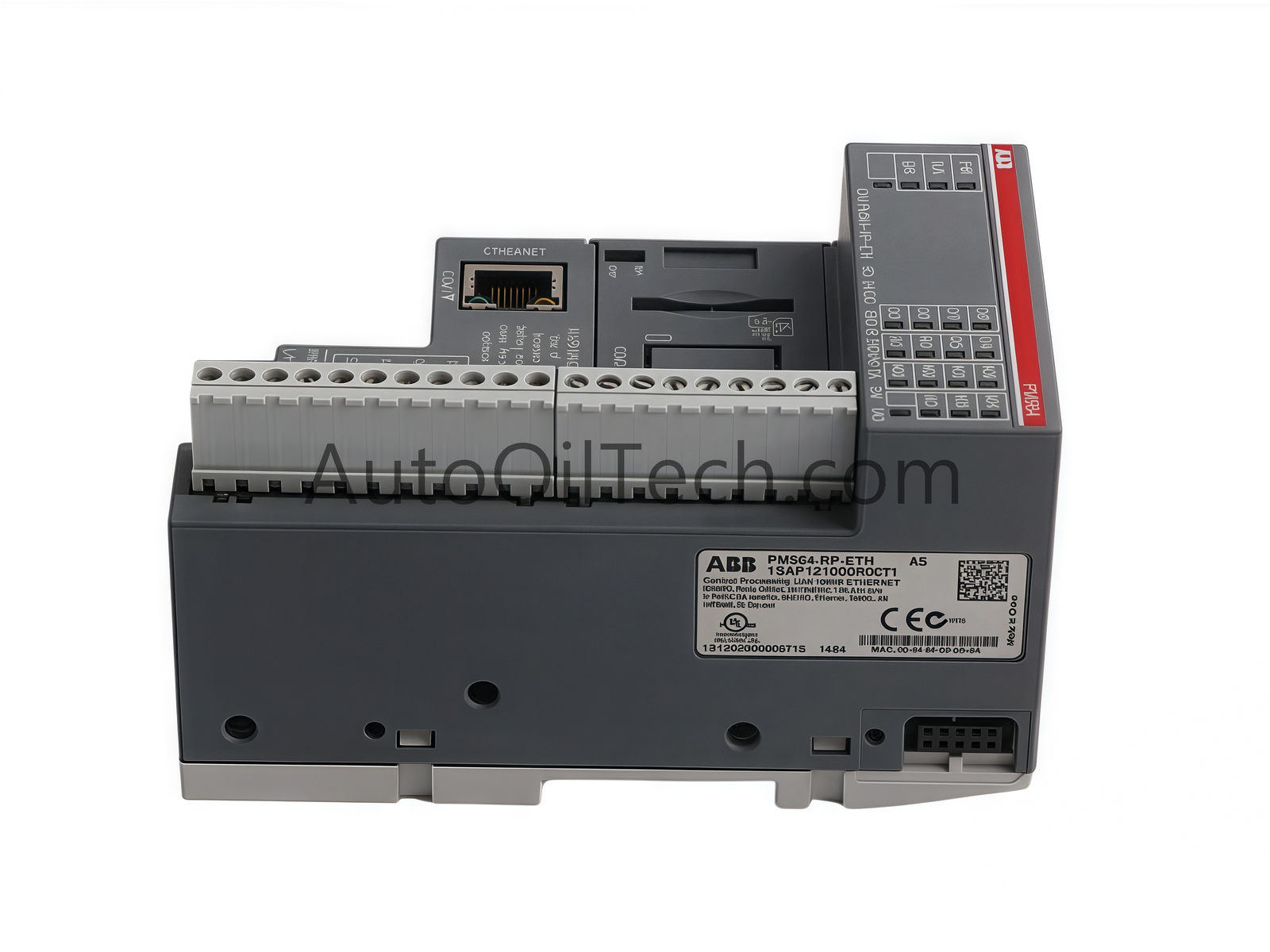

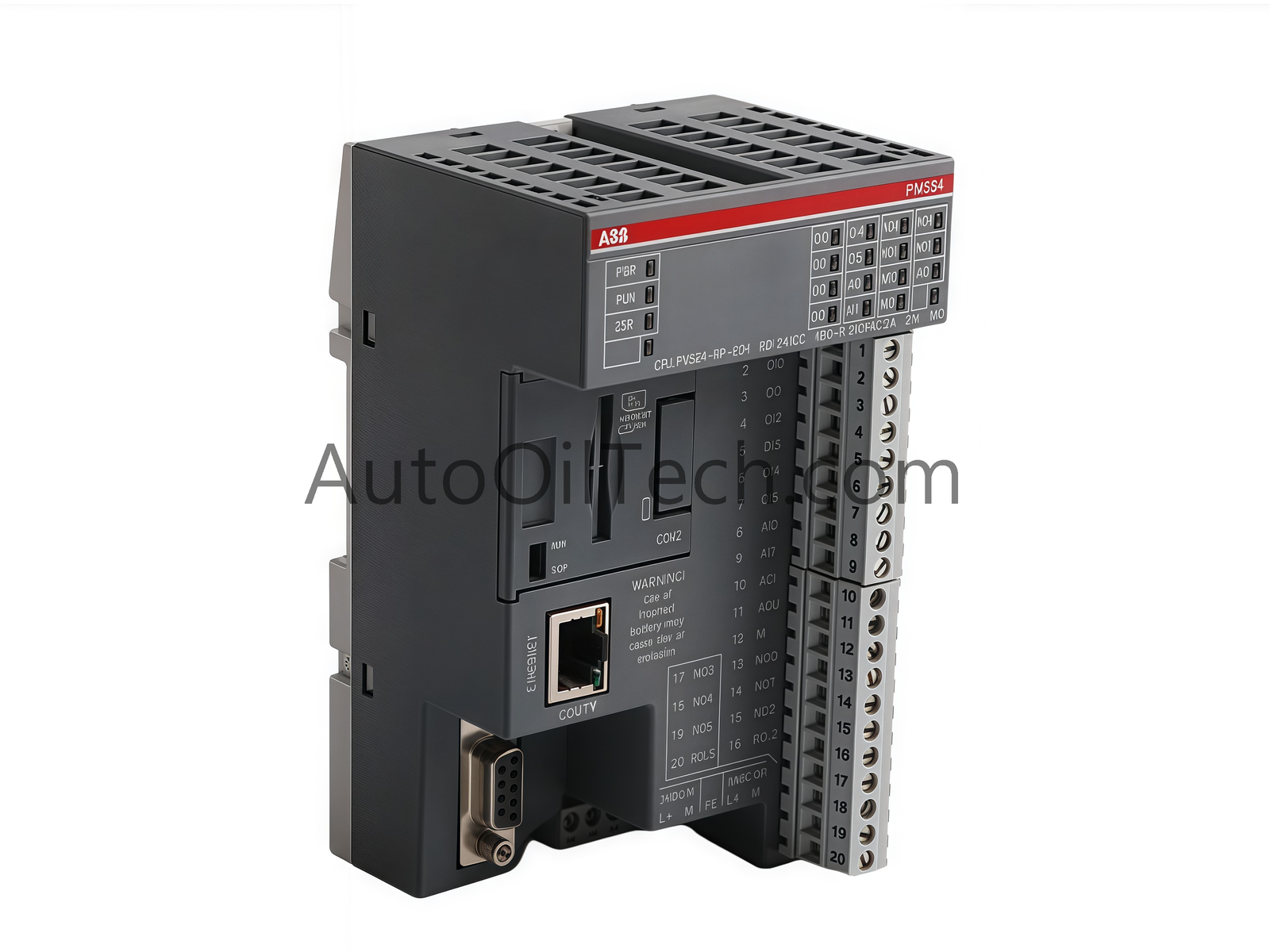

The ABB PM564-RP-ETH 1SAP121000R0071 Processor Module is a high‑performance PLC from the AC500 series, designed for industrial automation. It combines strong processing capability with flexible I/O options, making it ideal for machine control, process automation, and smart manufacturing systems.
Technical Specifications
Parameter
Value
Model Number
PM564-RP-ETH 1SAP121000R0071
Manufacturer
ABB
Module Type
Processor Module
System Compatibility
DCS / AC500 PLC series
Digital Inputs
6
Relay Outputs
6
Analog Inputs
2
Analog Outputs
1
Memory Capacity
128 kB
Communication Ports
1 × RS485, 2 × Option slots, Ethernet
Operating Voltage
24 V DC
Input Voltage Range
120–240 V AC
Power Consumption
4 W
Dimensions
13.5 × 8.2 × 7.4 cm
Weight
0.34 kg
HS Code
8537101190
Product Origin
Sweden
Condition
Brand New
Lead Time
In Stock
MOQ
1
Lifecycle Status
Active
Communication Service
Ethernet router
Functional Description
The ABB PM564-RP-ETH 1SAP121000R0071 offers flexible I/O with 6 digital inputs, 6 relay outputs, 2 analog inputs, and 1 analog output. Its Ethernet connectivity ensures seamless integration into industrial networks, supporting real‑time monitoring and control. With low power consumption (4 W) and robust construction, it delivers reliable performance in demanding environments.
Applications and Compatibility
The ABB PM564-RP-ETH 1SAP121000R0071 Processor Module is widely used in machine control, process automation, and Industry 4.0 systems. Engineers value its scalability, compact design, and compatibility with ABB’s AC500 PLC family, making it a future‑proof solution for modern automation architectures.
