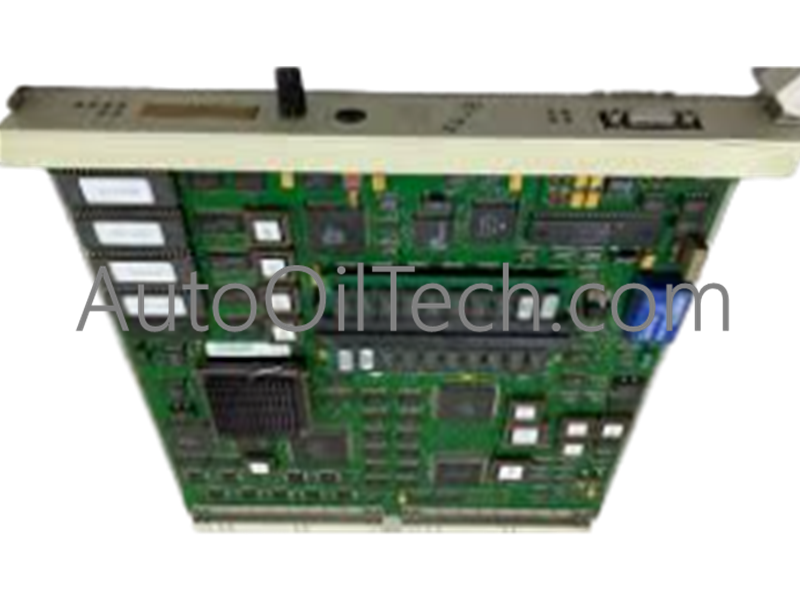

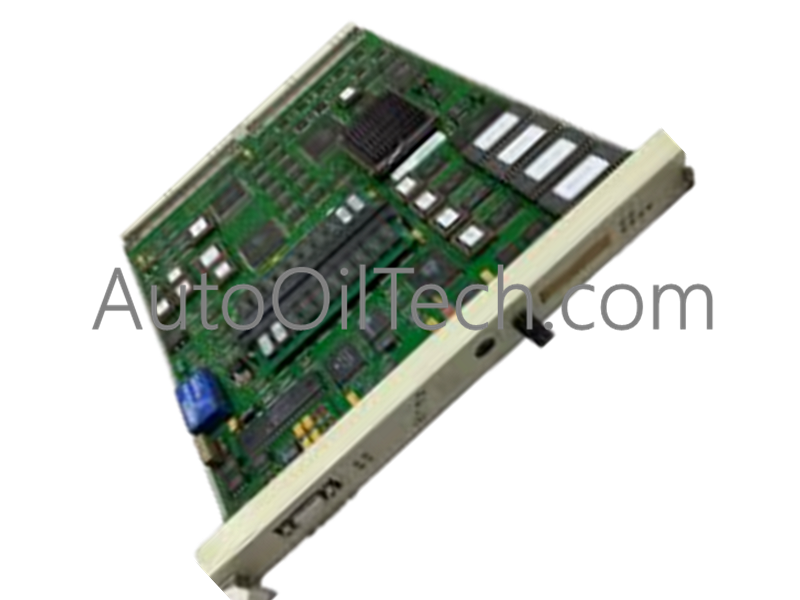

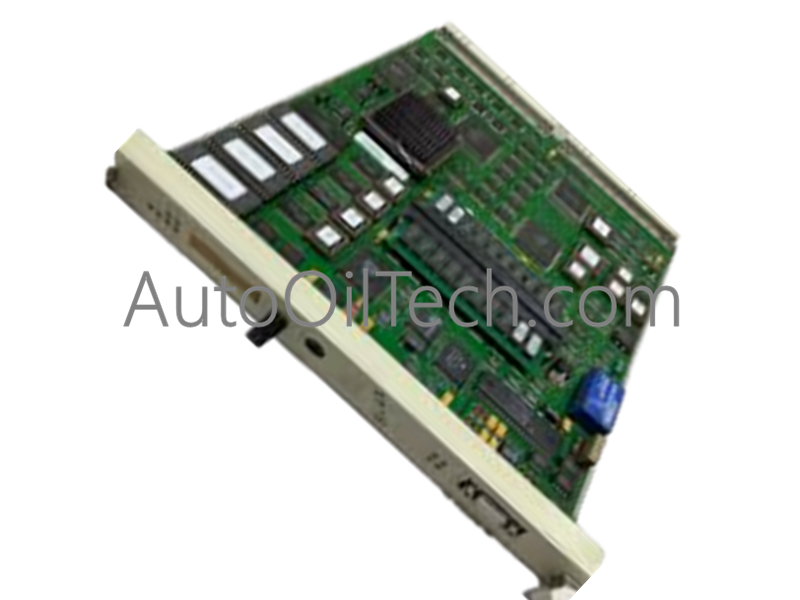

ABB PM511V16 3BSE011181R1 Advant Controller Central Unit

Product Overview

The ABB PM511V16 (3BSE011181R1) is a specialized high-performance processor module designed for the Advant Controller 400 (AC 400) distributed control system. As a central unit, it executes complex control logic, manages system communication, and coordinates the operation of various I/O clusters.

Technical Specifications

• Manufacturer: ABB

• Model Designation: PM511V16

• Part Number: 3BSE011181R1

• Product Type: Central Unit (Processor Module)

• Physical Dimensions: 274.5 mm (D) x 27 mm (H) x 270 mm (W)

• Net Weight: 0.8 kg

• Customs Tariff Number: 85389091

• HS Code: 853890 (Parts for electrical apparatus)

• Environmental Compliance: Following EU Directive 2011/65/EU (RoHS)

• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

• Country of Origin: Sweden

System Engineering & Reliability

The PM511V16 is a core component of the Advant OCS (Open Control System) architecture:

• Advanced Logic Execution: Capable of handling high-density control loops and complex mathematical algorithms required for process optimization and safety monitoring.

• High-Speed Backplane Integration: Designed to interface seamlessly with the Advant Controller subrack, ensuring rapid data exchange with communication couplers and I/O boards.

• Robust Thermal Management: The large surface area and thin profile are optimized for passive cooling within the controller cabinet, ensuring stable operation even under high computational loads.

• Sustainable Lifecycle: As part of the Advant series, this module supports long-term maintenance strategies, allowing facilities to maintain their DCS footprint without moving to entirely new platforms.
