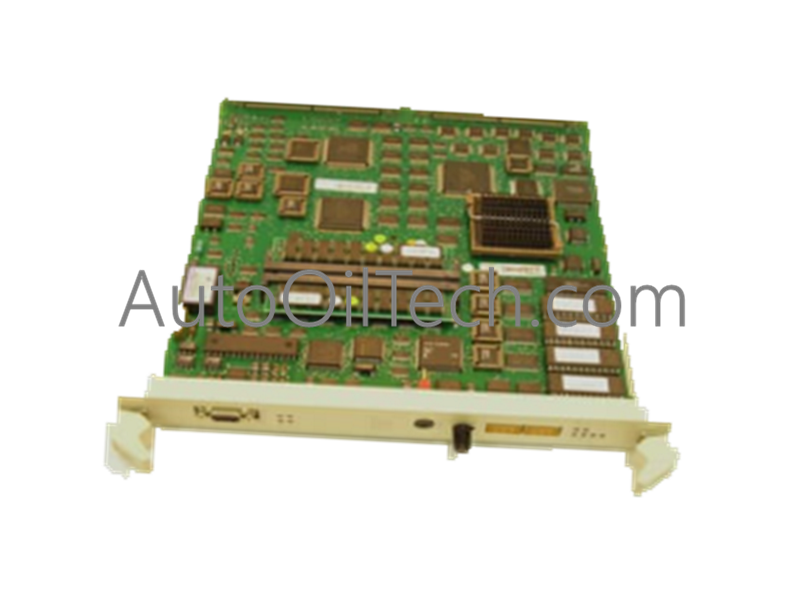

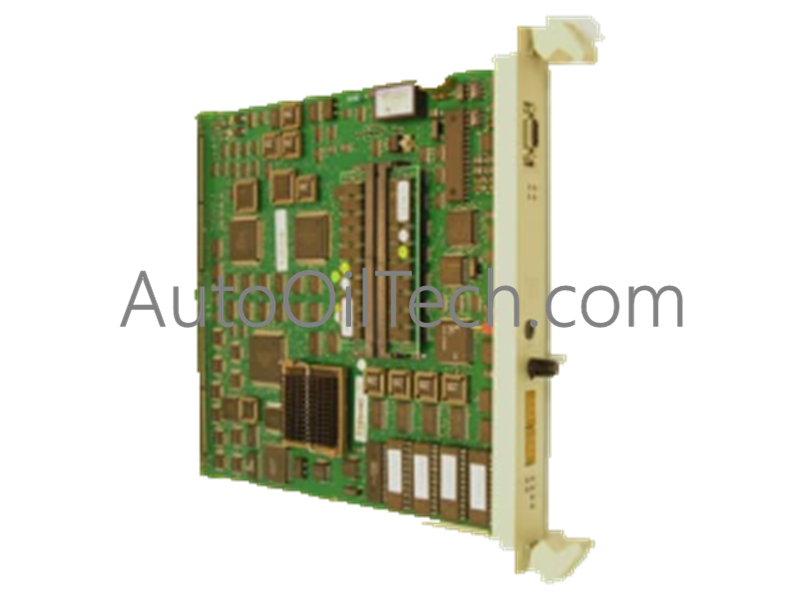

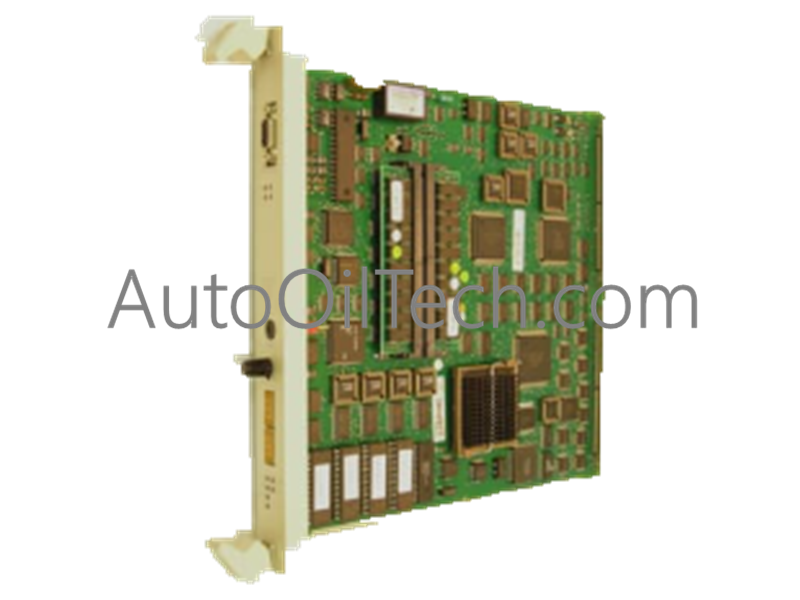

ABB PM511V08 3BSE011180R01 Processor Module

Product Description

The PM511V08 (3BSE011180R1) is a high-performance central processing unit module designed and manufactured by ABB as a primary controller core for the Advant Controller 400 (AC400) and Advant OCS distributed control systems.

• Manufacturer: ABB

• Product Series / Line: Advant Controller 400 (AC400) / Advant OCS

• Model Designation: PM511V08

• ABB Order Code / ID: 3BSE011180R1 (Replaces legacy ID 3BSE016437R1 / Formally references assembly block 3BSE011180R01)

• Device Classification: Central_Unit (Main Processor Module)

• Onboard Memory Capacity: 8 Mbyte Dynamic RAM

• Memory Protection Architecture: Error-Correcting Code (ECC) data validation

• Hardware Expansion Slot: 1 x PCMCIA slot for external flash memory backup cards

• Included Components: Includes 2 pieces of matching SIMM Memory Modules (Part No. 3BSC120004R2)

• Alternative Coated Variant: PM511MV08 (Marine classified / Coated version: 3BSE019191R1)

• Exchange Component System Reference: EXC3BSE011180R1

• Customs Tariff Number: 85389091

• UNSPSC Classification Code: 39120000

• WEEE Management Directive: Business-To-Business (Category 5: Small Equipment under 50 cm)

• Country of Origin: Sweden

• Product Net / Gross Weight: 0.76 Kg

Industrial Application Scenarios

The PM511V08 (3BSE011180R1) processor is heavily utilized in large-scale infrastructure environments where process interruption can lead to substantial financial or structural damage. Typical applications include thermal power plant boiler management, metal smelting furnace logistics, paper machine runtime lines, and marine chemical transport systems. In these environments, the CPU orchestrates hundreds of synchronized analog and digital input/output tasks over dedicated communication networks, executing high-speed control calculations and maintaining strict safety interlocks.
